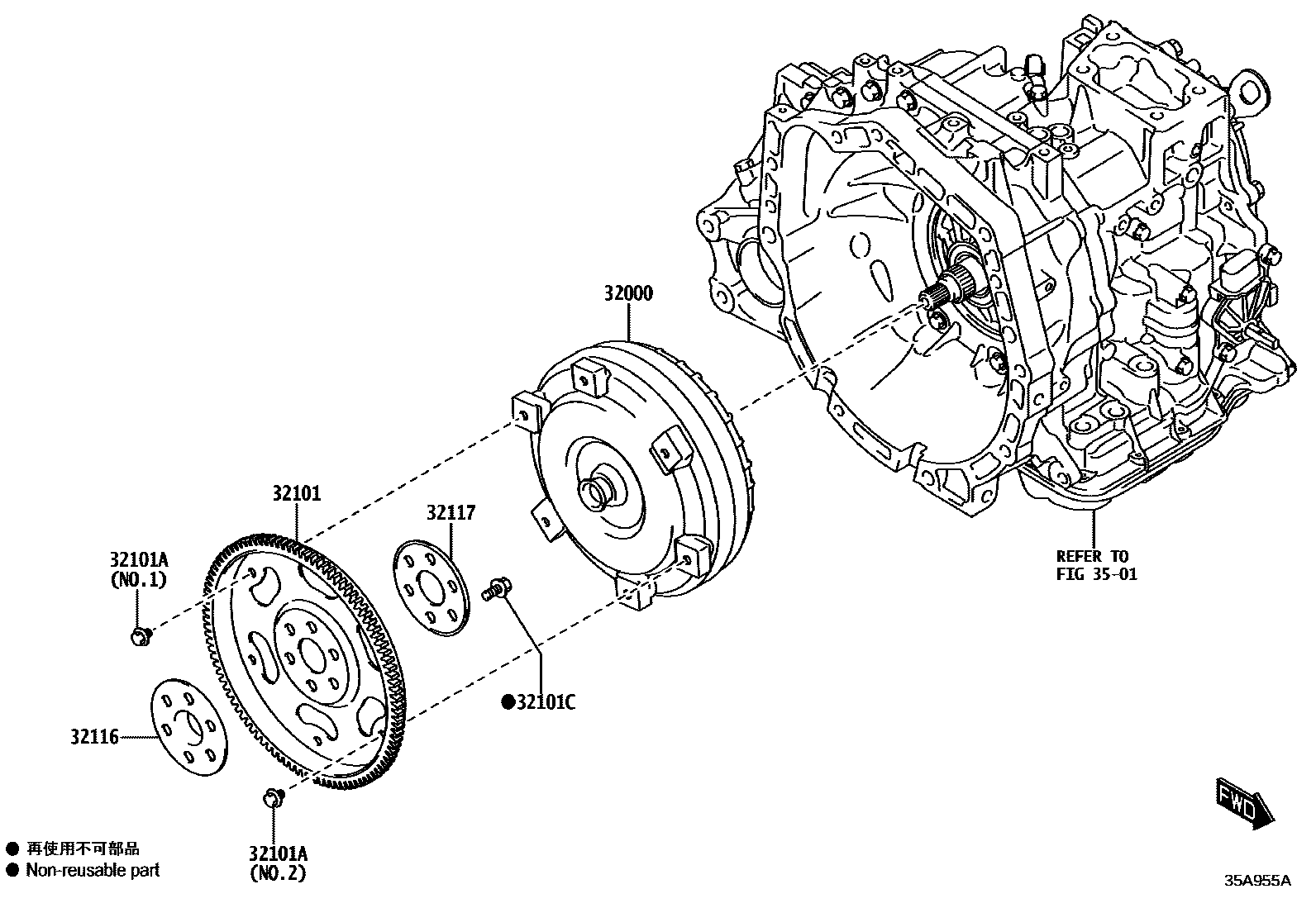

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-WC002iK15B..SUD202205-202310

POS.22

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-WC001iK15B..SUD202205-202310

POS.22

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90118-WC092iK15B..4FC..R..SA202107

*8-1.25PX9.5-7.0,POS.26

main90118-WC351iK15B..4FC..R..SA202107

*8-1.25PX9.5-7.5,POS.31

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90118-WC096iK15B..4FC..R..SA202107

POS.32

32116SPACER, DRIVE PLATE, FRONT

main32116-WC001iK15B..SUD202205-202310

POS.22

32117SPACER, DRIVE PLATE, REAR

main32117-WC001iK15B..SUD202205-202310

POS.22

3501

7 parts on this diagram · 2 diagrams in section
