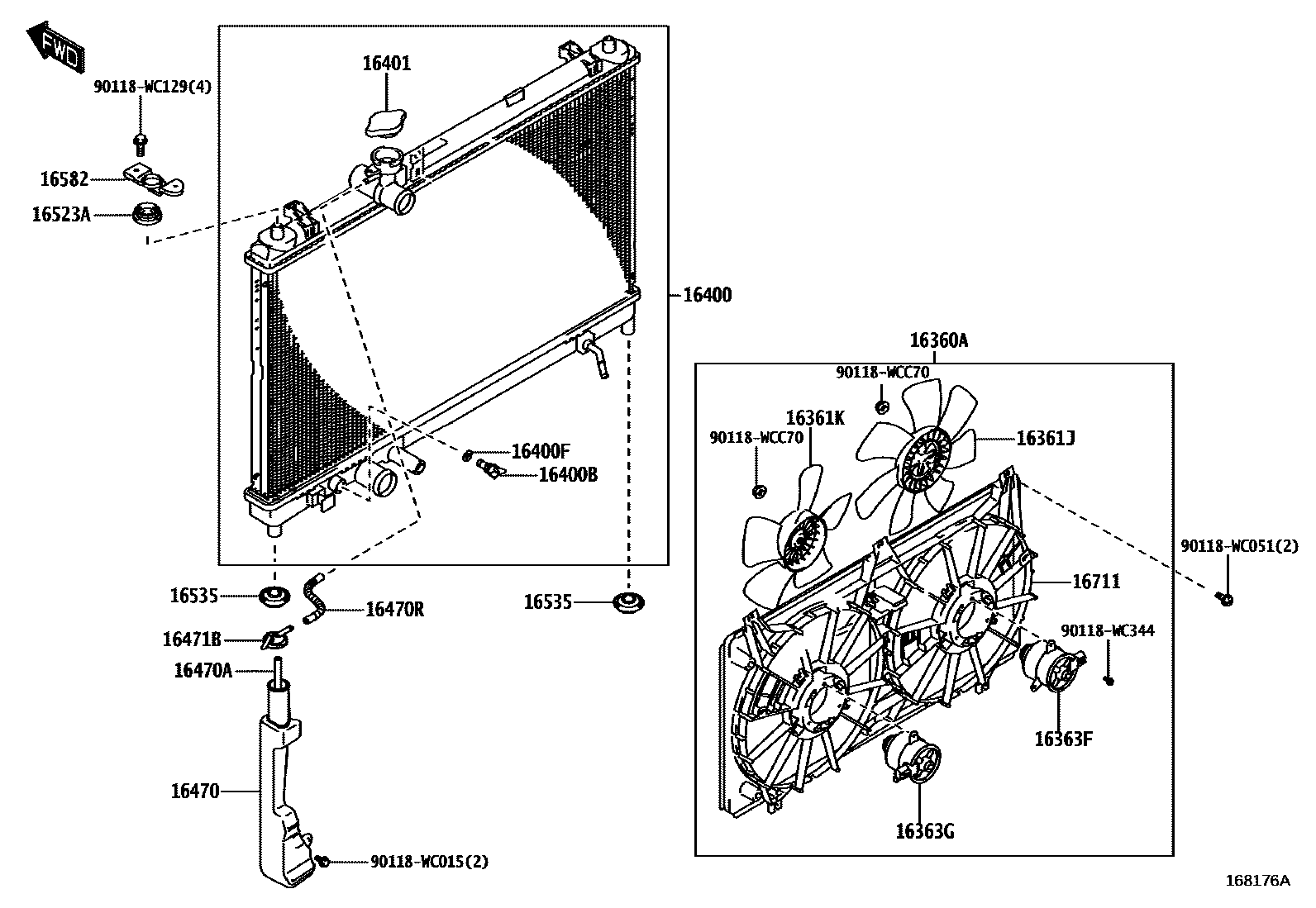

RADIATOR & WATER OUTLET

0001 1 0002 1

16360AFAN ASSY, W/MOTOR

16361JFAN, RH

16361KFAN, LH

16363FMOTOR, COOLING FAN, RH

16363GMOTOR, COOLING FAN, LH

16400RADIATOR ASSY

main16492-WC001

main16417-WC001

main16400-WC006

main16400-WC007

16400BPLUG, RADIATOR DRAIN COCK

16400FPACKING(FOR RADIATOR DRAIN COCK)

16401CAP SUB-ASSY, RADIATOR

main16401-WC001

16470TANK ASSY, RADIATOR RESERVE

main16470-WC003

main90118-WCC97

main90118-WCC98

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471BCAP, RESERVE TANK

16523ACUSHION, RADIATOR SUPPORT

16535SUPPORT, RADIATOR, LOWER

main90118-WC349

main90118-WCD17

16582BRACKET, RADIATOR, NO.1

main90118-WCD16

16711SHROUD, FAN

main16711-WC003

90118WC015

main90118-WC015

90118WC051

main90118-WC051

90118WC129

main90118-WC129

90118WC344

main90118-WC344

90118WCC70

main90118-WCC70

22 parts on this diagram · 2 diagrams in section
