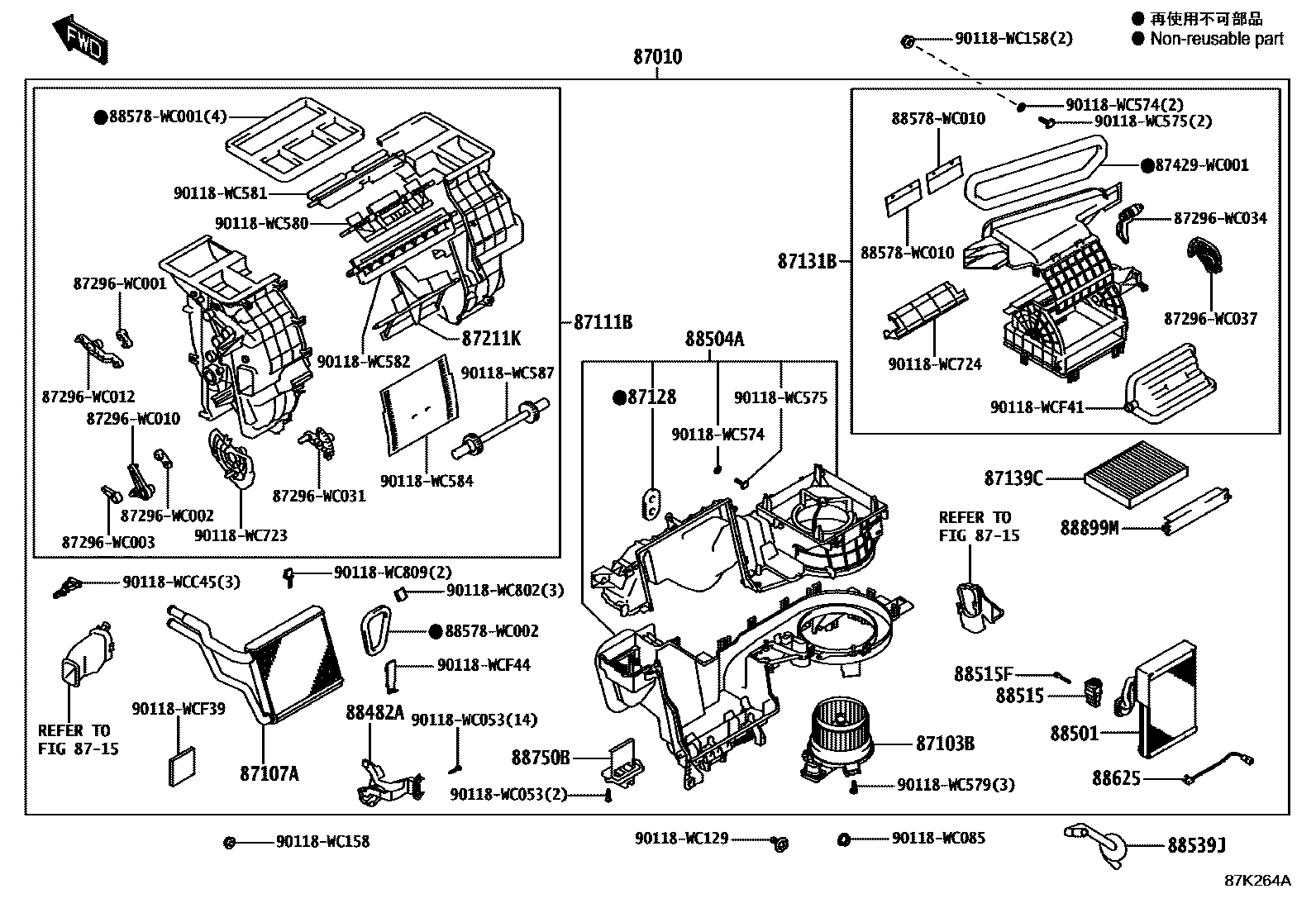

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1MANUAL AIR CONDITIONER 0004 1AUTO AIR CONDITIONER 0005 1REAR AIR CONDITIONER 0006 1REAR AIR CONDITIONER

87010UNIT ASSY, AIR CONDITIONER

main87010-WC017iK15B..I..AFR202108

POS.1

main87010-WC018iK15B..5F..S..AFR202108

POS.4,TRIM03&ZHJ

main87010-WC019iK15B..SUD202205-202311

POS.11

main87010-WC020iK15B..I..SA202108

POS.24

main87010-WC021iK15B..5F..S..SA202108

POS.15

main87010-WC022iK15B..4FC..R..SA202108

POS.16

main87010-WC031iK15B..5F..S..SA202207

POS.25

main87010-WC032iK15B..4FC..R..SA202207

POS.26

main87010-WC033iK15B..5F..S..AFR202207

POS.33,TRIM08&ZQK

main87010-WC034iK15B..5F..R..AFR202207

POS.37

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-WC009iK15B..4FC..R..SA202108

POS.14

main87103-WC010iK15B..5F..S..AFR202108

POS.2

main87103-WC016iK15B..I..SA202108

POS.24

main87103-WC017iK15B..I..AFR202108

POS.1

main87103-WC018iK15B..5F..R..AFR202108

POS.20

main87103-WC032iK15B..4FC..R..SA202207

POS.26

main87103-WC033iK15B..4FC..S..AFR202207

POS.28

87107AUNIT SUB-ASSY, HEATER RADIATOR

main90118-WCF36iK15B..4FC..S..SA202108

POS.24

main90118-WCF37iK15B..5F..S..AFR202108

POS.28

main90118-WCF38iK15B..5F..R..AFR202108

POS.37

87111BCASE, HEATER

main87301-WC005iK15B..4FC..R..SA202108

POS.14

main87301-WC006iK15B..5F..S..AFR202108

POS.4,TRIM01&ZYA

main87301-WC007iK15B..5F..R..AFR202108

POS.37

main87301-WC008iK15B..5F..S..SA202108

POS.24

87128GROMMET, HEATER

main87128-WC001iK15B..4FC..S..AFR202108

POS.37

87131BCASE, HEATER BLOWER

main88504-WC007iK15B..5F..S..SA202108

POS.24

main88504-WC008iK15B..4FC..R..SA202108

POS.14

main88504-WC009iK15B..5F..S..AFR202108

POS.28

main88504-WC010iK15B..SUD202205-202311

POS.23

87139CFILTER, CLEAN AIR

main87139-WC001iK15B..4FC..S..AFR202108

STANDARD,POS.28

8715

87211KDUCT, AIR

main87201-WC001iK15B..SUD202205-202311

POS.17

88482ACOVER

main87114-WC004iK15B..4FC..S..SA202108

POS.24

main87114-WC005iK15B..4FC..S..AFR202108

POS.37

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-WC001iK15B..4FC..R..SA202108

POS.14

main88501-WC006iK15B..5F..S..AFR202108

POS.28

main88501-WC007iK15B..I..SA202108

POS.24

main88501-WC008iK15B..I..AFR202108

POS.1

88504ACASE SUB-ASSY, BLOWER

main88502-WC017iK15B..SUD202205-202311

POS.17

main88502-WC020iK15B..I..AFR202108

POS.1

main88502-WC021iK15B..I..SA202108

POS.24

main88502-WC023iK15B..4FC..R..SA202108

POS.14

88515VALVE, COOLER EXPANSION

main88515-WC001iK15B..4FC..S..AFR202108

POS.37

main88515-WC004iK15B..I..AFR202108

POS.24

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90118-WC578×2iK15B..4FC..S..AFR202108

POS.37

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-WC008iK15B..SUD202205-202311

POS.17

88539JHOSE, DRAIN COOLER

main88539-WC006iK15B..5F..S..SA202108

POS.24

main88539-WC007iK15B..4FC..S..AFR202108

POS.37

88625THERMISTOR, COOLER, NO.1

main88625-WC001iK15B..4FC..S..AFR202108

POS.37

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main87138-WC001iK15B..SUD202205-202311

POS.17

main87138-WC002iK15B..4FC..S..AFR202108

POS.32

88899MPLATE, COVER(FOR AIR FILTER)

main90118-WC588iK15B..SUD202205-202311

POS.17

87296WC001WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC001

87296WC002WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC002

87296WC003WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC003

87296WC010WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC010

87296WC012WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC012

87296WC031WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC031

87296WC034WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC034

87296WC037WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC037

87429WC001PIPE, COMBUSTION HEATER OUTLET

main87429-WC001

88578WC001PAKING, COOLER AIR DUCT

main88578-WC001

88578WC002PAKING, COOLER AIR DUCT

main88578-WC002

88578WC010PAKING, COOLER AIR DUCT

main88578-WC010

90118WC053

main90118-WC053

90118WC085

main90118-WC085

90118WC129

main90118-WC129

90118WC158

main90118-WC158

90118WC574

main90118-WC574

90118WC575

main90118-WC575

90118WC579

main90118-WC579

90118WC580

main90118-WC580

90118WC581

main90118-WC581

90118WC582

main90118-WC582

90118WC584

main90118-WC584

90118WC587

main90118-WC587

90118WC723

main90118-WC723

90118WC724

main90118-WC724

90118WC802

main90118-WC802

90118WC809

main90118-WC809

90118WCC45

main90118-WCC45

90118WCF39

main90118-WCF39

90118WCF41

main90118-WCF41

90118WCF44

main90118-WCF44

51 parts on this diagram · 6 diagrams in section
