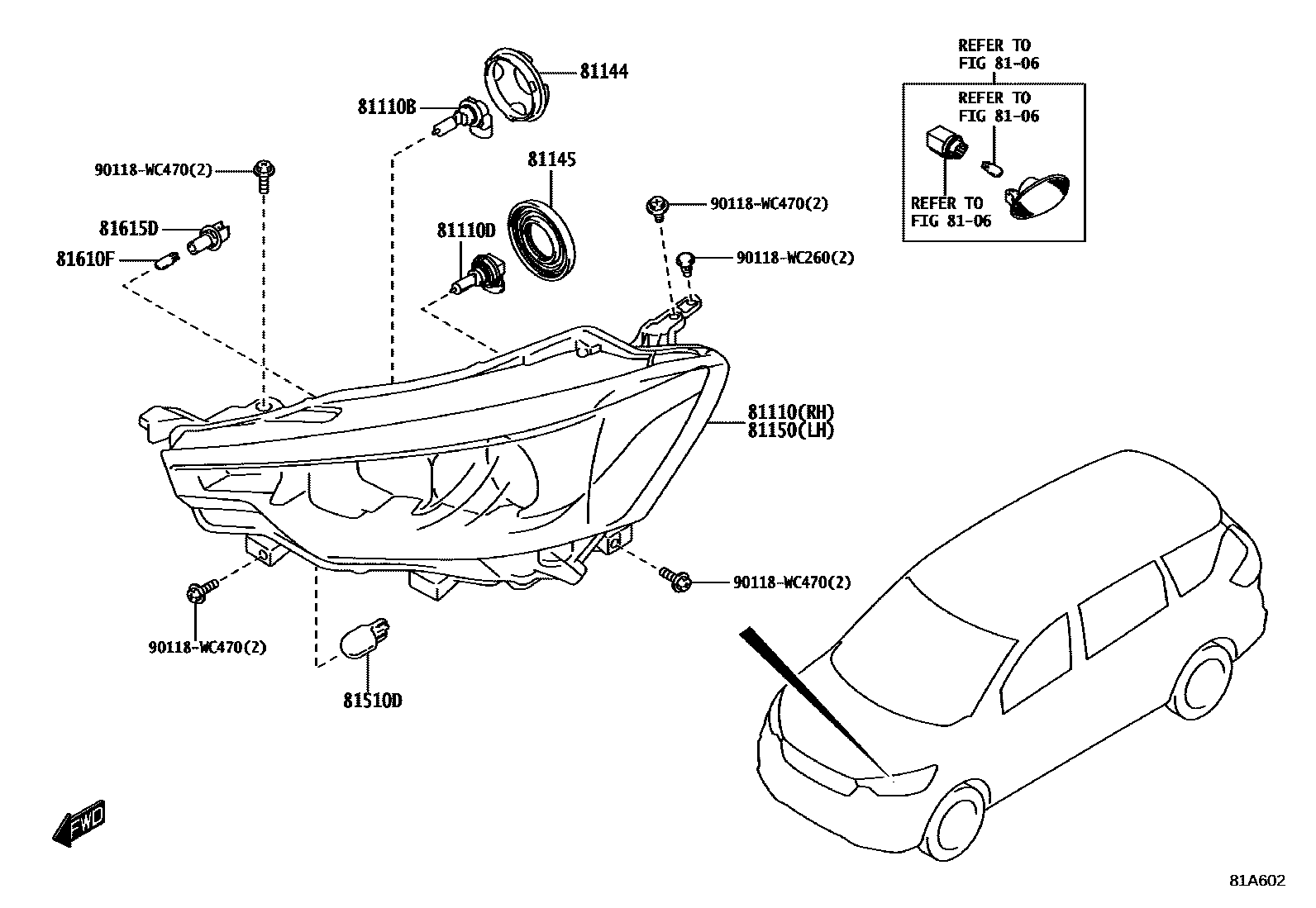

HEADLAMP

8106

81110HEADLAMP ASSY, RH

main81130-WC006iK15B..4FC..R..SA202108

POS.24

sub81130-WC031

main81130-WC007iK15B..5F..S..AFR202108

POS.29

sub81130-WC032

81110BBULB(FOR HEADLAMP, NO.1)

main90118-WCE79×2iK15B..5F..S..AFR202108

12V 60W,POS.6

81110DBULB(FOR HEADLAMP, NO.2)

main90118-WCF93×2iK15B..5F..S..AFR202108

12V 55W,POS.21

81144COVER, HEADLAMP, NO.1

main81135-WC003×2iK15B..SUD202205-202311

POS.31

81145COVER, HEADLAMP, NO.2

main81128-WC002×2iK15B..5F..S..AFR202108

POS.29

81150HEADLAMP ASSY, LH

main81170-WC009iK15B..4FC..R..SA202108

POS.24

sub81170-WC031

main81170-WC010iK15B..5F..S..AFR202108

POS.29

sub81170-WC032

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90118-WCD12×2iK15B..5F..S..AFR202108

12V 21W,POS.5

81610FBULB(FOR CLEARANCE LAMP)

main90118-WCD08×2iK15B..5F..S..AFR202108

12V 5W,POS.39

81615DSOCKET, CLEARANCE LAMP

main81615-WC002×2iK15B..SUD202205-202311

POS.31

90118WC260

main90118-WC260

90118WC470

main90118-WC470

12 parts on this diagram · 1 diagram in section
