SEAT BELT & CHILD RESTRAINT SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-WC002iK15B..SUD202205-202311

POS.23

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-WC002iK15B..5F..S..AFR202108

POS.32

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73200-WC004iK15B..5F..S..AFR202108

POS.8

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73200-WC004iK15B..5F..S..AFR202108

POS.8

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-WC005×2iK15B..SUD202205-202311

POS.23

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-WC014iK15B..5F..S..AFR202108

POS.4

sub73210-WC041

main73210-WC015iK15B..5F..S..SA202108

POS.8

sub73210-WC042

main73210-WC016iK15B..4FC..R..AFR202108

POS.3

sub73210-WC038

main73210-WC017iK15B..4FC..S..SA202108

POS.26

sub73210-WC040

main73210-WC028iK15B..5F..S..AFR202207

POS.32

sub73210-WC039

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-WC014iK15B..5F..S..SA202108

POS.8

sub73220-WC040

main73220-WC015iK15B..5F..S..AFR202108

POS.4

sub73220-WC041

main73220-WC016iK15B..5F..S..AFR202108

POS.3

sub73220-WC039

main73220-WC017iK15B..5F..R..SA202108

POS.9

sub73220-WC037

main73220-WC028iK15B..5F..S..SA202207

POS.26

sub73220-WC038

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73380-WC003iK15B..5F..S..AFR202108

POS.8

sub73380-WC012

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-WC006iK15B..5F..S..AFR202108

POS.8

sub73360-WC018

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-WC003iK15B..5F..S..AFR202108

POS.8

sub73370-WC010

73560BELT ASSY, REAR NO.2 SEAT, OUTER RH

main73560-WC001iK15B..5F..S..AFR202108

POS.8

sub73560-WC004

90118WC103

main90118-WC103

90118WC107

main90118-WC107

90118WC108

main90118-WC108

90118WC165

main90118-WC165

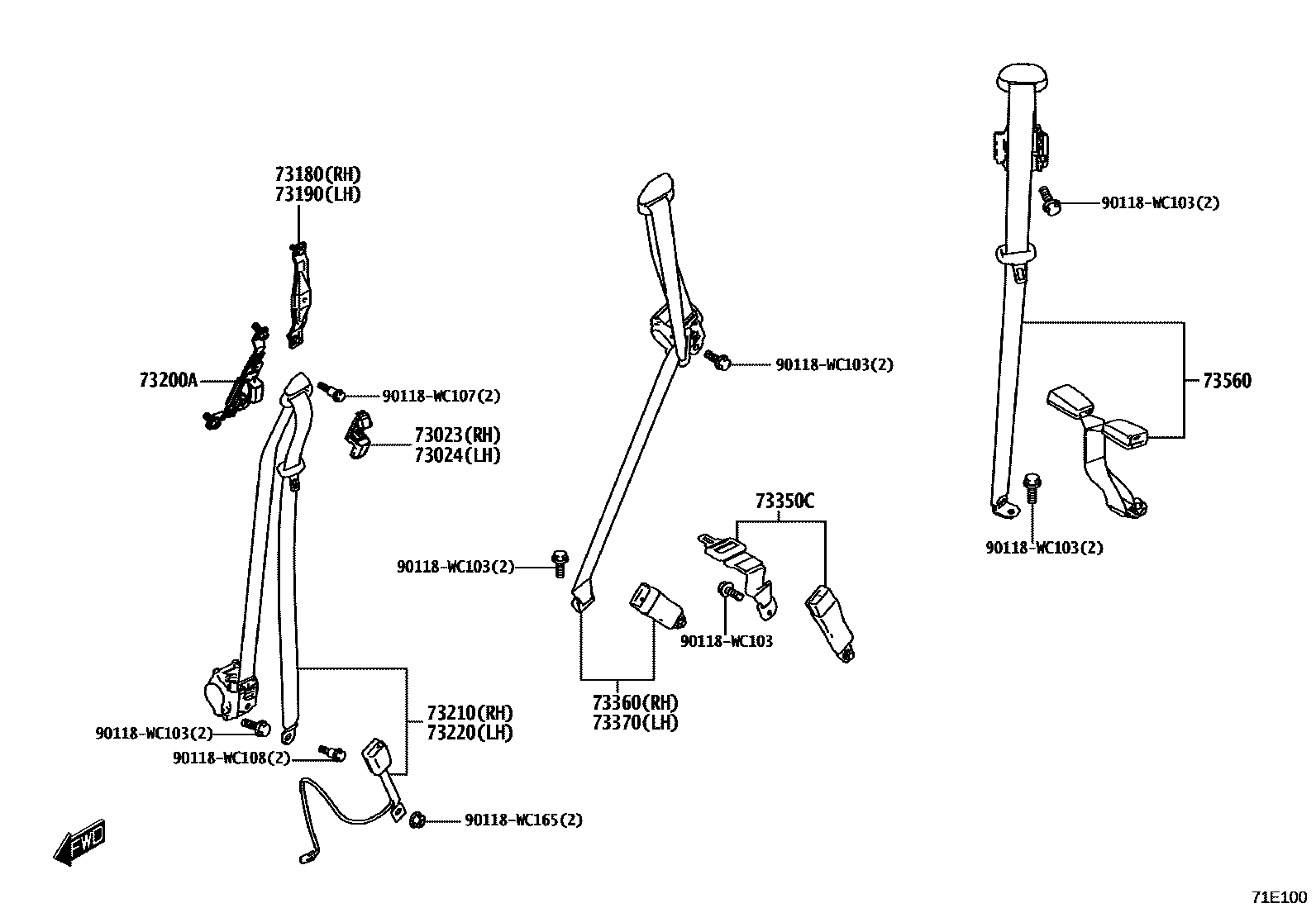

15 parts on this diagram · 1 diagram in section
