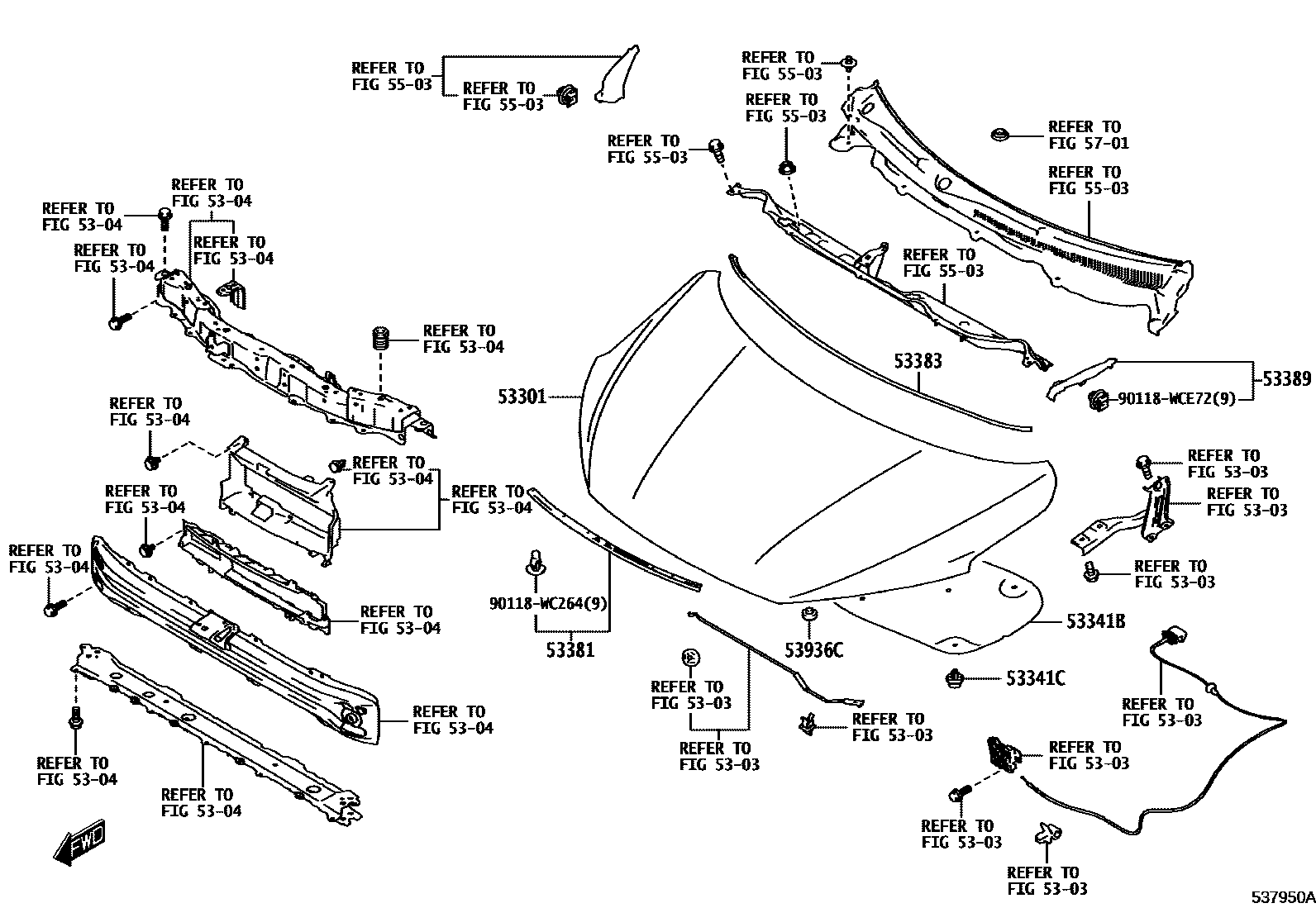

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

5303

5304

53301HOOD SUB-ASSY

main53301-WC005iK15B..5F..S..SA202108

POS.30

53341BINSULATOR, HOOD

main53341-WC004iK15B..SUD202205-202311

POS.11

53341CCLIP(FOR HOOD INSULATOR)

main90118-WCA24×10iK15B..SUD202205-202311

POS.11

53381SEAL, HOOD TO RADIATOR SUPPORT

main53395-WC001iK15B..5F..S..SA202108

POS.30

53383SEAL, HOOD TO COWL TOP

main53383-WC005iK15B..SUD202205-202311

POS.11

53389SEAL, HOOD TO COWL TOP SIDE

main53389-WC003iK15B..SUD202205-202311

POS.11

53936CCUSHION

main90118-WC222×2iK15B..5F..S..SA202108

POS.30

5503

5701

90118WC264

main90118-WC264

90118WCE72

main90118-WCE72

13 parts on this diagram · 4 diagrams in section
