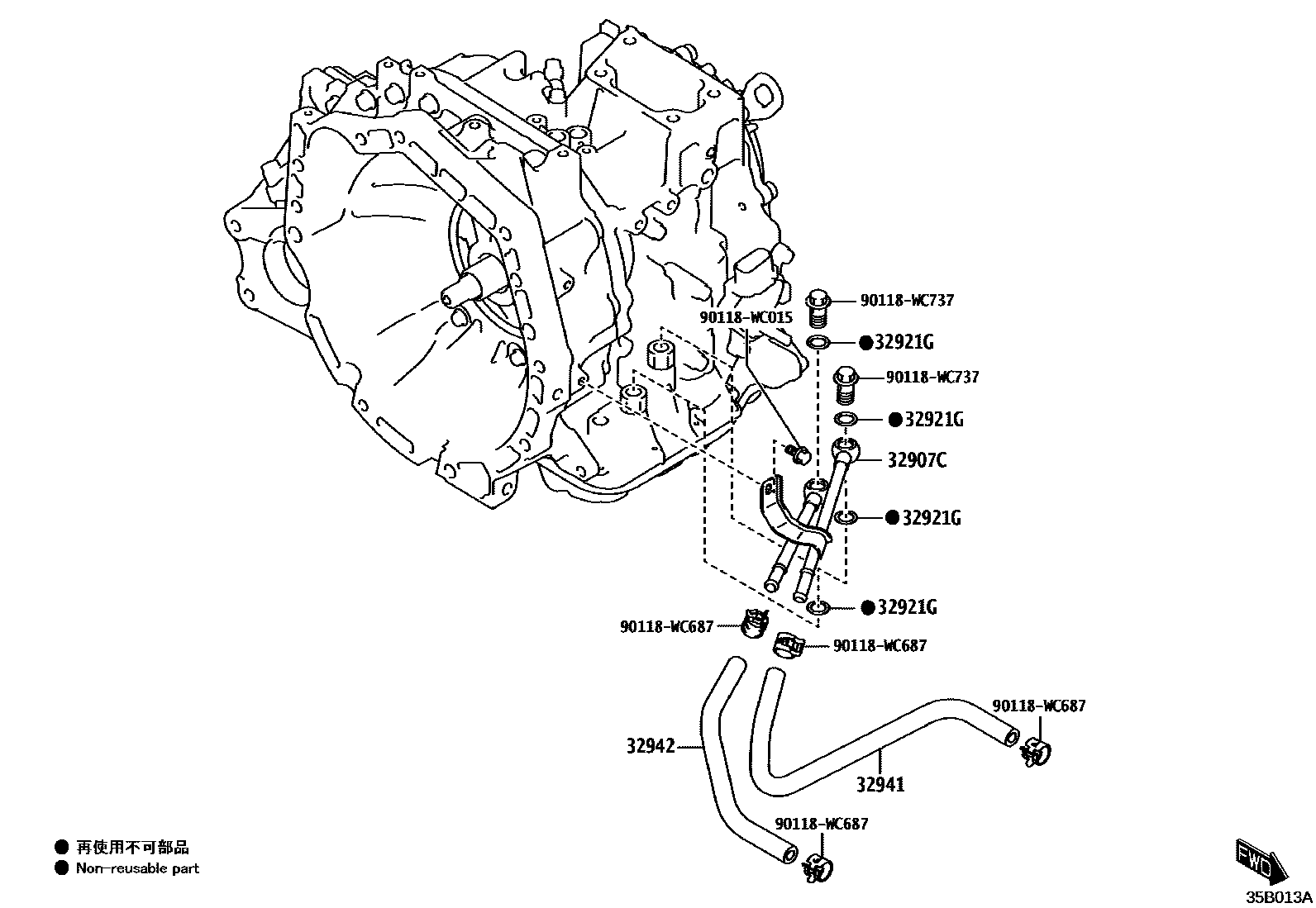

OIL COOLER & TUBE (ATM)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32904-WC001iK15B..SUD202205-202311

POS.11

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90118-WC736×4iK15B..SUD202205-202311

POS.11

32941HOSE, OIL COOLER INLET, NO.1

main32941-WC002iK15B..SUD202205-202311

POS.11

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-WC002iK15B..SUD202205-202311

POS.11

90118WC015

main90118-WC015

90118WC687

main90118-WC687

90118WC737

main90118-WC737

7 parts on this diagram · 1 diagram in section
