WATER PUMP

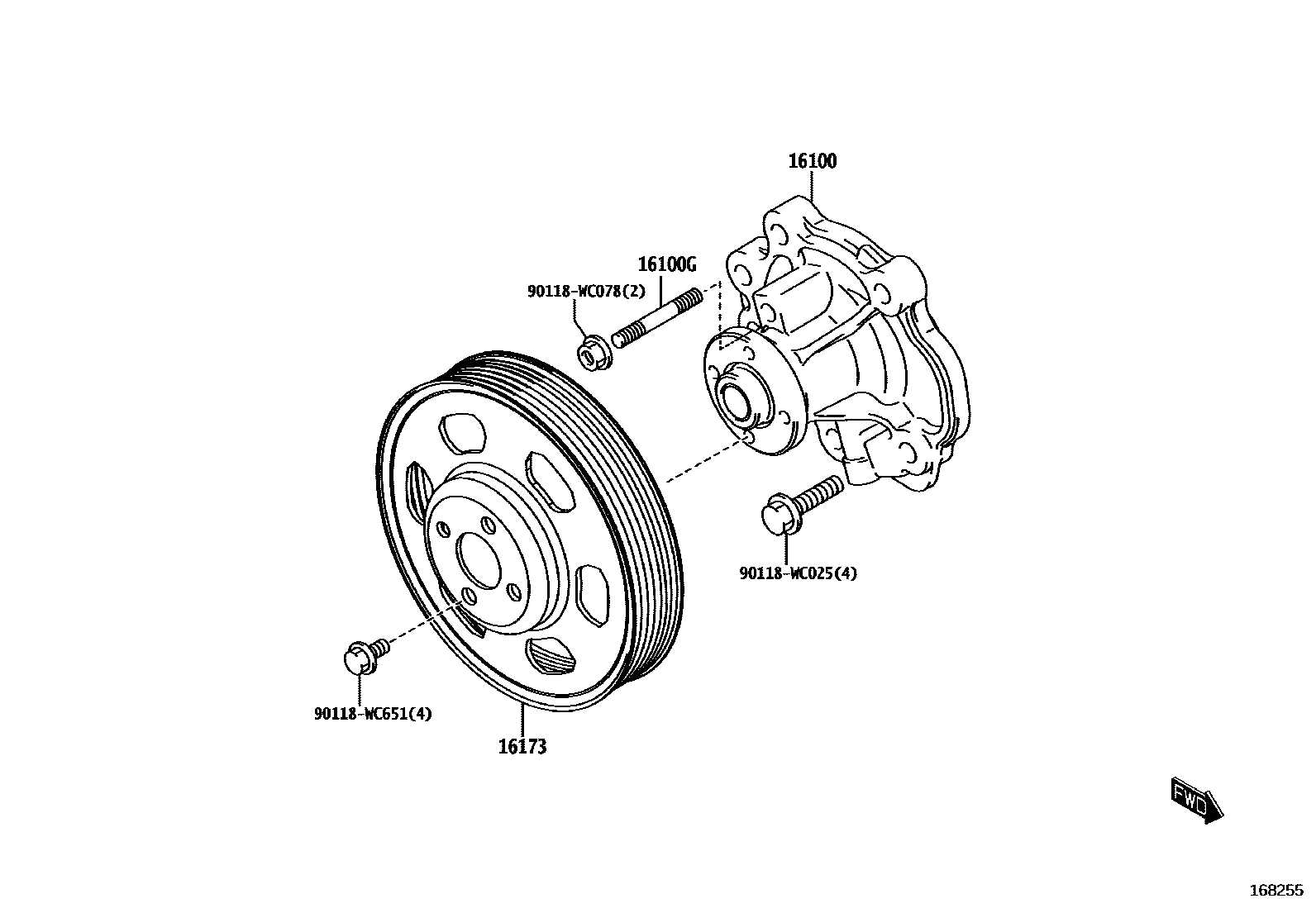

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-WC008i202205-202311

POS.31

16100GBOLT, STUD(FOR WATER PUMP SET)

main90118-WC003i202205-202311

POS.31

16173PULLEY, WATER PUMP

main16173-WC001i202205-202311

POS.31

90118WC025

main90118-WC025

90118WC078

main90118-WC078

90118WC651

main90118-WC651

6 parts on this diagram · 2 diagrams in section
