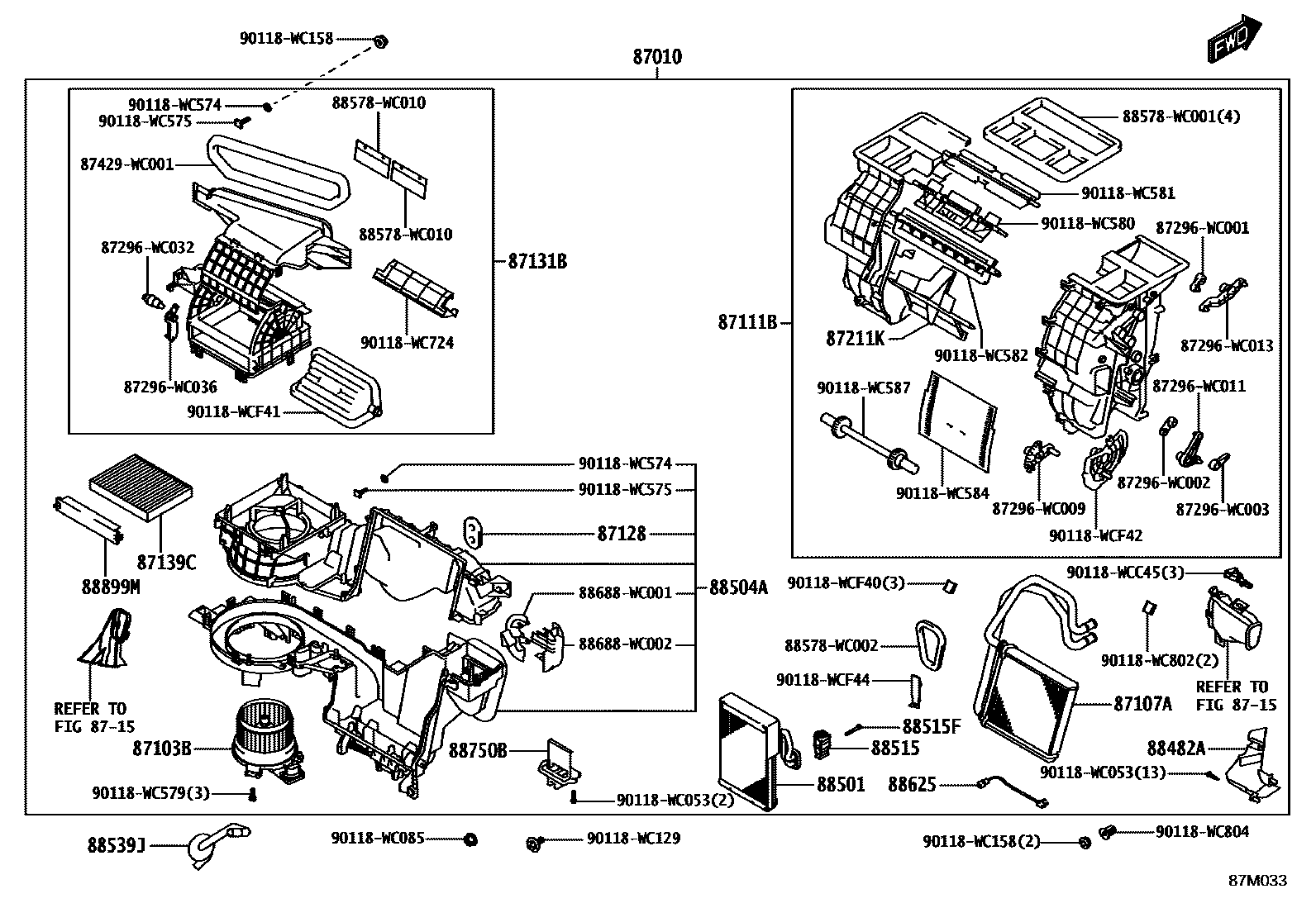

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1REAR AIR CONDITIONER 0004 1REAR AIR CONDITIONER

87010UNIT ASSY, AIR CONDITIONER

main87010-WC020iK15C..E202308

POS.8

main87010-WC031iK15C..5F..S..GAS202308

POS.7

main87010-WC032iK15C..6FC..V202308

POS.15

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-WC016iK15C..E202308

POS.8

main87103-WC032iK15C..5F..G202308

POS.15

87107AUNIT SUB-ASSY, HEATER RADIATOR

main90118-WCF36iK15C202308

87111BCASE, HEATER

main87301-WC005iK15C..6FC..V202308

POS.15

main87301-WC008iK15C..E202308

POS.9

87128GROMMET, HEATER

main87128-WC001iK15C202308

87131BCASE, HEATER BLOWER

main88504-WC007iK15C..E202308

POS.4

main88504-WC008iK15C..6FC..V202308

POS.15

87139CFILTER, CLEAN AIR

main87139-WC001iK15C202308

STANDARD

8715

87211KDUCT, AIR

main87201-WC001iK15C202308

main87211-WC014iK15C..6FC..V202308

POS.15

88482ACOVER

main87114-WC004iK15C202308

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-WC001iK15C..5F..G202308

POS.15

main88501-WC007iK15C..E202308

POS.8

88504ACASE SUB-ASSY, BLOWER

main88502-WC019iK15C..5F..S..GAS202308

POS.7

main88502-WC021iK15C..E202308

POS.8

main88502-WC023iK15C..6FC..V202308

POS.15

88515VALVE, COOLER EXPANSION

main88515-WC001iK15C..5F..G202308

POS.15

main88515-WC004iK15C..E202308

POS.8

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90118-WC578×2iK15C202308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-WC008iK15C202308

88539JHOSE, DRAIN COOLER

main88539-WC006iK15C202308

88625THERMISTOR, COOLER, NO.1

main88625-WC001iK15C202308

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main87138-WC001iK15C..6FC..V202308

POS.15

main87138-WC002iK15C..E202308

POS.9

88899MPLATE, COVER(FOR AIR FILTER)

main90118-WC588iK15C202308

87296WC001WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC001

87296WC002WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC002

87296WC003WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC003

87296WC009WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC009

87296WC011WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC011

87296WC013WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC013

87296WC032WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC032

87296WC036WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC036

87429WC001PIPE, COMBUSTION HEATER OUTLET

main87429-WC001

88578WC001PAKING, COOLER AIR DUCT

main88578-WC001

88578WC002PAKING, COOLER AIR DUCT

main88578-WC002

88578WC010PAKING, COOLER AIR DUCT

main88578-WC010

88688WC001BRACKET, COOLER DIAPHRAGM

main88688-WC001

88688WC002BRACKET, COOLER DIAPHRAGM

main88688-WC002

90118WC053

main90118-WC053

90118WC085

main90118-WC085

90118WC129

main90118-WC129

90118WC158

main90118-WC158

90118WC574

main90118-WC574

90118WC575

main90118-WC575

90118WC579

main90118-WC579

90118WC580

main90118-WC580

90118WC581

main90118-WC581

90118WC582

main90118-WC582

90118WC584

main90118-WC584

90118WC587

main90118-WC587

90118WC724

main90118-WC724

90118WC802

main90118-WC802

90118WC804

main90118-WC804

90118WCC45

main90118-WCC45

90118WCF40

main90118-WCF40

90118WCF41

main90118-WCF41

90118WCF42

main90118-WCF42

90118WCF44

main90118-WCF44

53 parts on this diagram · 4 diagrams in section
