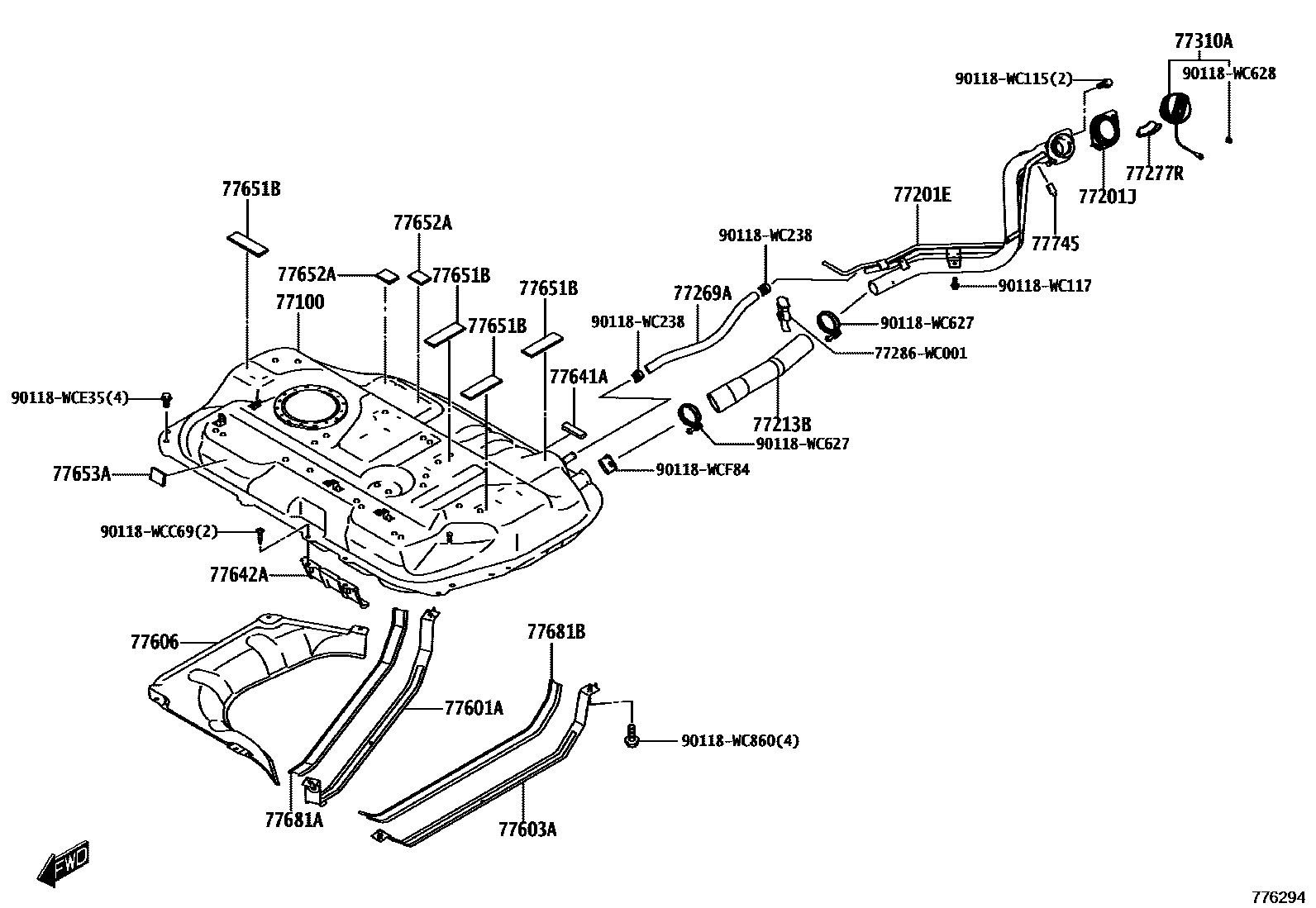

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

77100TANK ASSY, FUEL

main77001-WC010iK15C202308

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-WC013iK15C202308

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77316-WC001iK15C202308

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-WC004iK15C202308

sub77213-WC010

77269AHOSE, FUEL TANK BREATHER

main90118-WCE55iK15C202308

VENDOR 1

sub90118-WCT44

main90118-WCE56iK15C202308

VENDOR 2

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-WC001iK15C202308

77310ACAP ASSY, FUEL TANK

main77300-WC001iK15C202308

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-WC004iK15C202308

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-WC003iK15C202308

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-WC004iK15C202308

77641APROTECTOR, FUEL TANK, NO.1

main77641-WC001iK15C202308

77642APROTECTOR, FUEL TANK, NO.2

main77144-WC004iK15C202308

77651BCUSHION, FUEL TANK

main77651-WC007iK15C202308

77652ACUSHION, FUEL TANK, NO.2

main77652-WC002iK15C202308

77653ACUSHION, FUEL TANK, NO.3

main77651-WC008iK15C202308

77681ASEAT, FUEL TANK BAND

main77651-WC010iK15C202308

77681BSEAT, FUEL TANK BAND

main77651-WC009iK15C202308

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-WC001iK15C202308

77286WC001PROTECTOR, FUEL TANK INLET PIPE

main77286-WC001

90118WC115

main90118-WC115

90118WC117

main90118-WC117

90118WC238

main90118-WC238

90118WC627

main90118-WC627

90118WC628

main90118-WC628

90118WC860

main90118-WC860

90118WCC69

main90118-WCC69

90118WCE35

main90118-WCE35

90118WCF84

main90118-WCF84

28 parts on this diagram · 8 diagrams in section
