BATTERY CARRIER

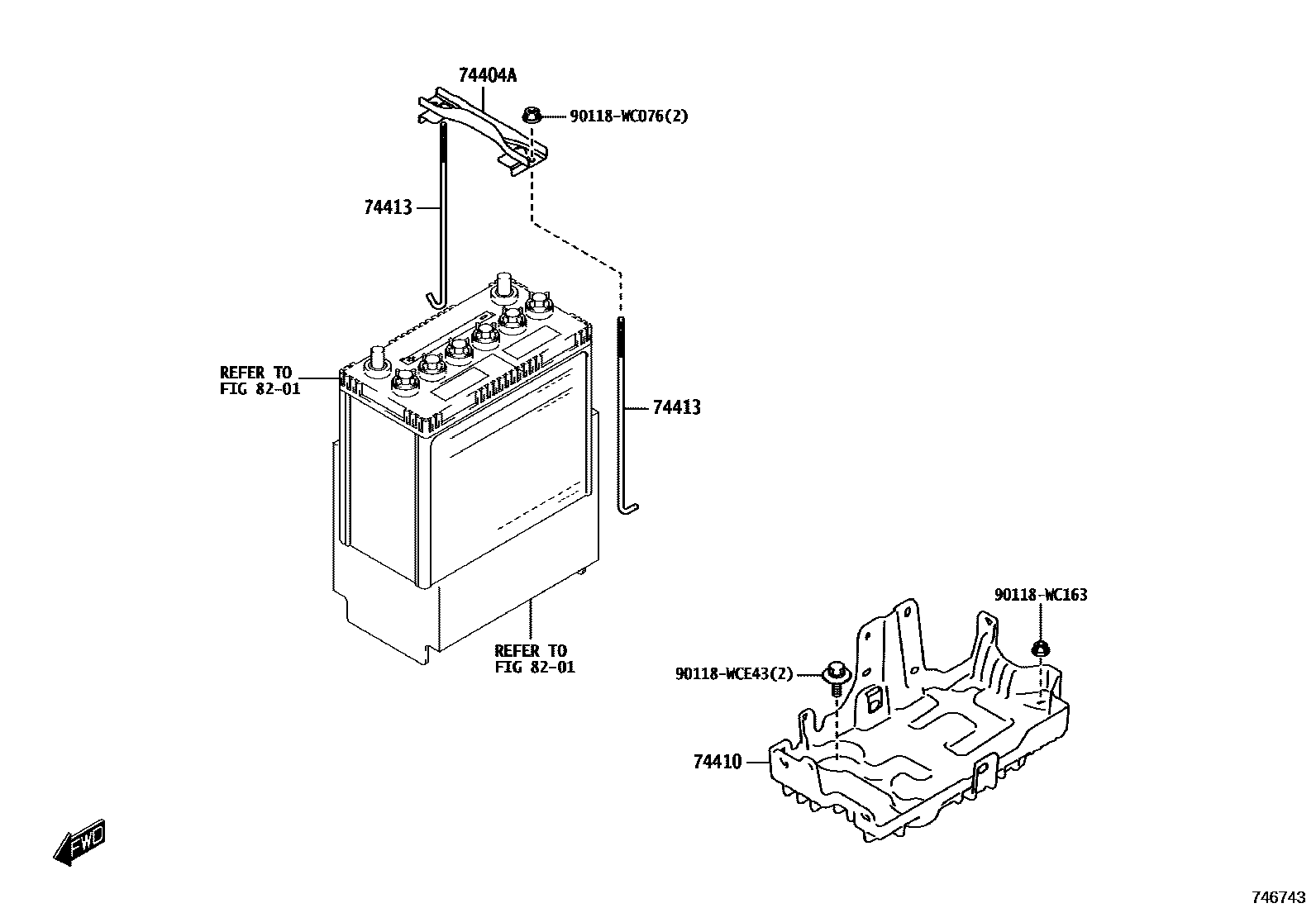

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-WC001i202308

74410CARRIER ASSY, BATTERY

main74410-WC001i202308

74413BOLT, BATTERY CLAMP

main74413-WC001i202308

8201

90118WC076

main90118-WC076

90118WC163

main90118-WC163

90118WCE43

main90118-WCE43

7 parts on this diagram · 1 diagram in section
