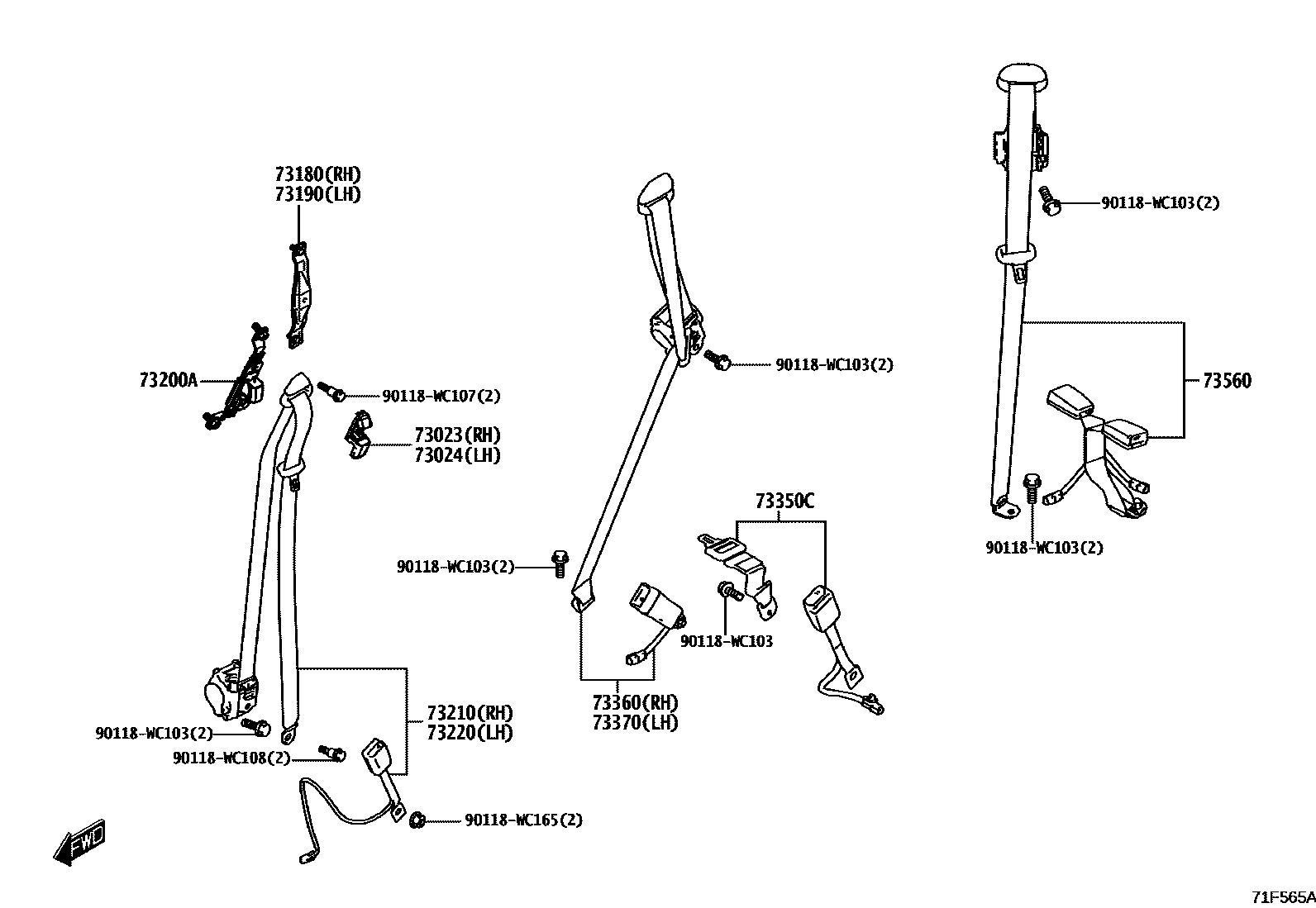

SEAT BELT & CHILD RESTRAINT SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-WC002iK15C..6FC..V202308

POS.14

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-WC002iK15C..6FC..V202308

POS.14

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73200-WC004iK15C..5F..S..GAS202308

POS.4

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73200-WC004iK15C..5F..S..GAS202308

POS.4

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-WC005×2iK15C..6FC..V202308

POS.14

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-WC029iK15C..5F..S..GAS202308

POS.4

main73210-WC030iK15C..6FC..V202308

POS.14

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-WC029iK15C..5F..S..GAS202308

POS.4

main73220-WC030iK15C..6FC..V202308

POS.14

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73380-WC015iK15C202308

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-WC026iK15C202308

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-WC014iK15C202308

73560BELT ASSY, REAR NO.2 SEAT, OUTER RH

main73560-WC005iK15C202308

90118WC103

main90118-WC103

90118WC107

main90118-WC107

90118WC108

main90118-WC108

90118WC165

main90118-WC165

15 parts on this diagram · 1 diagram in section
