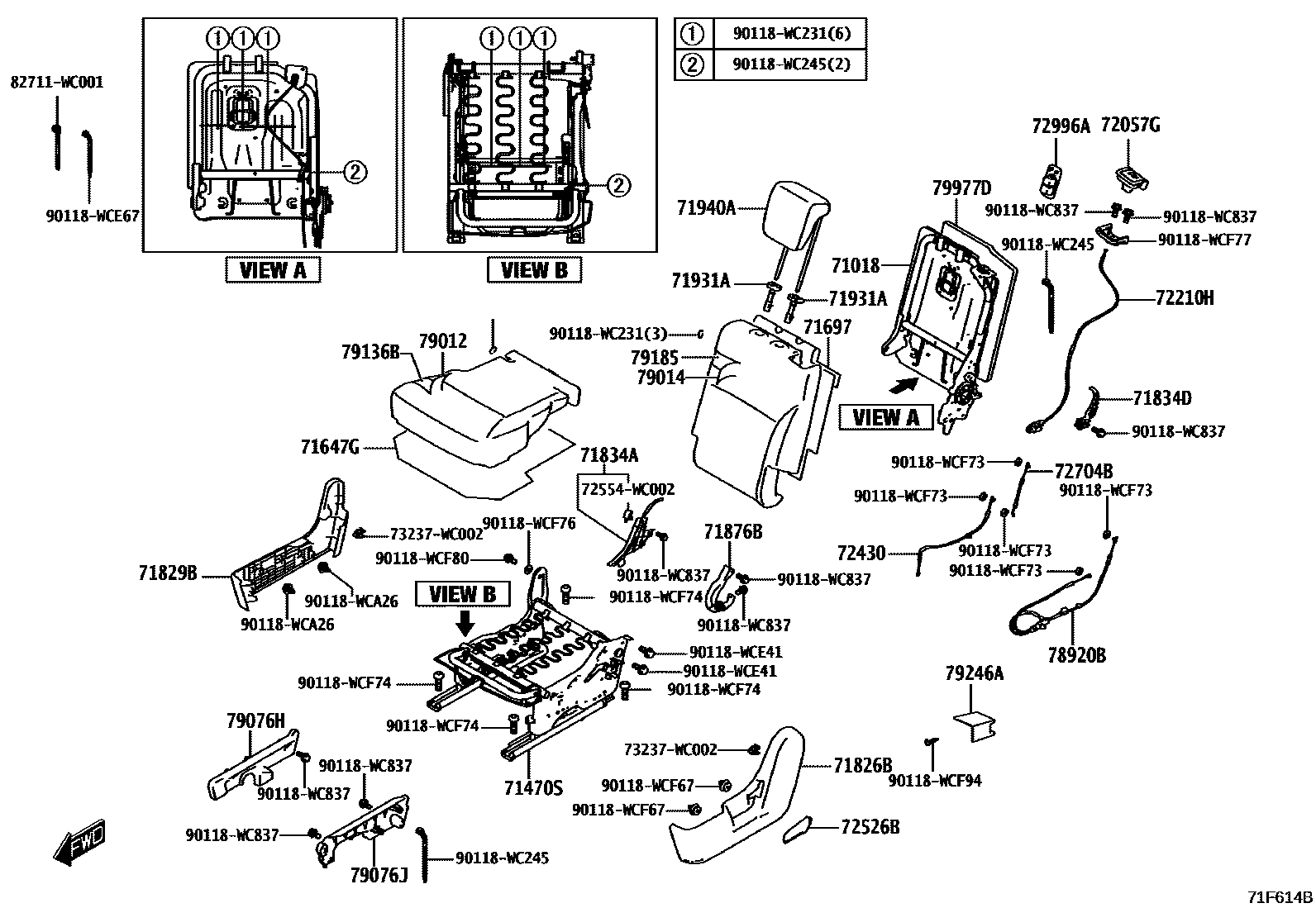

REAR SEAT & SEAT TRACK
71018FRAME SUB-ASSY, REAR SEATBACK, LH
71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71647PROTECTOR, REAR SEAT CUSHION EDGE
71647GPROTECTOR, REAR SEAT CUSHION EDGE
71697PROTECTOR, REAR SEATBACK EDGE
71826BMOULDING, REAR SEAT CUSHION, LH
71829BMOULDING, REAR SEAT CUSHION, REAR LH
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
71834DCOVER, REAR SEAT RECLINING, LH
71876BCOVER, RECLINING ADJUSTER INSIDE, LH
71931ASUPPORT, REAR SEAT HEADREST
W/O(LOCK)
W(LOCK)
71940AHEADREST ASSY, REAR SEAT
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
72057GLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1
72210HCABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, LH
72430CABLE ASSY, SEAT ADJUST DRIVE, NO.3
72526BHANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2
72996COVER, REAR SEATBACK, RH
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
72996ACOVER, REAR SEATBACK
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
78920CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2
78920BCABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH
79012COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
79014COVER SUB-ASSY, NO.1 SEATBACK, LH
POS.1
POS.4
POS.7
POS.8
POS.9
POS.10
POS.13
POS.16
POS.2
POS.3
POS.5
POS.6
POS.11
POS.12
POS.14
POS.15
79076HCOVER SUB-ASSY, NO.1 SEAT LEG, RH
79076JCOVER SUB-ASSY, NO.1 SEAT LEG, LH
79136BPAD, NO.1 SEAT CUSHION, LH
79185PAD, NO.1 SEATBACK, LH
79246ACOVER, NO.2 SEAT LEG, NO.2
POS.8
POS.9
79977DFELT, SEAT CUSHION, LH
72554WC002PROTECTOR, RECLINING COVER, LH
main72554-WC002
73237WC002COVER, SHOULDER BELT ANCHOR
main73237-WC002
82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-WC001
90118WC231
main90118-WC231
90118WC245
main90118-WC245
90118WC837
main90118-WC837
90118WCA26
main90118-WCA26
90118WCE41
main90118-WCE41
90118WCE67
main90118-WCE67
90118WCF67
main90118-WCF67
90118WCF73
main90118-WCF73
90118WCF74
main90118-WCF74
90118WCF76
main90118-WCF76
90118WCF77
main90118-WCF77
90118WCF80
main90118-WCF80
90118WCF94
main90118-WCF94
46 parts on this diagram · 4 diagrams in section
