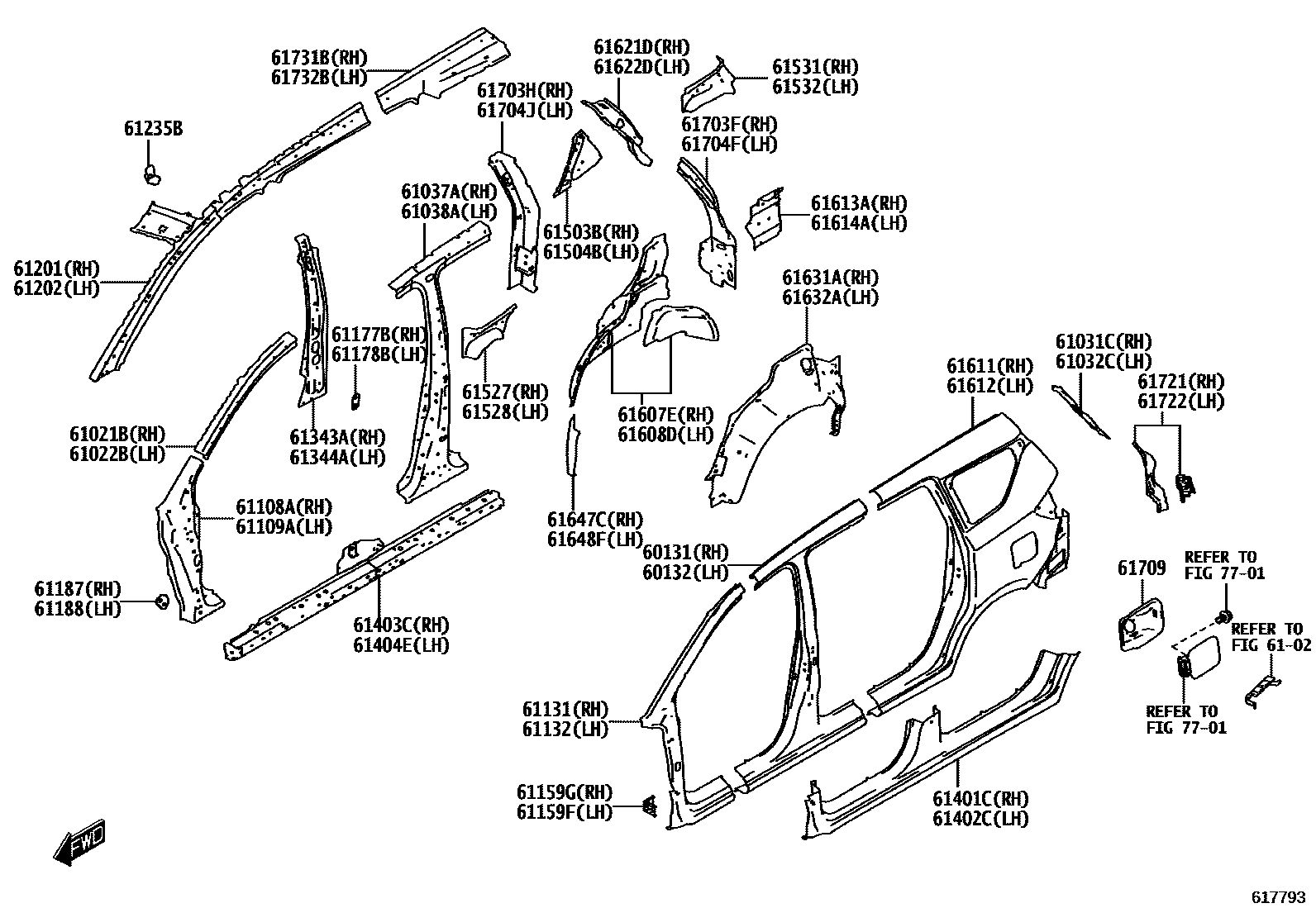

SIDE MEMBER

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main61111-WC022i202308

sub61111-WC052

60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

main61112-WC022i202308

6102

61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH

main61211-WC006i202308

61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH

main61212-WC005i202308

61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

main61625-WC008i202308

61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

main61626-WC008i202308

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61307-WC005i202308

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61308-WC005i202308

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-WC005i202308

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-WC005i202308

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61111-WC021i202308

sub61111-WC051

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61112-WC021i202308

61159FBRACKET, COWL SIDE PANEL TO FENDER APRON

main53837-WC004i202308

61159GBRACKET, COWL SIDE PANEL TO FENDER APRON, RH

main53837-WC004i202308

61177BBRACKET, DOOR CHECK ARM

main61371-WC001×2i202308

61178BBRACKET, DOOR CHECK ARM

main61371-WC001×2i202308

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61153-WC001×2i202308

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61153-WC001×2i202308

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61203-WC005i202308

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61204-WC005i202308

61235BBRACKET, ASSIST GRIP

main61235-WC001×2i202308

61343APILLAR, CENTER BODY, INNER RH

main61301-WC006i202308

61344APILLAR, CENTER BODY, INNER LH

main61302-WC006i202308

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61111-WC024i202308

sub61111-WC054

61402CPANEL SUB-ASSY, ROCKER, OUTER LH

main61112-WC024i202308

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61305-WC005i202308

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61306-WC005i202308

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61703-WC005i202308

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61704-WC005i202308

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main62781-WC001i202308

61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH

main62782-WC001i202308

61531PANEL, BACK CORNER, INNER RH

main61737-WC002i202308

61532PANEL, BACK CORNER, INNER LH

main61738-WC002i202308

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-WC006i202308

61608DPANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-WC006i202308

61611PANEL, QUARTER, RH

main61111-WC023i202308

sub61111-WC053

61612PANEL, QUARTER, LH

main61112-WC023i202308

61613AEXTENSION, QUARTER PANEL REAR, RH

main61613-WC003i202308

61614AEXTENSION, QUARTER PANEL, REAR LH

main61714-WC002i202308

61621DTROUGH, BACK DOOR OPENING, RH

main61625-WC007i202308

61622DTROUGH, BACK DOOR OPENING, LH

main61626-WC007i202308

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-WC006i202308

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-WC006i202308

61647CREINFORCEMENT, WHEEL HOUSE, RH

main61674-WC005i202308

61648FREINFORCEMENT, QUARTER PANEL, LOWER LH

main61673-WC005i202308

61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH

main67149-WC001i202308

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

main61701-WC003i202308

61704FPANEL SUB-ASSY, QUARTER, INNER FRONT LH

main67129-WC001i202308

61704JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH

main61702-WC003i202308

61709BOX SUB-ASSY, FUEL INLET

main77291-WC002i202308

POS.5

main77291-WC008i202308

POS.7

61721PANEL, REAR BODY OUTSIDE CORNER, RH

main61621-WC004i202308

61722PANEL, REAR BODY OUTSIDE CORNER, LH

main62622-WC004i202308

61731BPANEL, ROOF SIDE, INNER RH

main61207-WC002i202308

61732BPANEL, ROOF SIDE, INNER LH

main61208-WC002i202308

7701

56 parts on this diagram · 2 diagrams in section
