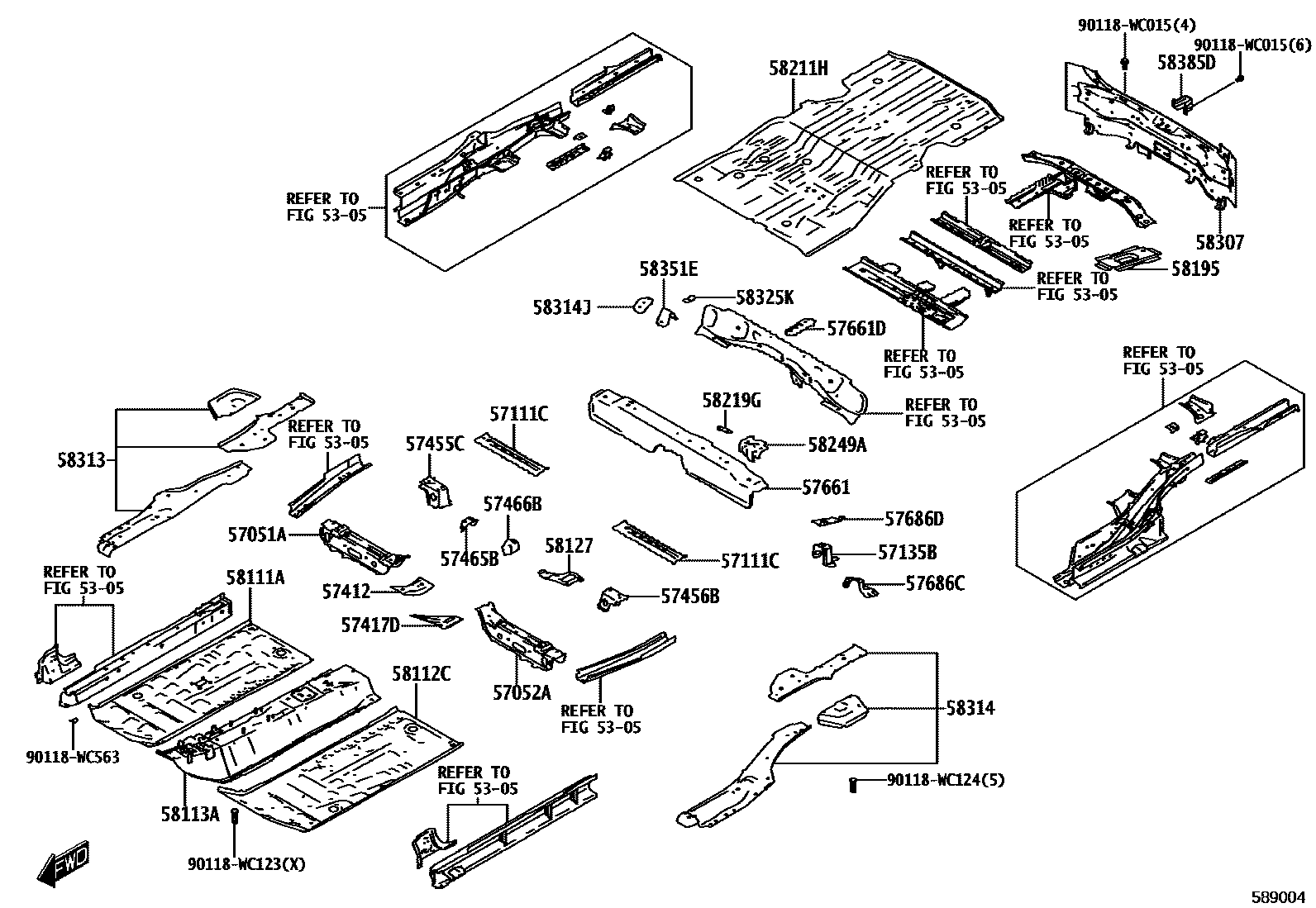

FLOOR PAN & LOWER BACK PANEL

5305

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-WC007iK15C202308

sub57052-WC013

57111CCROSSMEMBER, FLOOR, NO.1

main57453-WC007iK15C202308

57135BBRACKET, FRONT FLOOR SIDE, RH

57412PLATE, FLOOR SIDE RAIL, LH

main57145-WC002iK15C202308

57417DREINFORCEMENT, FLOOR SIDE, INNER RH

main57181-WC001iK15C202308

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-WC002iK15C202308

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-WC002iK15C202308

57465BBRACKET, FRONT SEAT, INNER

main57465-WC002iK15C202308

57466BBRACKET, FRONT SEAT, INSIDE LH

main57466-WC002iK15C202308

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-WC008iK15C202308

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57681-WC003iK15C202308

57686CBRACKET, FUEL TANK MOUNTING, NO.3

57686DBRACKET, REAR FLOOR MOUNTING, NO.1 LH

58111APAN, FRONT FLOOR, RH

58112CPAN, FRONT FLOOR, LH

58113APANEL, FRONT FLOOR, CENTER

main58113-WC011iK15C202308

58127PATCH, FRONT FLOOR PANEL

main58127-WC003

58195SUPPORT, EXTINGUISHER

main58195-WC001

58211HPAN, CENTER FLOOR

main58211-WC005iK15C202308

58219GPATCH, SEAT FLOOR

main79919-WC001iK15C202308

58249AREINFORCEMENT, REAR SEAT MOUNTING

main58249-WC001iK15C202308

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-WC006iK15C202308

58313PANEL, REAR FLOOR SIDE, RH

main58313-WC006

main58313-WC007

58314PANEL, REAR FLOOR SIDE, LH

main58314-WC003

main58314-WC009

main58314-WC010

58314JPANEL, REAR FLOOR SIDE, LH

main58314-WC003iK15C202308

58325KBRACE, REAR FLOOR PANEL

main57681-WC002iK15C202308

58351EBRACKET, SPARE WHEEL CLAMP

main58351-WC004iK15C202308

58385DBRACKET, REAR BUMPER COVER

main58385-WC001iK15C202308

90118WC015

main90118-WC015

90118WC123

main90118-WC123

90118WC124

main90118-WC124

90118WC563

main90118-WC563

34 parts on this diagram · 1 diagram in section
