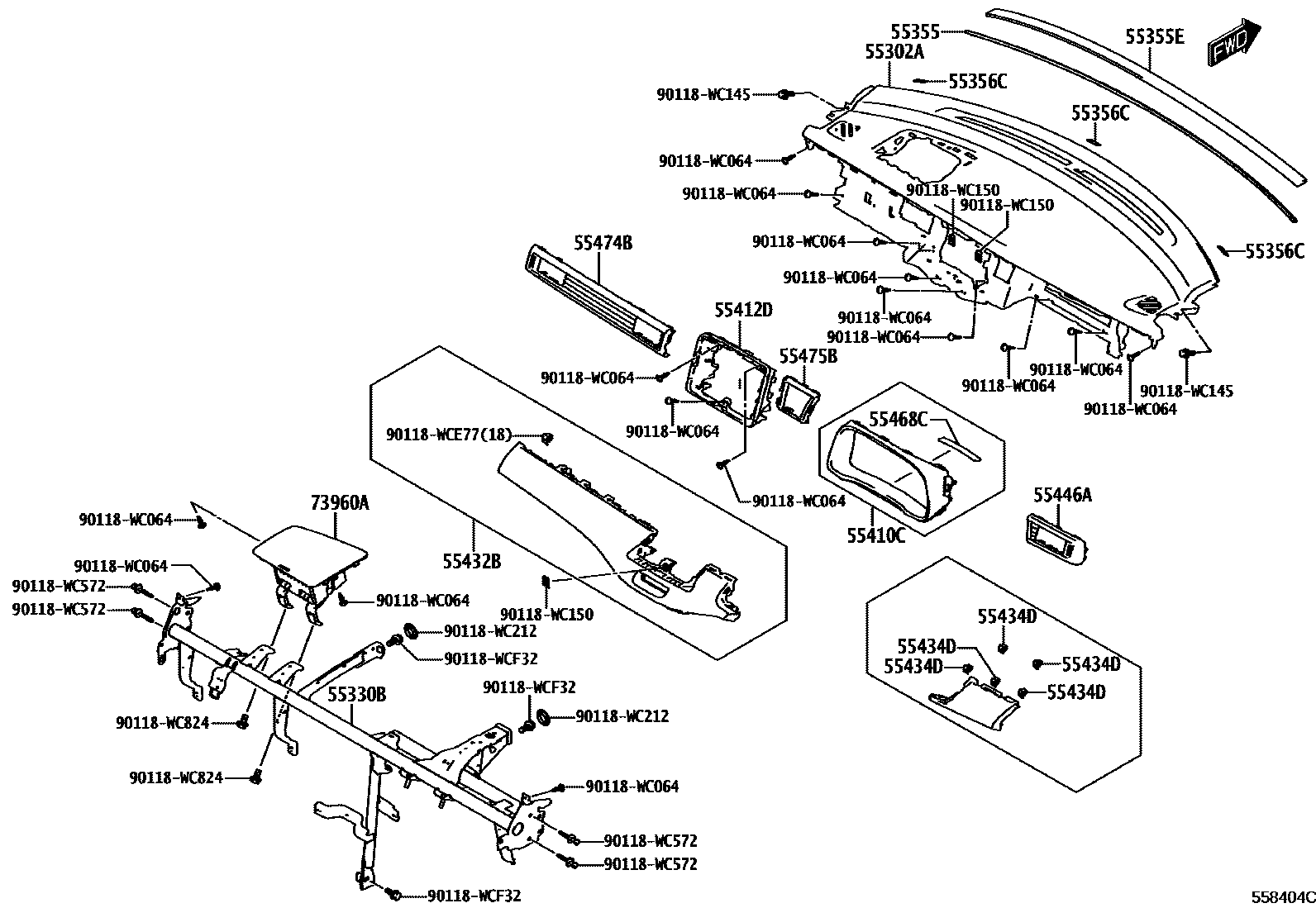

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-WC017iK15C202308

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-WC015iK15C202308

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-WC001iK15C202308

55355ECUSHION, INSTRUMENT PANEL

main55355-WC002iK15C202308

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-WC002×3iK15C202308

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-WC006iK15C202308

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-WC003iK15C202308

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55406-WC004iK15C..5F..V202308

POS.12

main55406-WC005iK15C..E202308

POS.10

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90118-WCE77×5iK15C202308

55446ABASE, SWITCH HOLE, NO.1

main55446-WC007iK15C202308

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55357-WC001iK15C202308

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-WC001iK15C202308

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-WC003iK15C202308

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-WC004iK15C202308

90118WC064

main90118-WC064

90118WC145

main90118-WC145

90118WC150

main90118-WC150

90118WC212

main90118-WC212

90118WC572

main90118-WC572

90118WC824

main90118-WC824

90118WCE77

main90118-WCE77

90118WCF32

main90118-WCF32

22 parts on this diagram · 7 diagrams in section
