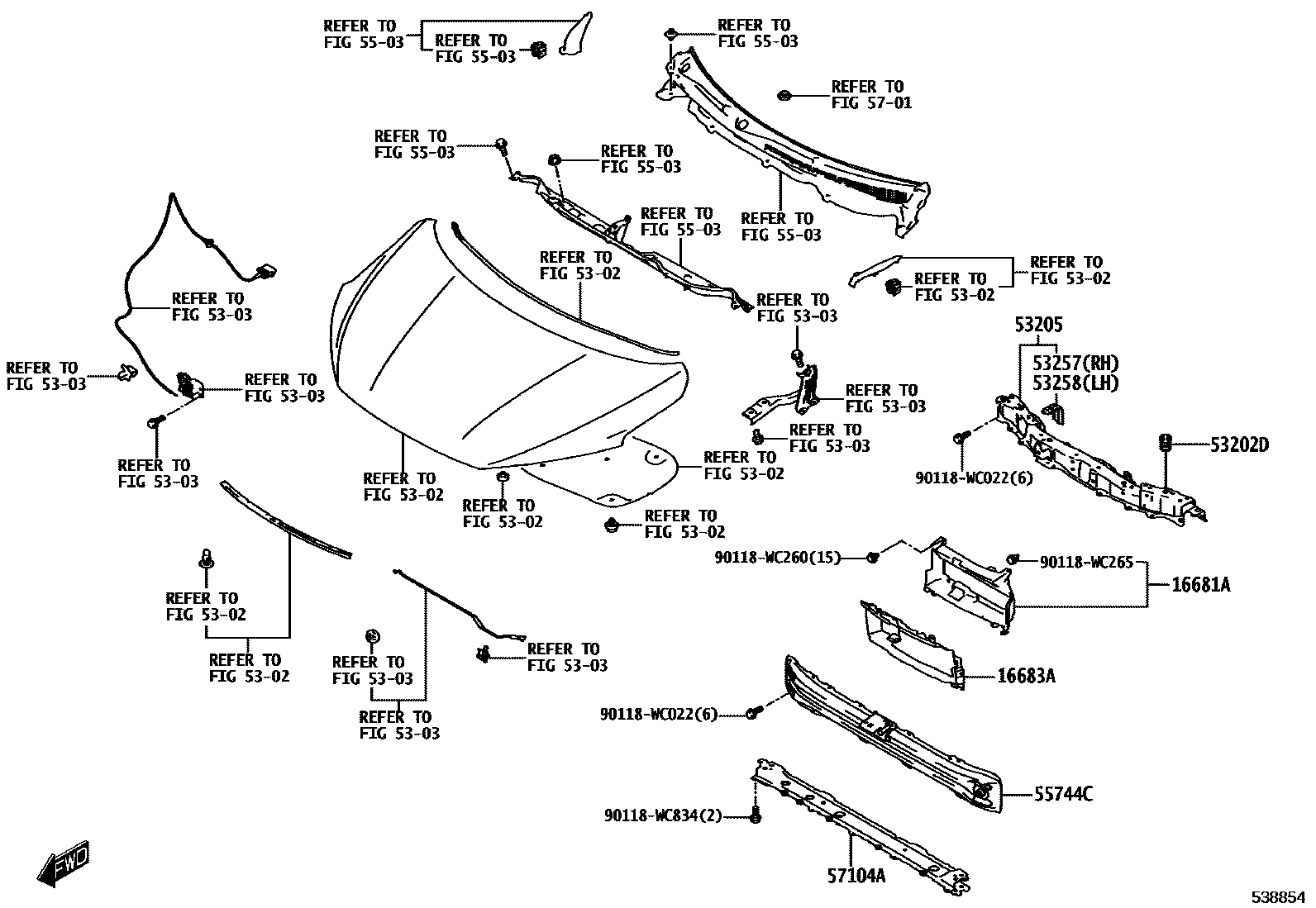

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-WC003iK15C..K15C202308

16683APLATE, RADIATOR LOWER AIR GUIDE

main16683-WC001iK15C..K15C202308

5302

5303

53202DCUSHION, RADIATOR SUPPORT

main90118-WC568iK15C202308

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-WC005iK15C202308

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53257-WC001iK15C202308

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53257-WC001iK15C202308

5503

55744CMEMBER, FRONT PANEL, UPPER

main52131-WC005iK15C202308

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main53028-WC004iK15C202308

90118WC022

main90118-WC022

90118WC260

main90118-WC260

90118WC265

main90118-WC265

90118WC834

main90118-WC834

16 parts on this diagram · 5 diagrams in section
