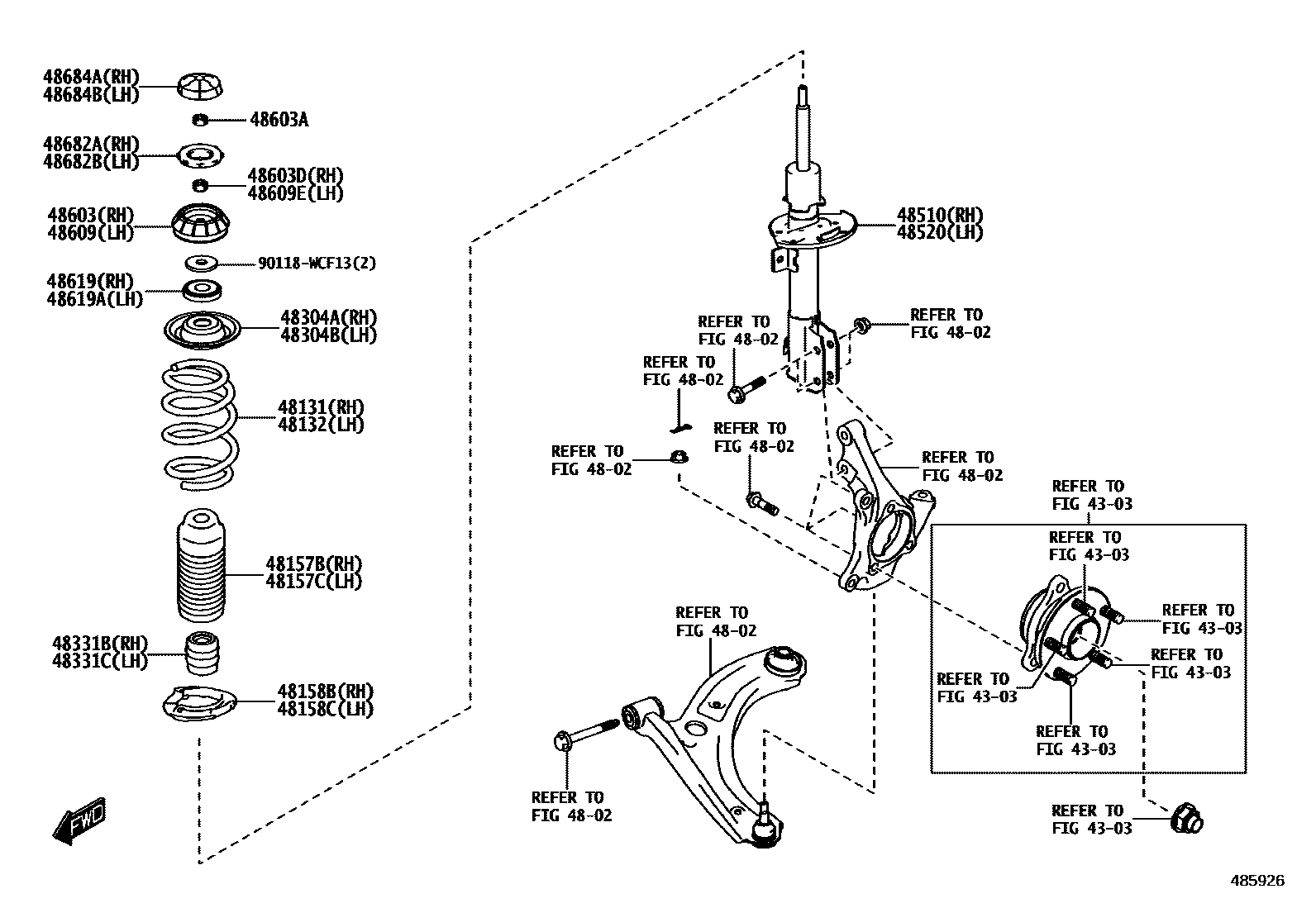

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4303

4802

48131SPRING, FRONT COIL, RH

main48131-WC019iK15C..6FC..V202308

POS.2

main48131-WC020iK15C..CNG202308

POS.16

sub48131-WC023

48132SPRING, FRONT COIL, LH

main48131-WC019iK15C..6FC..V202308

POS.2

main48131-WC020iK15C..CNG202308

POS.16

sub48131-WC023

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48559-WC005iK15C202308

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48559-WC005iK15C202308

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-WC003iK15C202308

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-WC003iK15C202308

48304ASEAT SUB-ASSY, BUMPER, RH

main48471-WC004iK15C202308

48304BSEAT SUB-ASSY, BUMPER, LH

main48471-WC004iK15C202308

48331BBUMPER, FRONT SPRING, RH

main48331-WC004iK15C202308

48331CBUMPER, FRONT SPRING, LH

main48331-WC004iK15C202308

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-WC013iK15C..6FC..V202308

POS.2

main48510-WC014iK15C..CNG202308

POS.16

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-WC013iK15C..6FC..V202308

POS.2

main48520-WC014iK15C..CNG202308

POS.16

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-WC004iK15C202308

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90118-WCF14×2iK15C202308

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90118-WC075iK15C202308

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-WC004iK15C202308

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90118-WC075iK15C202308

48619BEARING, STRUT MOUNTING, RH

main48619-WC001iK15C202308

48619ABEARING, STRUT MOUNTING, LH

main48619-WC001iK15C202308

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-WC003iK15C202308

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-WC003iK15C202308

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-WC002iK15C202308

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-WC002iK15C202308

90118WCF13

main90118-WCF13

26 parts on this diagram · 2 diagrams in section
