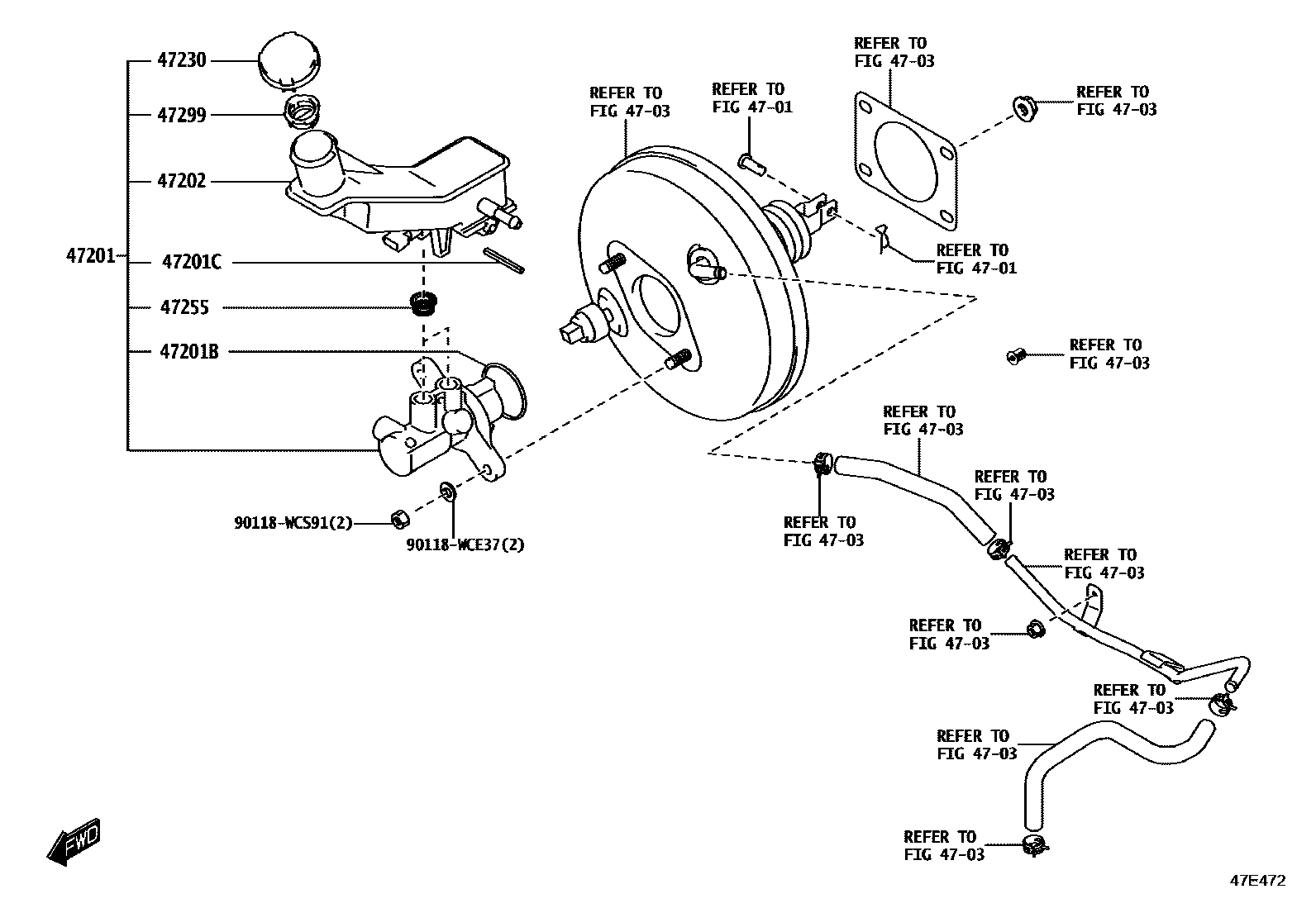

BRAKE MASTER CYLINDER

0001 1 0002 1

4701

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-WC030

main47201-WC031

main90118-WC542

main90118-WC543

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90118-WC543iK15C202308

47201CRING PIN, BRAKE MASTER CYLINDER

main90118-WC542iK15C202308

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-WC002

main47220-WC014

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-WC001iK15C202308

47255GROMMET, MASTER CYLINDER RESERVOIR

main90118-WC541iK15C202308

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-WC001iK15C202308

90118WCE37

main90118-WCE37

90118WCS91

main90118-WCS91

11 parts on this diagram · 2 diagrams in section
