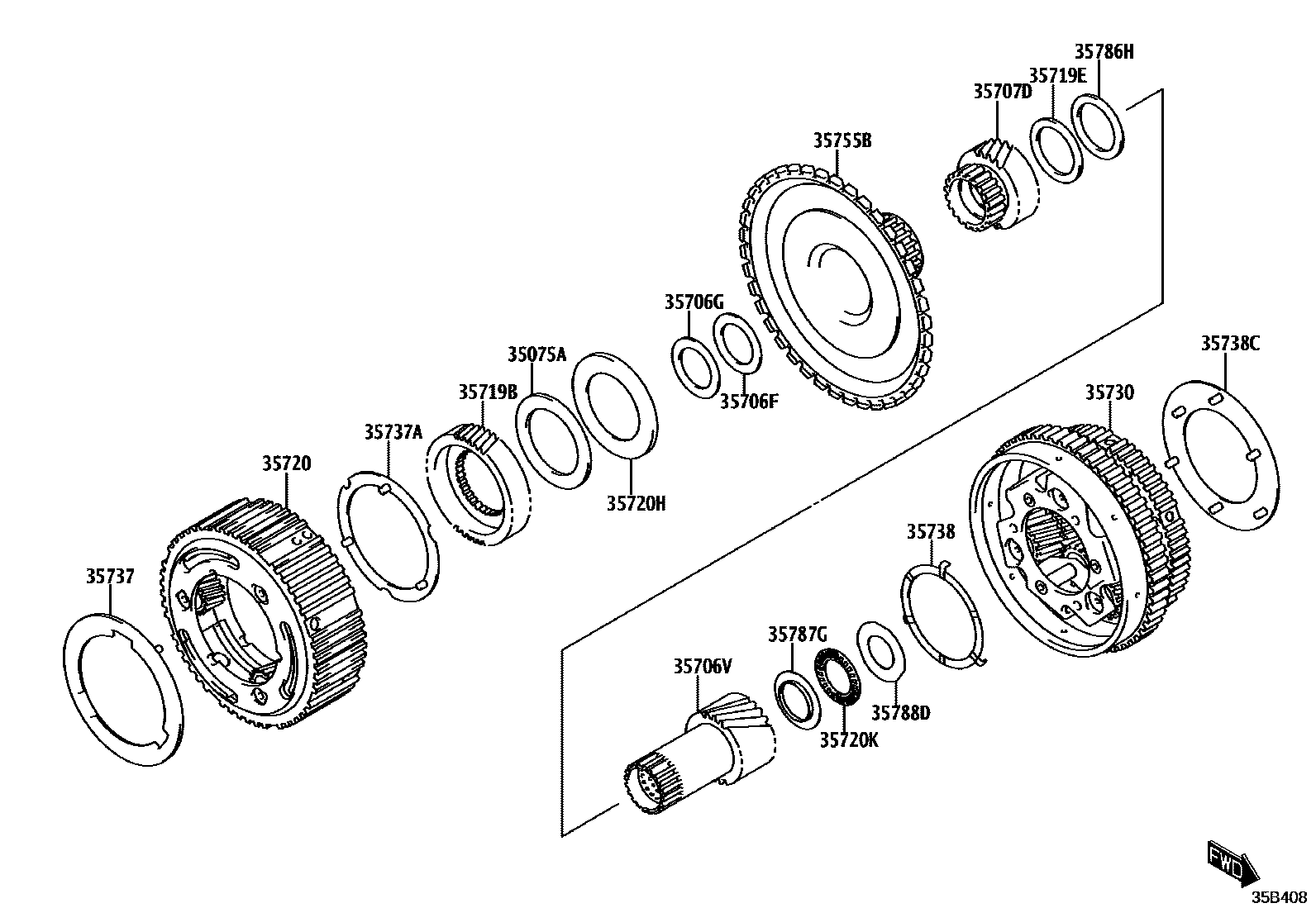

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1 0002 1

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

35706GBEARING, THRUST (FOR SUN GEAR REAR)

35706VGEAR SUB ASSY, PLANETARY SUN

35707DGEAR SUB-ASSY, REAR PLANETARY SUN

35719BGEAR, PLANETARY SUN

35719EBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY SUN GEAR)

35720GEAR ASSY, FRONT PLANETARY

main35706-WC002

main90118-WCL93

main90118-WCM01

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

35730GEAR ASSY, REAR PLANETARY SUN

main35720-WC002

35737WASHER, PLANETARY CARRIER THRUST

main35739-WC001

main35737-WC001

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main90118-WCL96

main90118-WCL97

35738CWASHER, PLANETARY CARRIER THRUST, NO.2

35755BDRUM, SUN GEAR INPUT

35786HRACE, THRUST BEARING, NO.1

35787GRACE, THRUST BEARING, NO.2

35788DRACE, THRUST BEARING, NO.3

19 parts on this diagram · 2 diagrams in section
