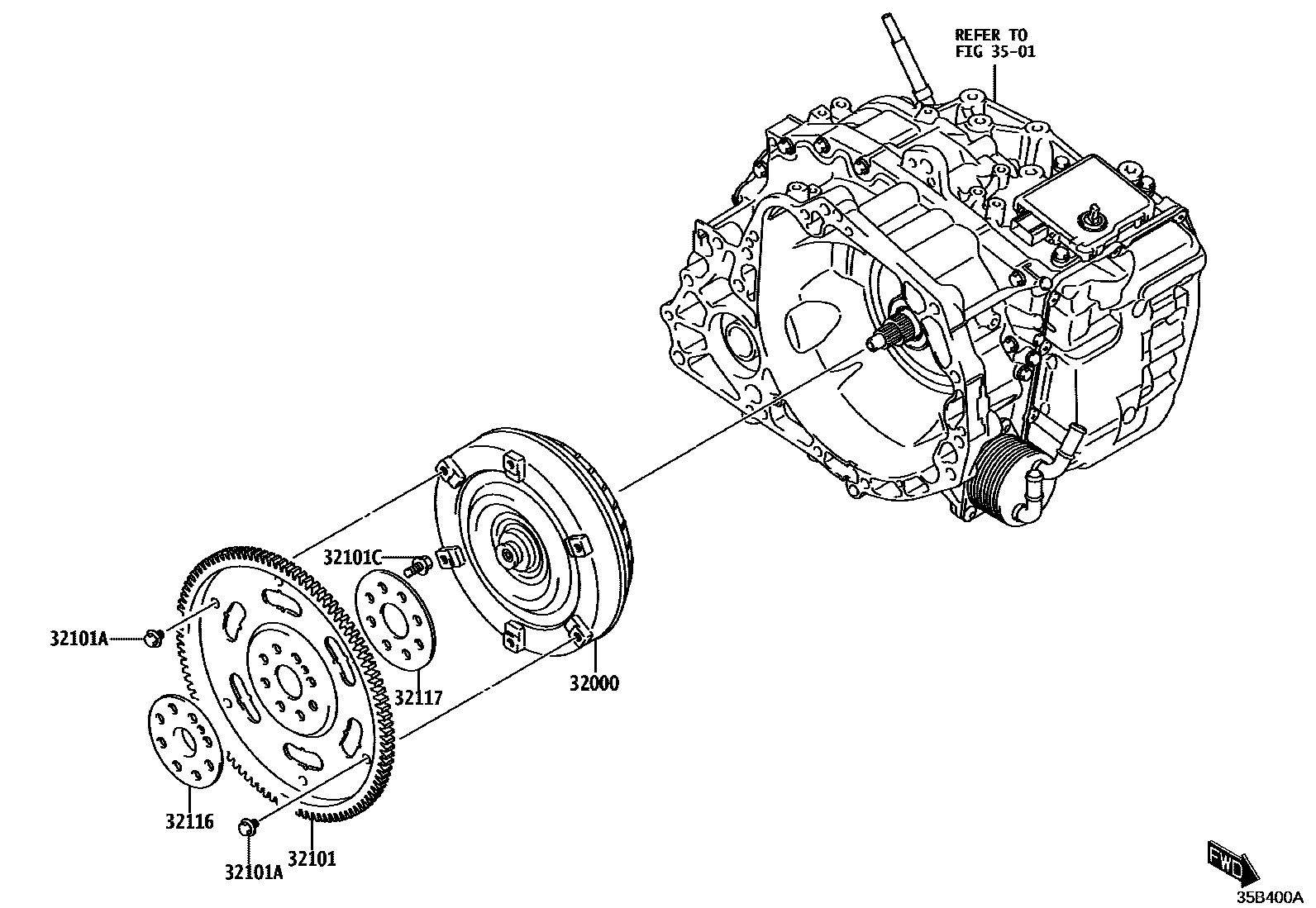

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-WC005iK15C..6FC..V202308

POS.13

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-WC002iK15C..6FC..V202308

POS.13

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90118-WC092iK15C..6FC..V202308

*8-1.25PX9.5-7.0,POS.6

main90118-WC351×5iK15C..6FC..V202308

*8-1.25PX9.5-7.5,POS.5

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90118-WC096×8iK15C..6FC..V202308

POS.13

32116SPACER, DRIVE PLATE, FRONT

main32116-WC002iK15C..6FC..V202308

POS.13

32117SPACER, DRIVE PLATE, REAR

main32117-WC002iK15C..6FC..V202308

POS.13

3501

7 parts on this diagram · 2 diagrams in section
