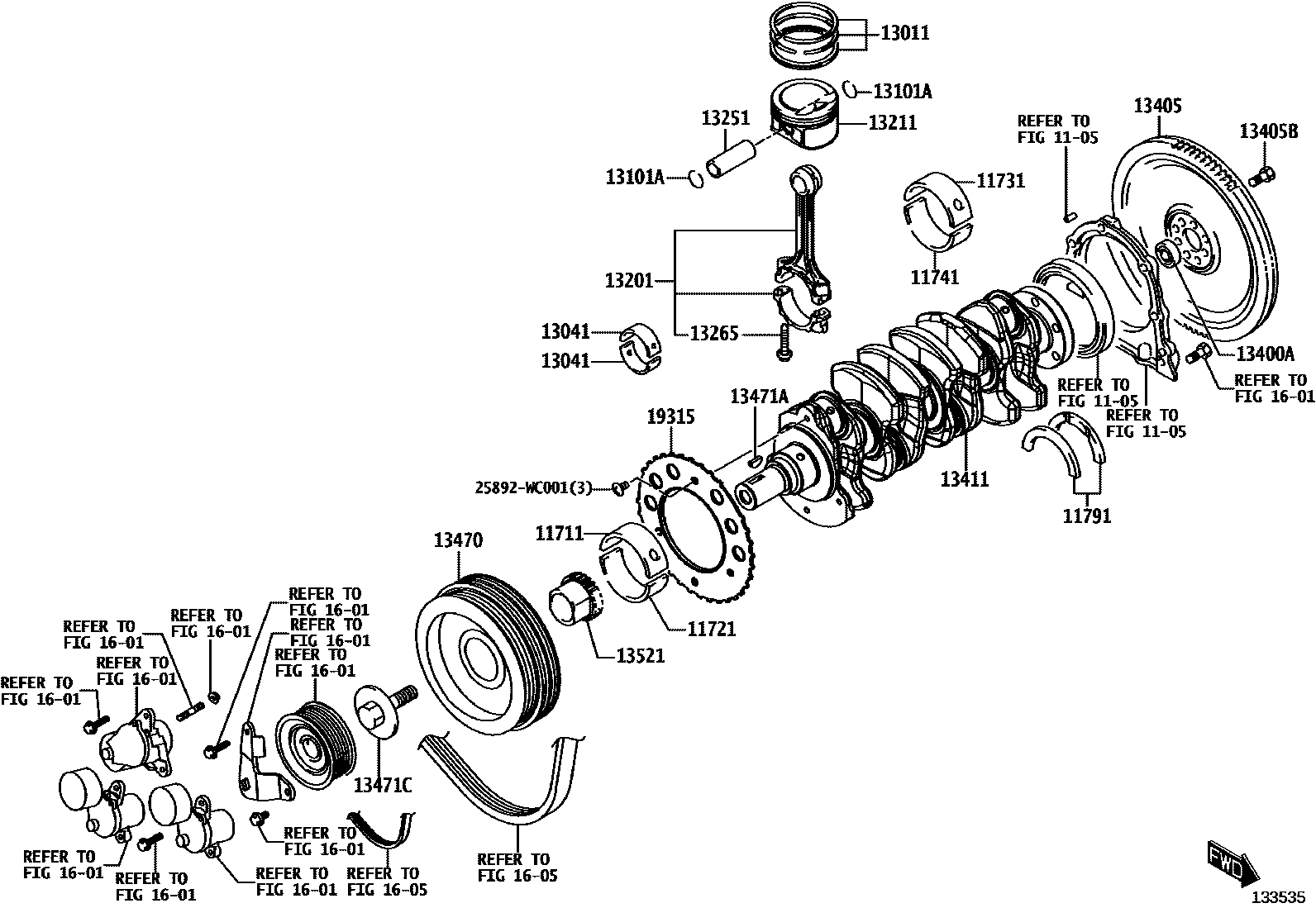

CRANKSHAFT & PISTON
1105
11711BEARING, CRANKSHAFT
RED/PINK
PINK
RED/PURPLE
PURPLE
RED/BROWN
BROWN
RED/GREEN
GREEN
RED/BLACK
BLACK
11721BEARING, CRANKSHAFT, NO.2
RED/PINK
PINK
RED/PURPLE
PURPLE
RED/BROWN
BROWN
RED/GREEN
GREEN
RED/BLACK
BLACK
11731BEARING, CRANKSHAFT, NO.3
RED/PINK
PINK
RED/PURPLE
PURPLE
RED/BROWN
BROWN
RED/GREEN
GREEN
RED/BLACK
BLACK
11741BEARING, CRANKSHAFT, NO.4
RED/PINK
PINK
RED/PURPLE
PURPLE
RED/BROWN
BROWN
RED/GREEN
GREEN
RED/BLACK
BLACK
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
U/S
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
BLACK
NO PAINT
YELLOW
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13211PISTON
13251PIN, PISTON
13265BOLT, CONNECTING ROD
13400ABEARING(FOR CRANKSHAFT)
POS.9
13405FLYWHEEL SUB-ASSY
POS.9
13405BBOLT, FLYWHEEL SETTING
POS.9
13411CRANKSHAFT
13470PULLEY ASSY, CRANKSHAFT
POS.4
POS.16
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
1601
1605
19315PLATE, CRANK ANGLE SENSOR, NO.1
25892WC001
main25892-WC001
25 parts on this diagram · 1 diagram in section
