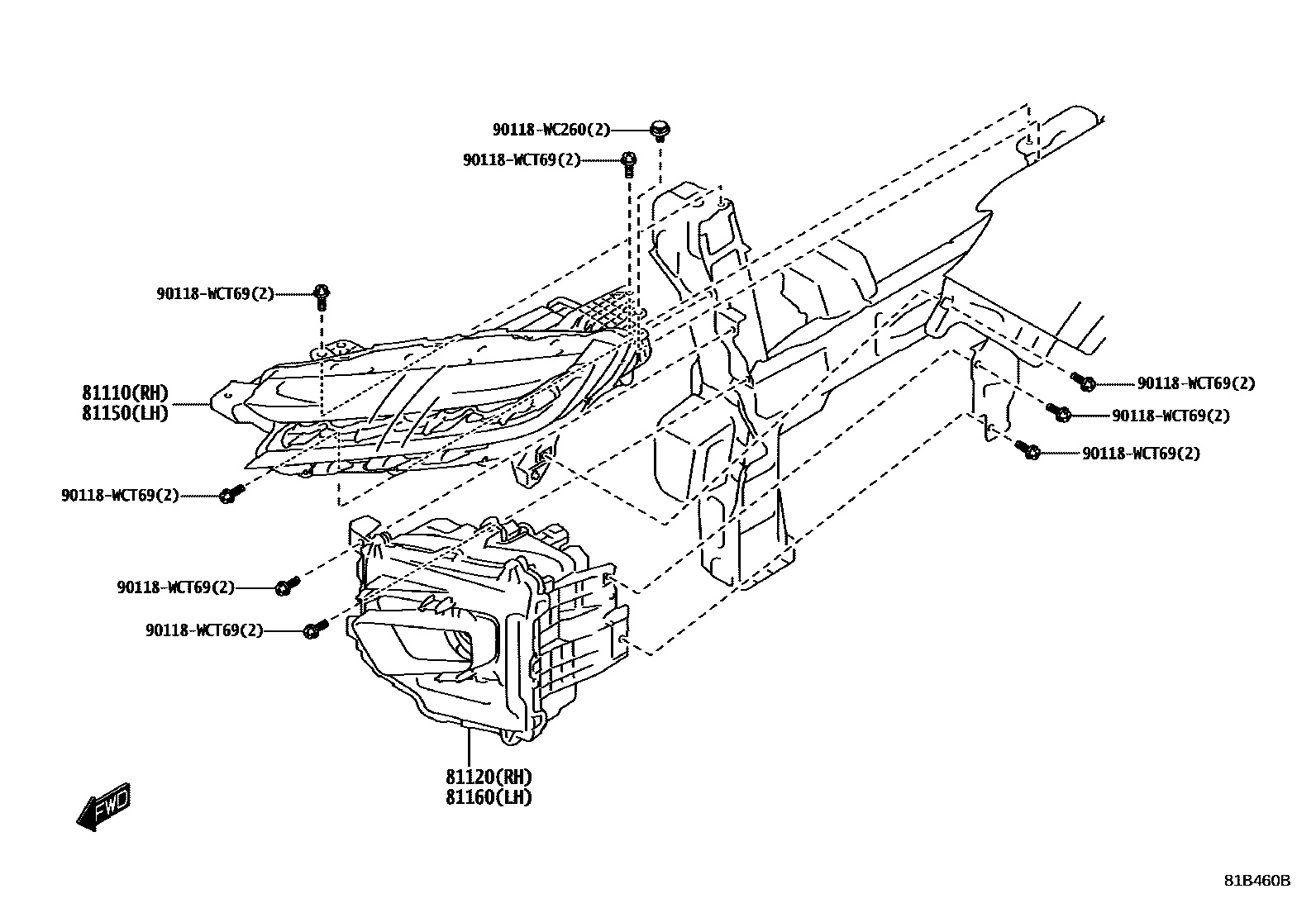

HEADLAMP

0001 1 0002 1 0003 1

81110HEADLAMP ASSY, RH

main81110-WC011iFG212XJ..MEL202302

POS.63

81120HEADLAMP SUB-ASSY, RH

main81110-WC015iFG6127K..SA202211

POS.49

sub81110-WC027

main81110-WC016iFG212XJ..MEL202302

POS.63

sub81110-WC028

main81130-WC023iFG6112A..SA202211

POS.47

sub81130-WC037

81150HEADLAMP ASSY, LH

main81150-WC011iFG212XJ..MEL202302

POS.63

81160HEADLAMP SUB-ASSY, LH

main81150-WC015iFG6127K..SA202211

POS.49

sub81150-WC027

main81150-WC016iFG6112D..GHA202211

POS.52

sub81150-WC028

main81170-WC023iFG6112A..SA202211

POS.47

sub81170-WC037

90118WC260

main90118-WC260

90118WCT69

main90118-WCT69

6 parts on this diagram · 3 diagrams in section
