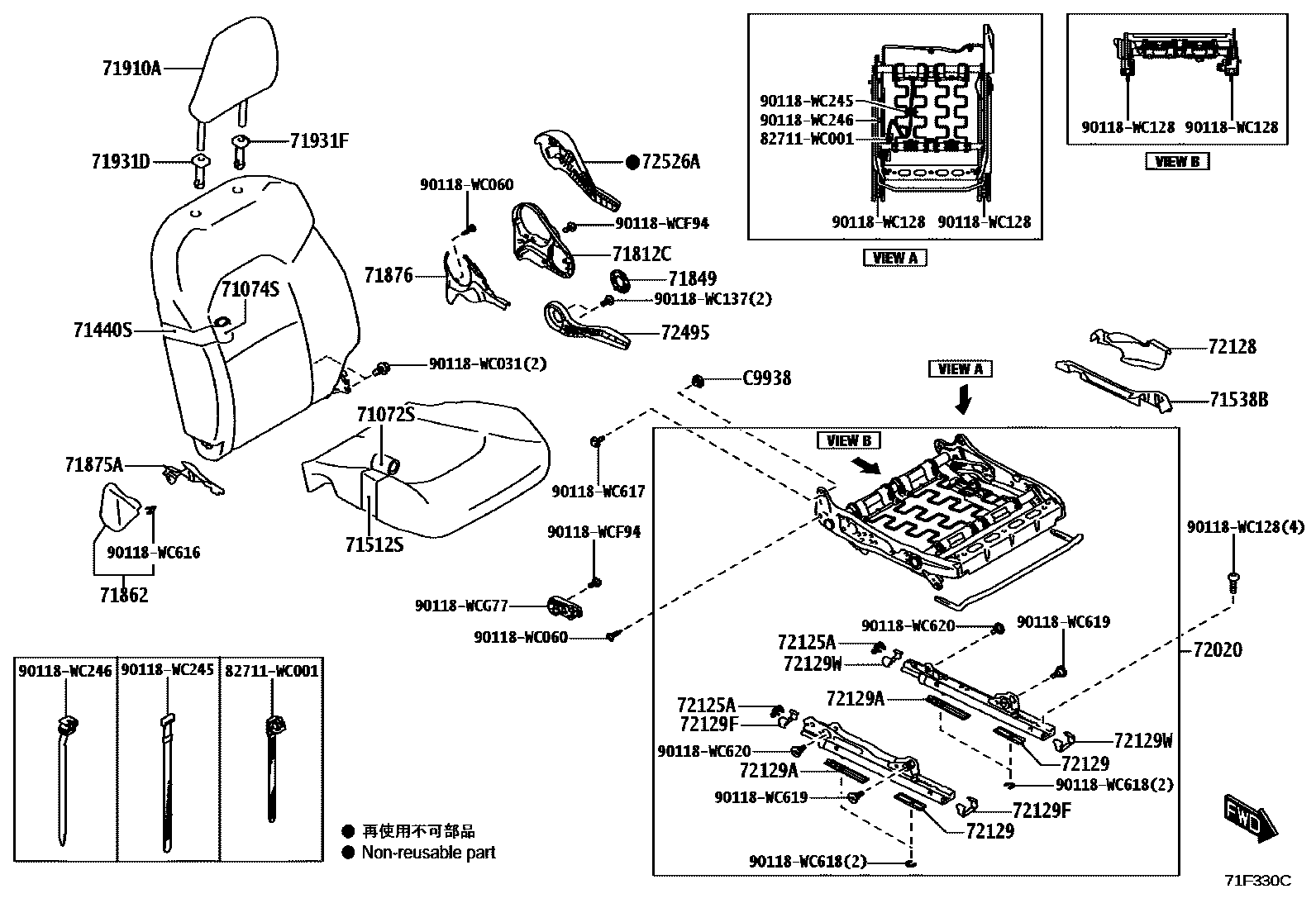

FRONT SEAT & SEAT TRACK

0001 1LH SEAT W/O(SIDE AIR BAG) 0002 1LH SEAT W(SIDE AIR BAG) 0003 1LH SEAT W/O(SIDE AIR BAG) 0004 1LH SEAT W(SIDE AIR BAG) 0005 1RH SEAT W/O(SIDE AIR BAG) 0006 1RH SEAT W(SIDE AIR BAG) 0007 1RH SEAT W/O(SIDE AIR BAG) 0008 1RH SEAT W(SIDE AIR BAG)

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71812CCOVER, RECLINING ADJUSTER, LH

71849CAP, SEAT ADJUSTER COVER, LH

main71848-WC001

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WC004

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-WC001

main71875-WC002

71910AHEADREST ASSY, FRONT SEAT

71931DSUPPORT, FRONT SEAT HEADREST, RH

71931FSUPPORT, FRONT SEAT HEADREST, LH

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-WC006

main72020-WC007

72125ACOVER, SEAT TRACK, UPPER REAR

72128SUPPORT, LH SEAT, OUTER

main71538-WC004

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72125-WC002

main72129-WC002

main72129-WC007

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72129FPROTECTOR, SEAT TRACK LOWER RAIL, NO.5

72129WPROTECTOR, SEAT TRACK LOWER RAIL, LH

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-WC001

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

C9938BUSH

main90118-WC621

82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-WC001

90118WC031

main90118-WC031

90118WC060

main90118-WC060

90118WC128

main90118-WC128

90118WC137

main90118-WC137

90118WC245

main90118-WC245

90118WC246

main90118-WC246

90118WC616

main90118-WC616

90118WC617

main90118-WC617

90118WC618

main90118-WC618

90118WC619

main90118-WC619

90118WC620

main90118-WC620

90118WCF94

main90118-WCF94

90118WCG77

main90118-WCG77

37 parts on this diagram · 8 diagrams in section
