SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53821FBRACKET, FRONT FENDER, REAR NO.2 RH
53822BBRACKET, FRONT FENDER, REAR LH
53822EBRACKET, FRONT FENDER, REAR NO.2 LH
58747GPROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH
61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61077CRAIL SUB-ASSY, NO.1 UPPER OUTER, RH
61087ERAIL SUB-ASSY, NO.1 UPPER OUTER, LH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61109CREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH
61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH
61211RAIL, ROOF SIDE, OUTER RH
main61211-WC007
61212RAIL, ROOF SIDE, OUTER LH
main61212-WC006
61301PILLAR SUB-ASSY, CENTER BODY, RH
main61305-WC009
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
main61306-WC008
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61411AREINFORCEMENT, ROCKER PANEL, NO.1 RH
61412AREINFORCEMENT, ROCKER PANEL, NO.1 LH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61608HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61611PANEL, QUARTER, RH
main61111-WC032
61612PANEL, QUARTER, LH
main61112-WC032
61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61625PPANEL, REAR BODY REAR SIDE CORNER, RH
61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61626PPANEL, REAR BODY REAR SIDE CORNER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61704HPANEL SUB-ASSY, QUARTER, INNER LH
61731PANEL, ROOF SIDE, INNER UPPER RH
main61731-WC006
61732PANEL, ROOF SIDE, INNER UPPER LH
main61732-WC005
61786FBRACKET, REAR BUMPER SIDE, RH
61787EBRACKET, REAR BUMPER SIDE, LH
61821SHEET, SILENCER, NO.1
main58681-WC001
61822SHEET, SILENCER, NO.2
main58682-WC001
61846PANEL, QUARTER INNER, LOWER REAR LH
main61068-WC001
62554DPAD, FRONT PILLER
65329BRACKET, REAR FENDER
main65329-WC001
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65632BPLATE, REAR WHELL HOUSE, FRONT LH
68981ARETAINER, BACK DOOR STAY, RH
68982ARETAINER, BACK DOOR STAY, LH
7701
90118WC127
main90118-WC127

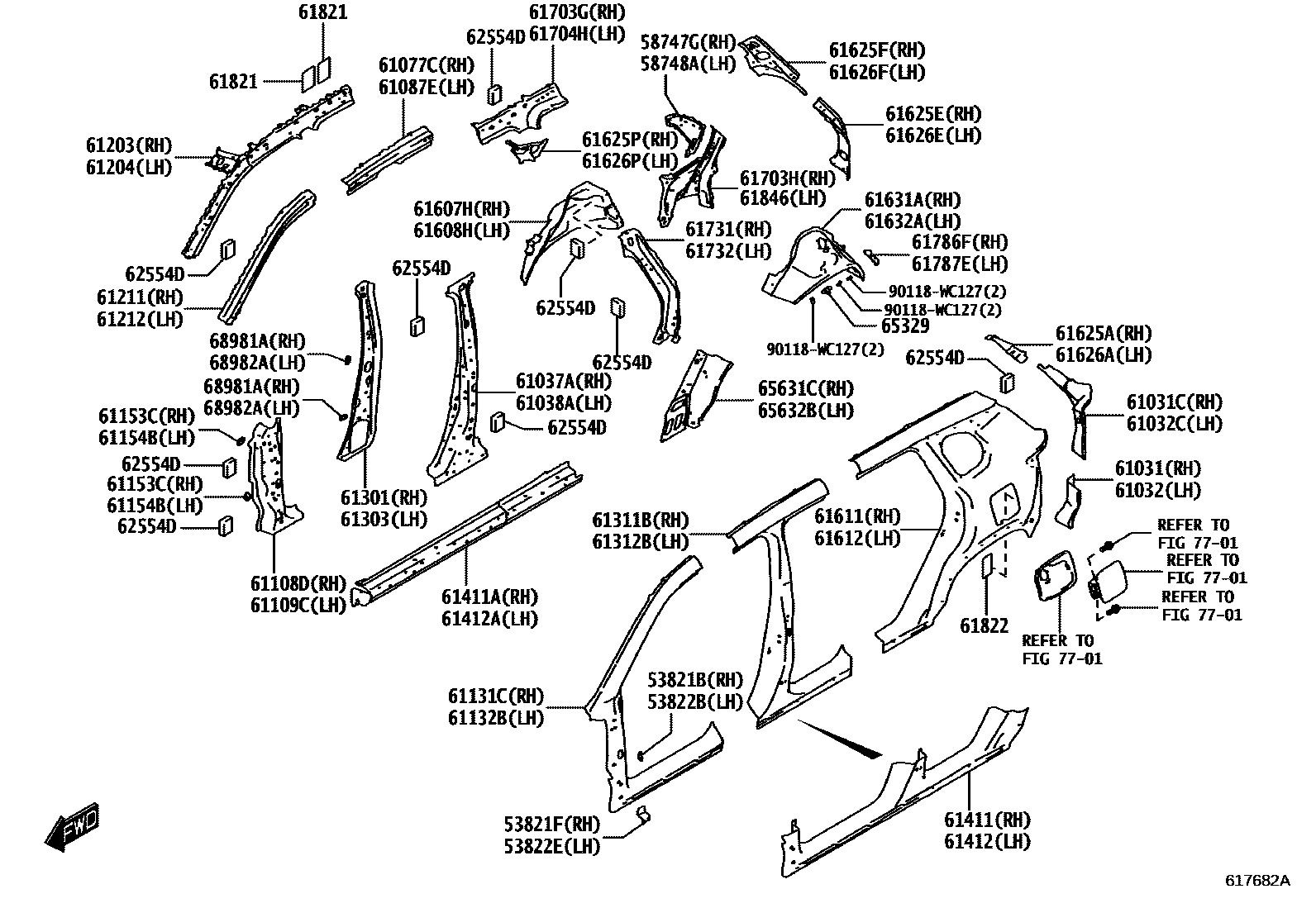

64 parts on this diagram · 5 diagrams in section
