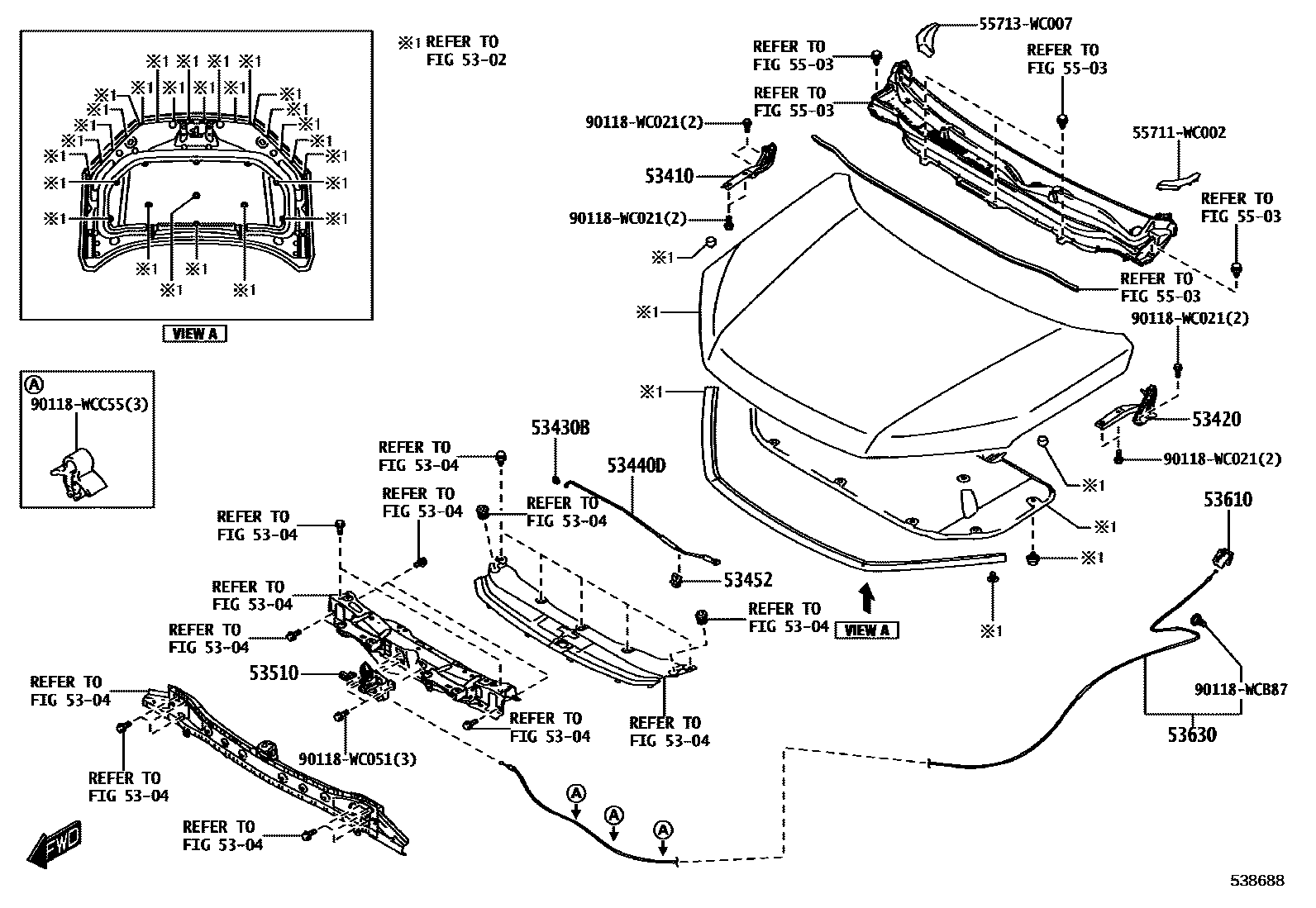

HOOD LOCK & HINGE

0001 1 0002 1

5302

5304

53410HINGE ASSY, HOOD, RH

main53410-WC006iFG6117K..SA202211

POS.46

53420HINGE ASSY, HOOD, LH

main53420-WC006iFG6117K..SA202211

POS.46

53430BGROMMET(FOR HOOD SUPPORT)

main90118-WCE54iFG6117K..SA202211

POS.46

53440DSUPPORT ASSY, HOOD

main53440-WC006iFG211XJ..MELE202302

POS.77

53452HOLDER, HOOD STAY

main90118-WCE60iFG211XJ..MELE202302

POS.77

53510LOCK ASSY, HOOD

main53510-WC017iFG6117K..SA202211

POS.43

main53510-WC018iFG6217D202402

POS.113

main53510-WC019iFG211XJ..MELE202302

POS.77

53610LEVER ASSY, HOOD LOCK RELEASE

main53510-WC015iFG211XJ..MELE202302

POS.77

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC007iFG6117K..SA202211

POS.43

main53630-WC008iFG6112A..GHA202211

POS.46

5503

55711WC002PANEL, COWL TOP, OUTER

main55711-WC002

55713WC007PANEL, FRONT WINDOW LOWER

main55713-WC007

90118WC021

main90118-WC021

90118WC051

main90118-WC051

90118WCB87

main90118-WCB87

90118WCC55

main90118-WCC55

17 parts on this diagram · 2 diagrams in section
