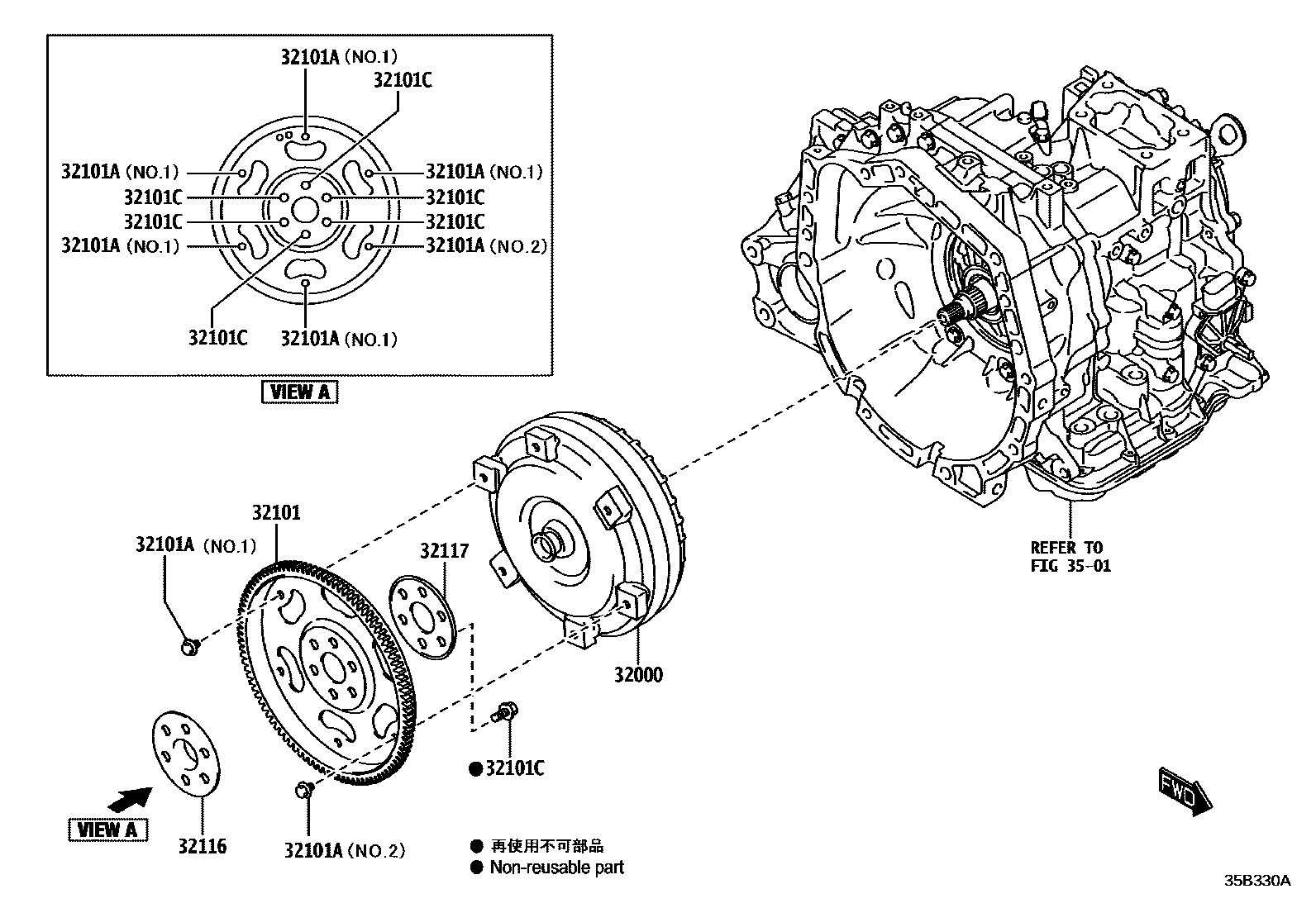

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1 0003 1 0004 1

32000CONVERTER ASSY, TORQUE

main32000-WC002

main32000-WC005

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-WC001

main32101-WC002

main90118-WC092

main90118-WC096

main90118-WC351

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32116SPACER, DRIVE PLATE, FRONT

main32116-WC001

main32116-WC002

32117SPACER, DRIVE PLATE, REAR

main32117-WC001

main32117-WC002

3501

7 parts on this diagram · 4 diagrams in section
