MANIFOLD

0001 1 0002 1 0003 1 0004 1

1703

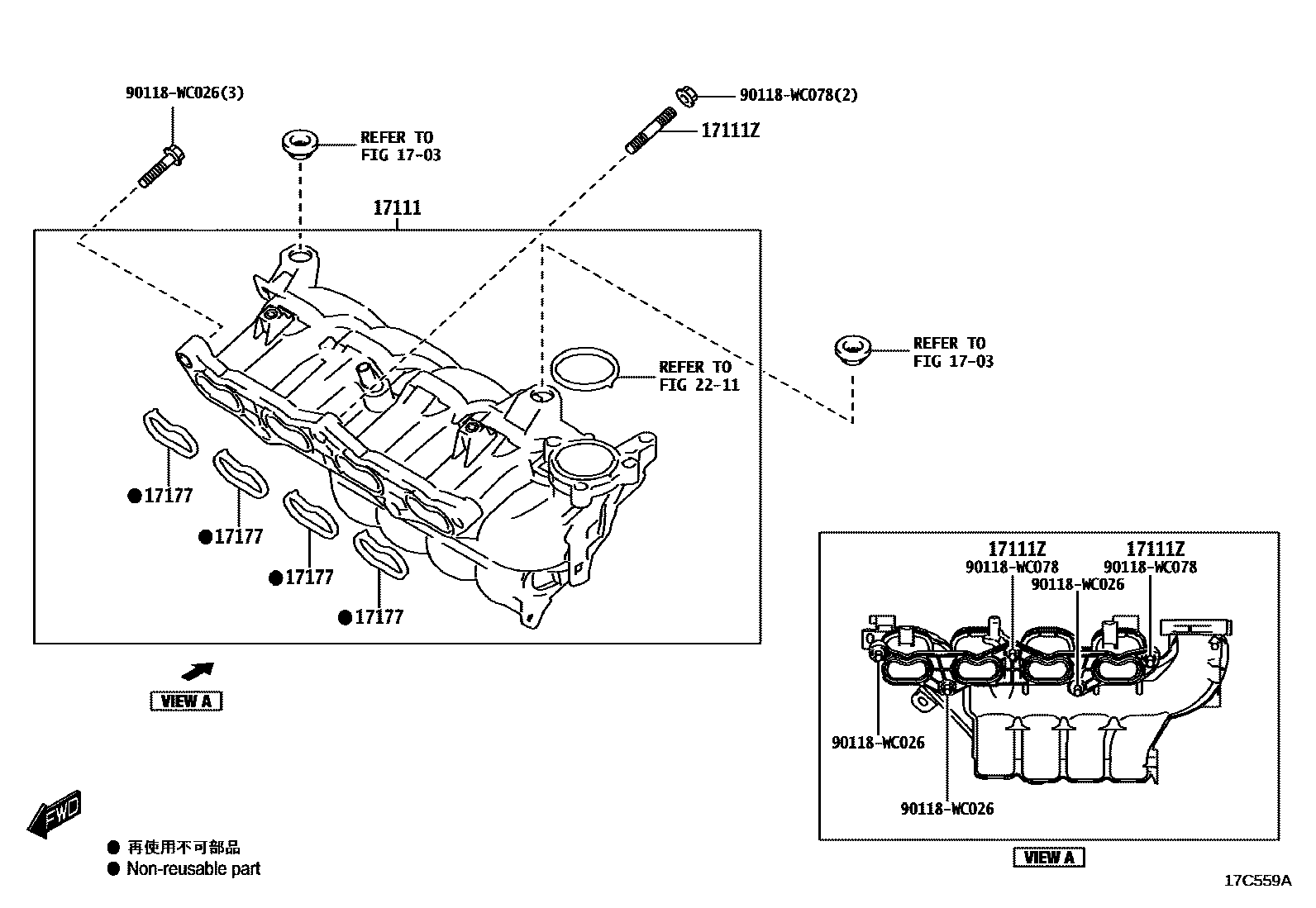

17111MANIFOLD, INTAKE

main90118-WC006

main17120-WC007

main17120-WC008

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-WC002

main17177-WC004

2211

90118WC026

main90118-WC026

90118WC078

main90118-WC078

7 parts on this diagram · 4 diagrams in section
