HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---MANUAL A/C 0002 1CONTROL PANEL & SENSOR---AUTO0003 1AIR DUCT(1/2) 0004 1AIR DUCT(2/2)---MANUAL A/C 0005 1AIR DUCT(2/2)---AUTO A/C 0006 1SENSOR

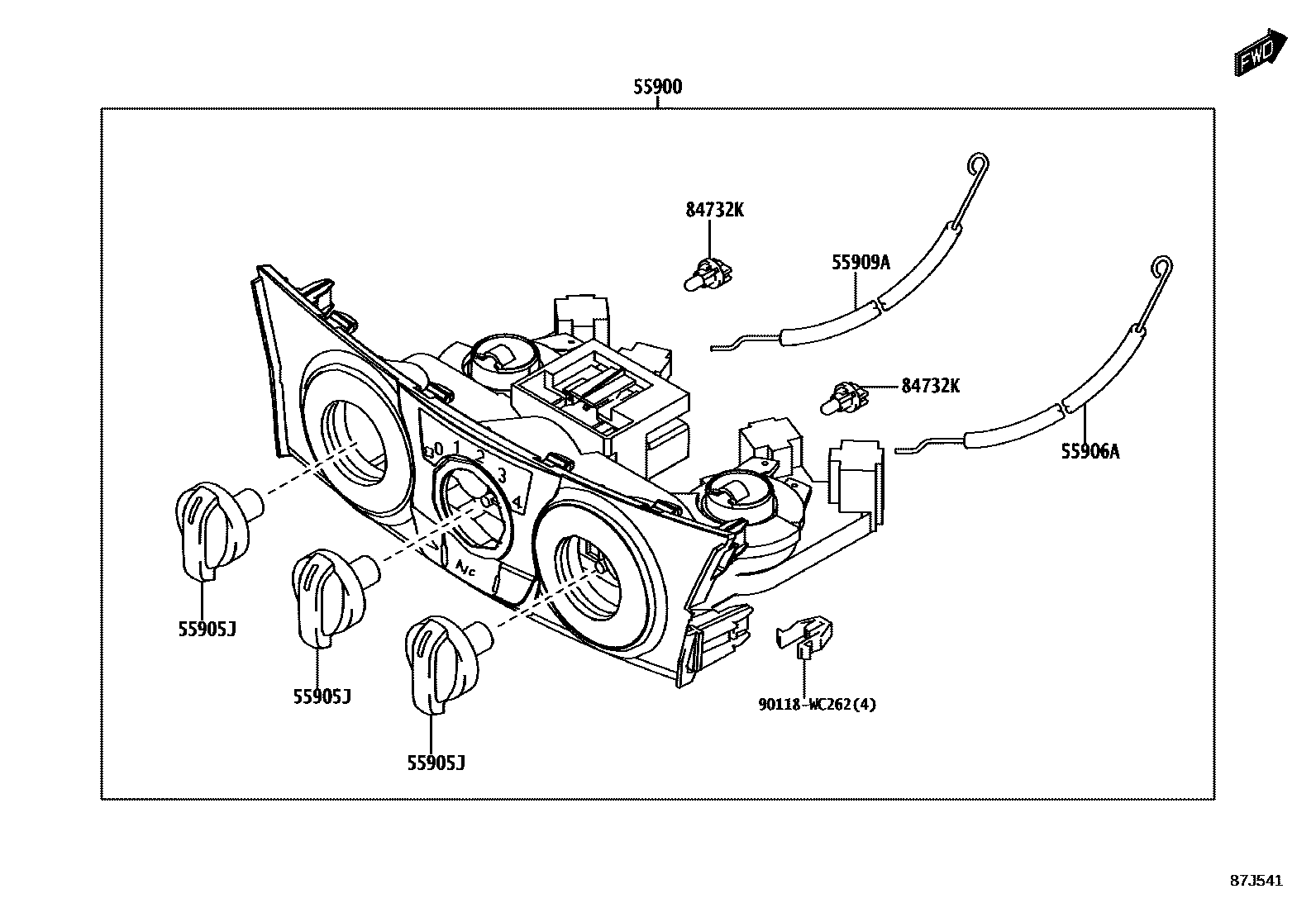

55900CONTROL ASSY, AIR CONDITIONER

main55900-WC004

main55900-WC005

main55900-WC006

55905JKNOB SUB-ASSY, CONTROL

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

84732KBULB, HEATER BLOWER SWITCH

90118WC262

main90118-WC262

6 parts on this diagram · 6 diagrams in section
