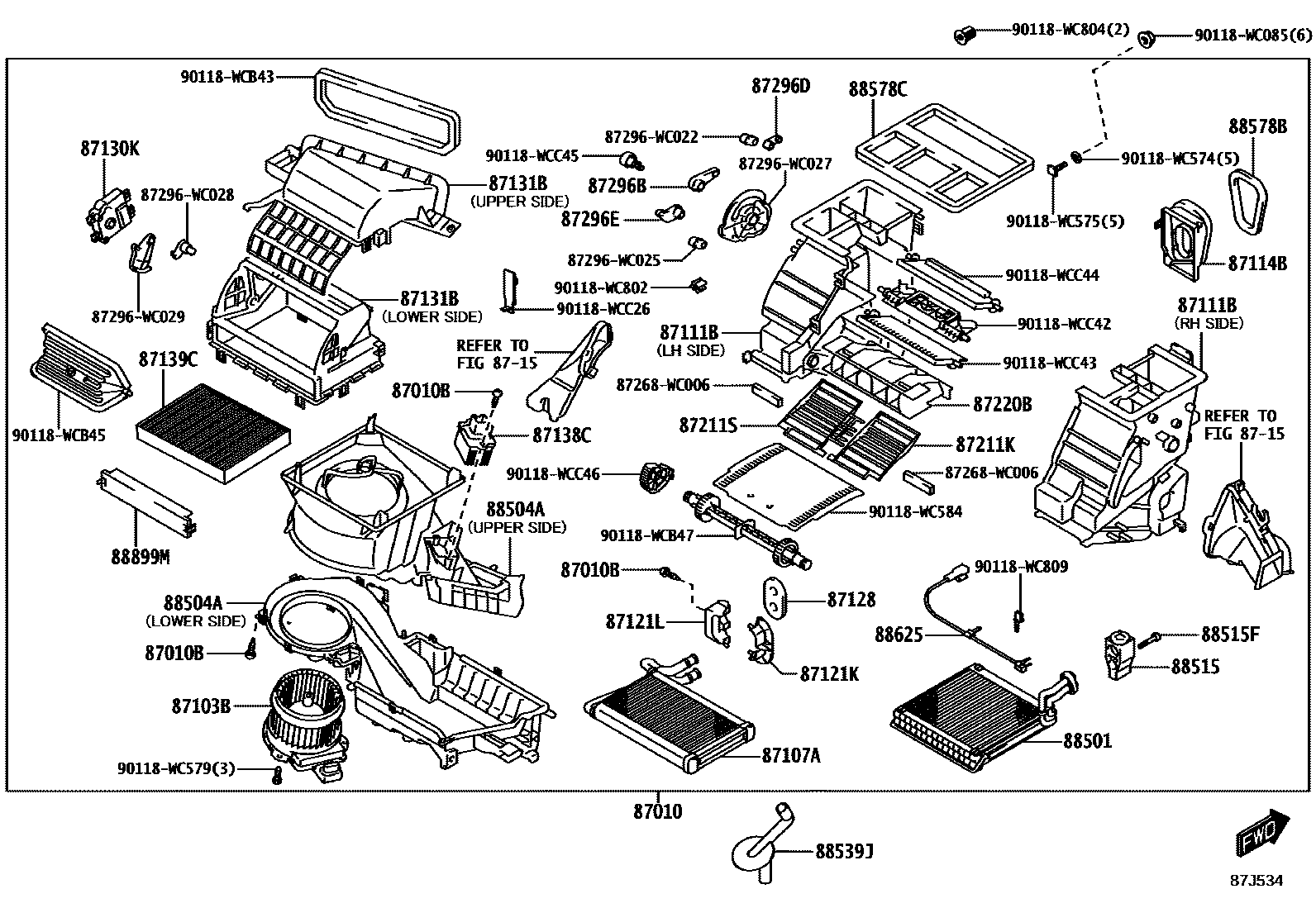

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87010UNIT ASSY, AIR CONDITIONER

main87010-WC005iK15B..4FC..M202012

POS.5,VENDOR 1

main87010-WC006iK15B..L202012

POS.2,VENDOR 1

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90118-WC053iK15B..L202012

POS.2

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-WC004iK15B202012

VENDOR 1

87107AUNIT SUB-ASSY, HEATER RADIATOR

main90118-WCC17iK15B202012

87111BCASE, HEATER

main88502-WC003iK15B..4FC..M202012

POS.3,RH SIDE

main88502-WC004iK15B..4FC..M202012

POS.3,LH SIDE

main88502-WC005iK15B..L202012

POS.2,RH SIDE

main88502-WC006iK15B..L202012

POS.2,LH SIDE

87114BCOVER, HEATER

main87114-WC003iK15B202012

87121KBRACKET, HEATER

main88688-WC005iK15B202012

87121LBRACKET, HEATER

main88688-WC006iK15B202012

87128GROMMET, HEATER

main87128-WC001iK15B202012

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-WC011iK15B..4FC..M202012

POS.5

main87106-WC012iK15B..L202012

POS.2

87131BCASE, HEATER BLOWER

main87103-WC007iK15B202012

UPPER SIDE

main87131-WC001iK15B..4FC..M202012

POS.4,LOWER SIDE

main87131-WC002iK15B..L202012

POS.2,LOWER SIDE

87138CRESISTOR, BLOWER

main87138-WC004iK15B..L202012

POS.2

87139CFILTER, CLEAN AIR

main87139-WC002iK15B202012

8715

87211KDUCT, AIR

main87211-WC007iK15B202012

87211SDUCT, AIR

main87211-WC008iK15B202012

87220BDUCT ASSY, AIR

main87211-WC009iK15B202012

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-WC017iK15B..4FC..M202012

POS.5

main87296-WC023iK15B..L202012

POS.2

87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2

main87296-WC018iK15B..4FC..M202012

POS.5

main87296-WC024iK15B..L202012

POS.2

87296ELEVER, HEATER AIR DAMPER CONTROL, NO.3

main87296-WC020iK15B..4FC..M202012

POS.5

main87296-WC026iK15B..L202012

POS.2

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-WC003iK15B202012

88504ACASE SUB-ASSY, BLOWER

main87103-WC005iK15B202012

UPPER SIDE

main87103-WC006iK15B202012

LOWER SIDE

88515VALVE, COOLER EXPANSION

main88515-WC002iK15B202012

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90118-WC578iK15B202012

88539JHOSE, DRAIN COOLER

main88539-WC003iK15B202012

88578BPACKING, COOLING UNIT, NO.1

main88578-WC002iK15B202012

88578CPACKING, COOLING UNIT, NO.2

main88578-WC011iK15B202012

88625THERMISTOR, COOLER, NO.1

main88625-WC003iK15B..4FC..M202012

POS.5

main88625-WC005iK15B..L202012

POS.2

88899MPLATE, COVER(FOR AIR FILTER)

main88899-WC001iK15B..4FC..M202012

POS.5

main88899-WC002iK15B..L202012

POS.2

87268WC006COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-WC006

87296WC022WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC022

87296WC025WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC025

87296WC027WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC027

87296WC028WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC028

87296WC029WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)

main87296-WC029

90118WC085

main90118-WC085

90118WC574

main90118-WC574

90118WC575

main90118-WC575

90118WC579

main90118-WC579

90118WC584

main90118-WC584

90118WC802

main90118-WC802

90118WC804

main90118-WC804

90118WC809

main90118-WC809

90118WCB43

main90118-WCB43

90118WCB45

main90118-WCB45

90118WCB47

main90118-WCB47

90118WCC26

main90118-WCC26

90118WCC42

main90118-WCC42

90118WCC43

main90118-WCC43

90118WCC44

main90118-WCC44

90118WCC45

main90118-WCC45

90118WCC46

main90118-WCC46

52 parts on this diagram · 2 diagrams in section
