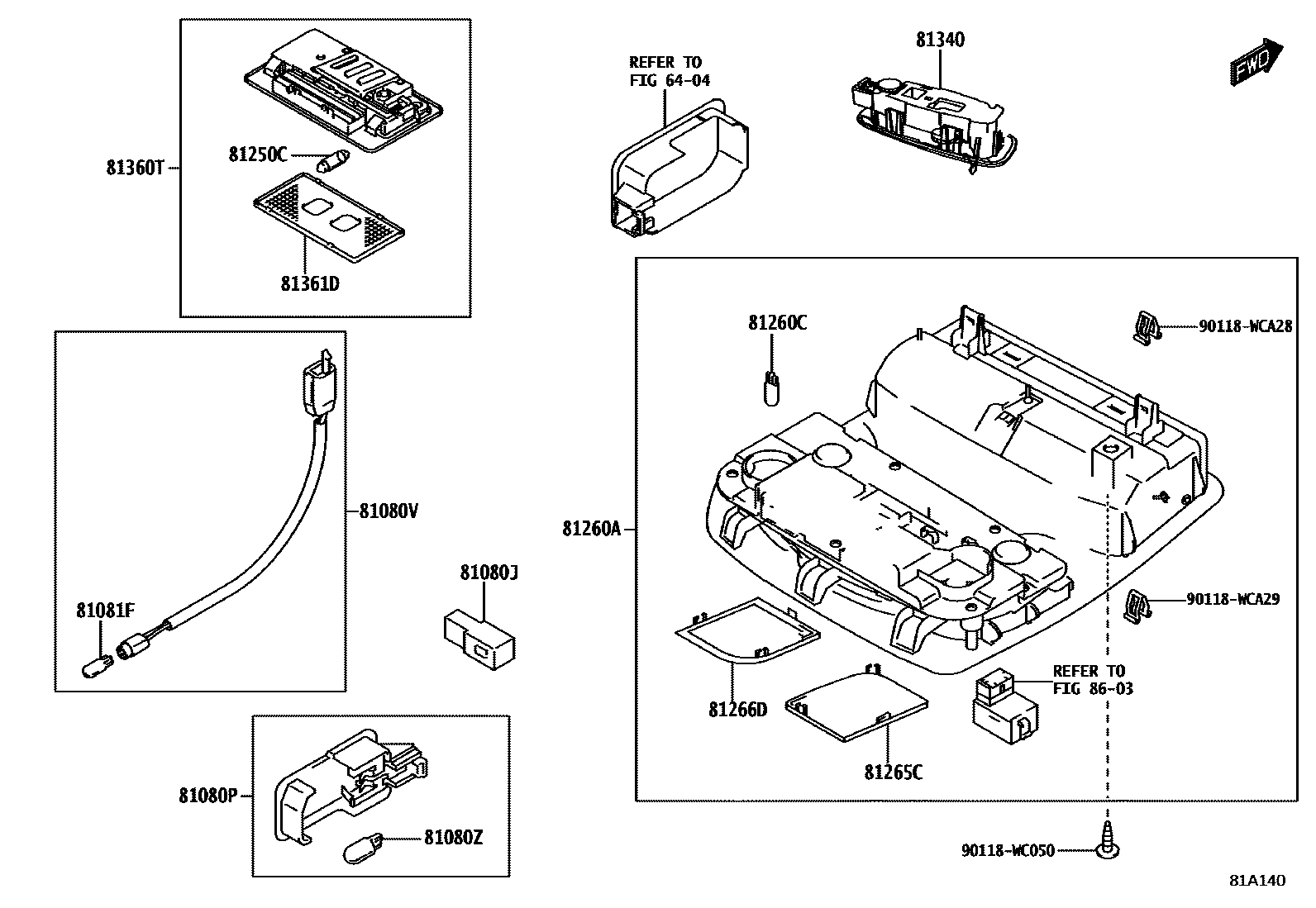

INTERIOR LAMP

6404

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-WC001iK15B202012

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-WC002iK15B202012

81080ZBULB, INTERIOR ILLUMINATION LAMP, NO.1

81081FBULB, INTERIOR ILLUMINATION LAMP, NO.2

main90118-WC268iK15B202012

12V 1.4W

81250CBULB, SPOT LAMP

main90118-WC270iK15B202012

12V 10W

81260ALAMP ASSY, MAP

main81260-WC004iK15B202012

81260CBULB(FOR MAP LAMP)

main90118-WCA30iK15B202012

12V 8W

81265CLENS, MAP LAMP, NO.1

main81361-WC001iK15B202012

81266DLENS, MAP LAMP, NO.2

main81361-WC002iK15B202012

81340LAMP ASSY, VANITY

main81230-WC017iK15B202012

81360TLAMP ASSY, SPOT

main81230-WC002iK15B202012

81361DLENS, SPOT LAMP

main81241-WC001iK15B202012

8603

90118WC050

main90118-WC050

90118WCA28

main90118-WCA28

90118WCA29

main90118-WCA29

18 parts on this diagram · 1 diagram in section
