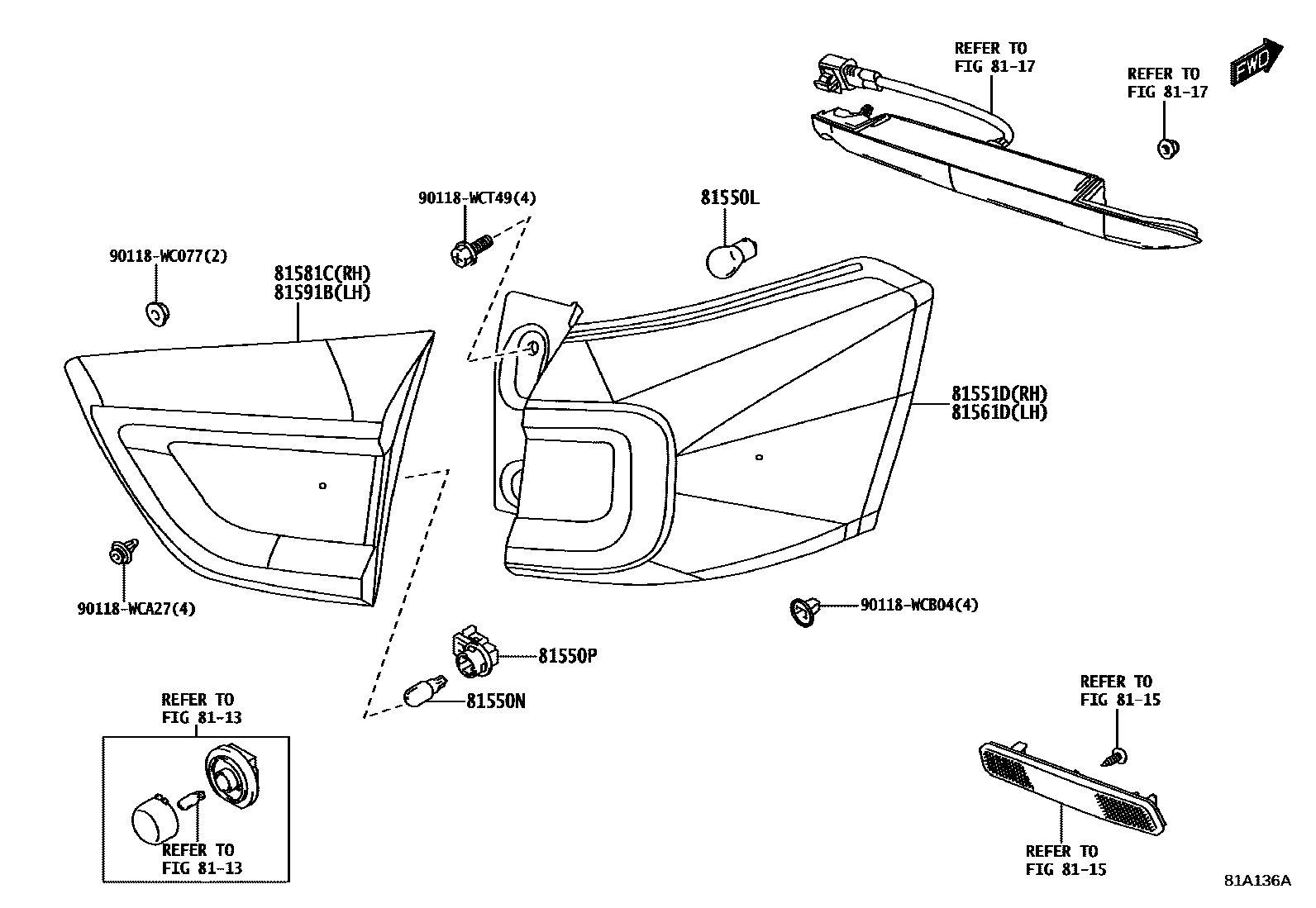

REAR COMBINATION LAMP

8113

8115

8117

81550LBULB, REAR TURN SIGNAL LAMP

main90118-WC274×2iK15B202012

12V 21W

81550NBULB, BACK UP LAMP

main90118-WC269×2iK15B202012

12V 16W

81550PSOCKET, BACK UP LAMP

main81515-WC002×2iK15B202012

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-WC003iK15B202012

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-WC003iK15B202012

81581CLENS AND BODY, REAR LAMP, RH

main81671-WC001iK15B202012

81591BLENS AND BODY, REAR LAMP, LH

main81681-WC001iK15B202012

90118WC077

main90118-WC077

90118WCA27

main90118-WCA27

90118WCB04

main90118-WCB04

90118WCT49

main90118-WCT49

14 parts on this diagram · 1 diagram in section
