BATTERY CARRIER

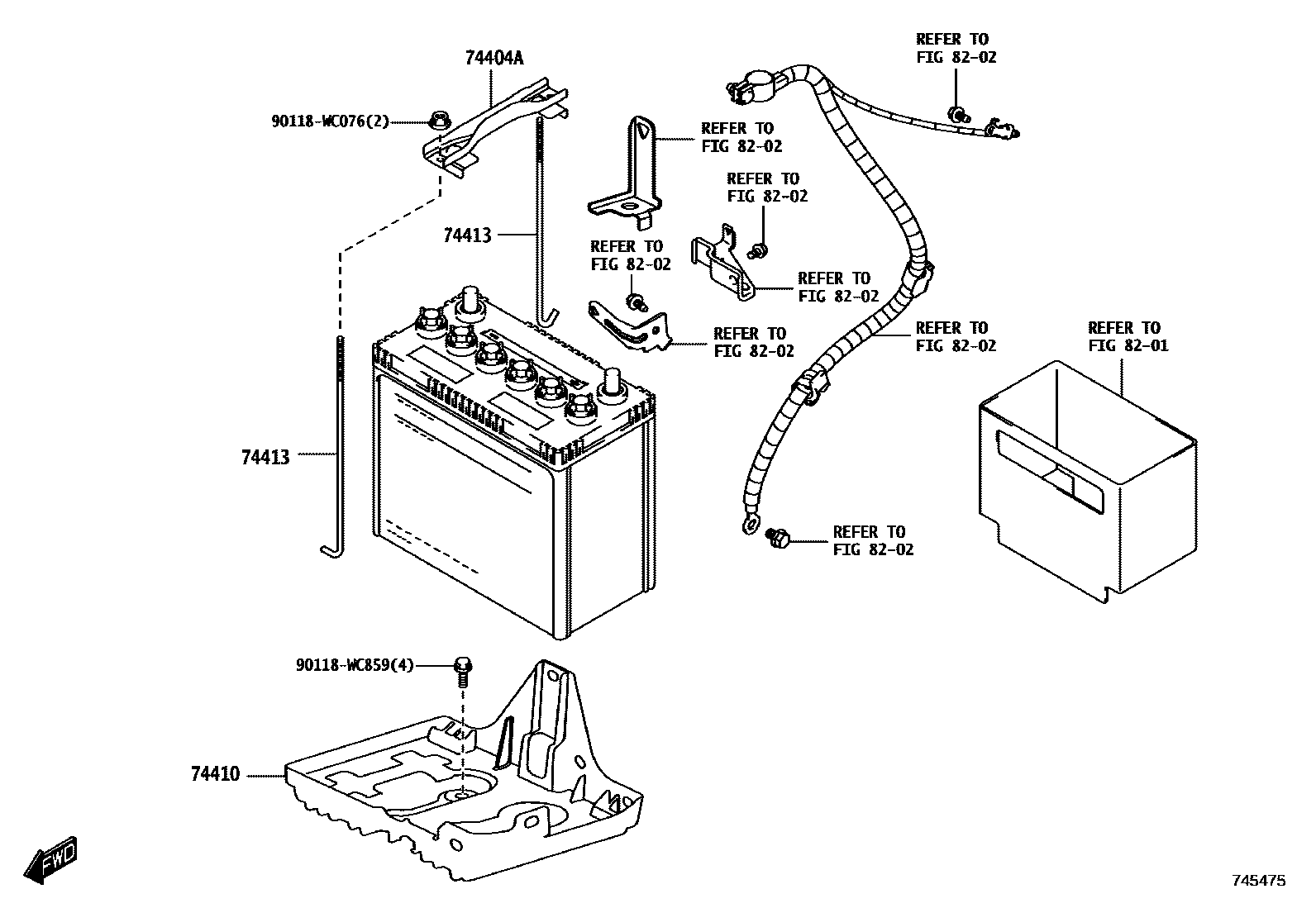

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-WC001i202012

74410CARRIER ASSY, BATTERY

main74410-WC003i202012

74413BOLT, BATTERY CLAMP

main74413-WC001i202012

8201

8202

90118WC076

main90118-WC076

90118WC859

main90118-WC859

7 parts on this diagram · 2 diagrams in section
