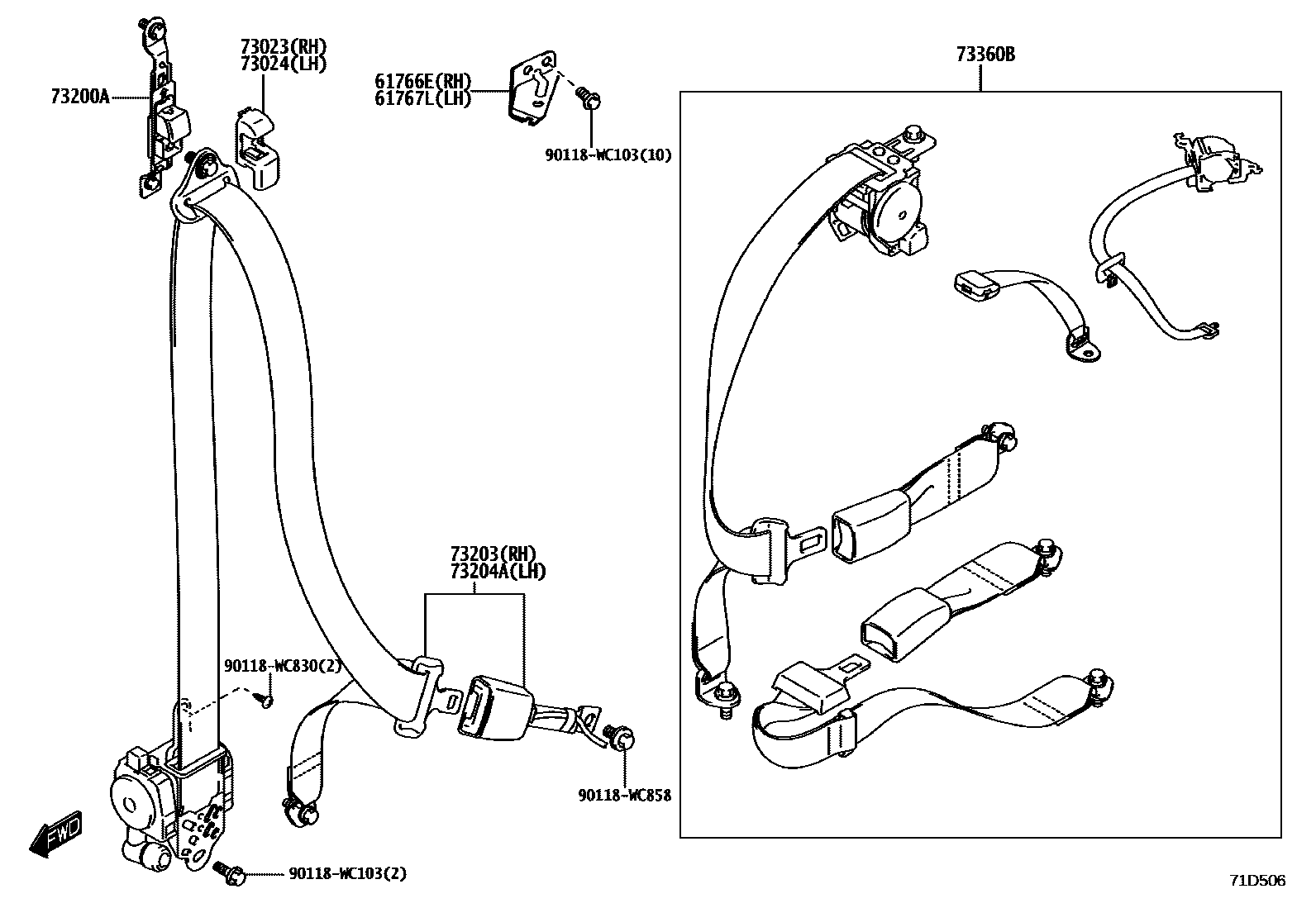

SEAT BELT & CHILD RESTRAINT SEAT
61766EREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767LREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
POS.1
POS.3
POS.4
POS.5
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
POS.1
POS.3
POS.4
POS.5
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
POS.1
POS.3
POS.4
POS.5
73203BELT SET, FRONT SEAT, RH
POS.1
POS.3
POS.4
POS.5
POS.2
73204ABELT SET, FRONT SEAT, LH
POS.1
POS.3
POS.4
POS.5
POS.2
73360BBELT ASSY, REAR SEAT, OUTER
90118WC103
main90118-WC103
90118WC830
main90118-WC830
90118WC858
main90118-WC858
11 parts on this diagram · 1 diagram in section
