SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
53835GBRACKET, FRONT SIDE PANEL, RH
53836FBRACKET, FRONT SIDE PANEL, LH
61011BPANEL SUB-ASSY, SIDE, OUTER RH
61012BPANEL SUB-ASSY, SIDE, OUTER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61077CRAIL SUB-ASSY, NO.1 UPPER OUTER, RH
61087ERAIL SUB-ASSY, NO.1 UPPER OUTER, LH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61109CREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH
61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61207CRAIL SUB-ASSY, ROOF SIDE, INNER NO.2 RH
61208CRAIL SUB-ASSY, ROOF SIDE, INNER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
POS.2
POS.3
61302PILLAR SUB-ASSY, CENTER BODY, LH
POS.2
POS.3
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61397BRETAINER, CENTER BODY PILLAR
61397CRETAINER, CENTER BODY PILLAR
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61608HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61617GPANEL, QUARTER, INNER REAR RH
61618APANEL, QUARTER, INNER REAR LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61637CBRACE, QUARTER WHEEL HOUSE, NO.2 RH
61637DREINFORCEMENT, QUARTER, INNER RH
61638CBRACE, QUARTER WHEEL HOUSE, NO.2 LH
61638DREINFORCEMENT, QUARTER, INNER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61647CREINFORCEMENT, WHEEL HOUSE, RH
61648CREINFORCEMENT, WHEEL HOUSE, LH
61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH
61692GREINFORCE, REAR SEATBACK LOCK STRIKER, LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61704HPANEL SUB-ASSY, QUARTER, INNER LH
61708AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH
61709AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

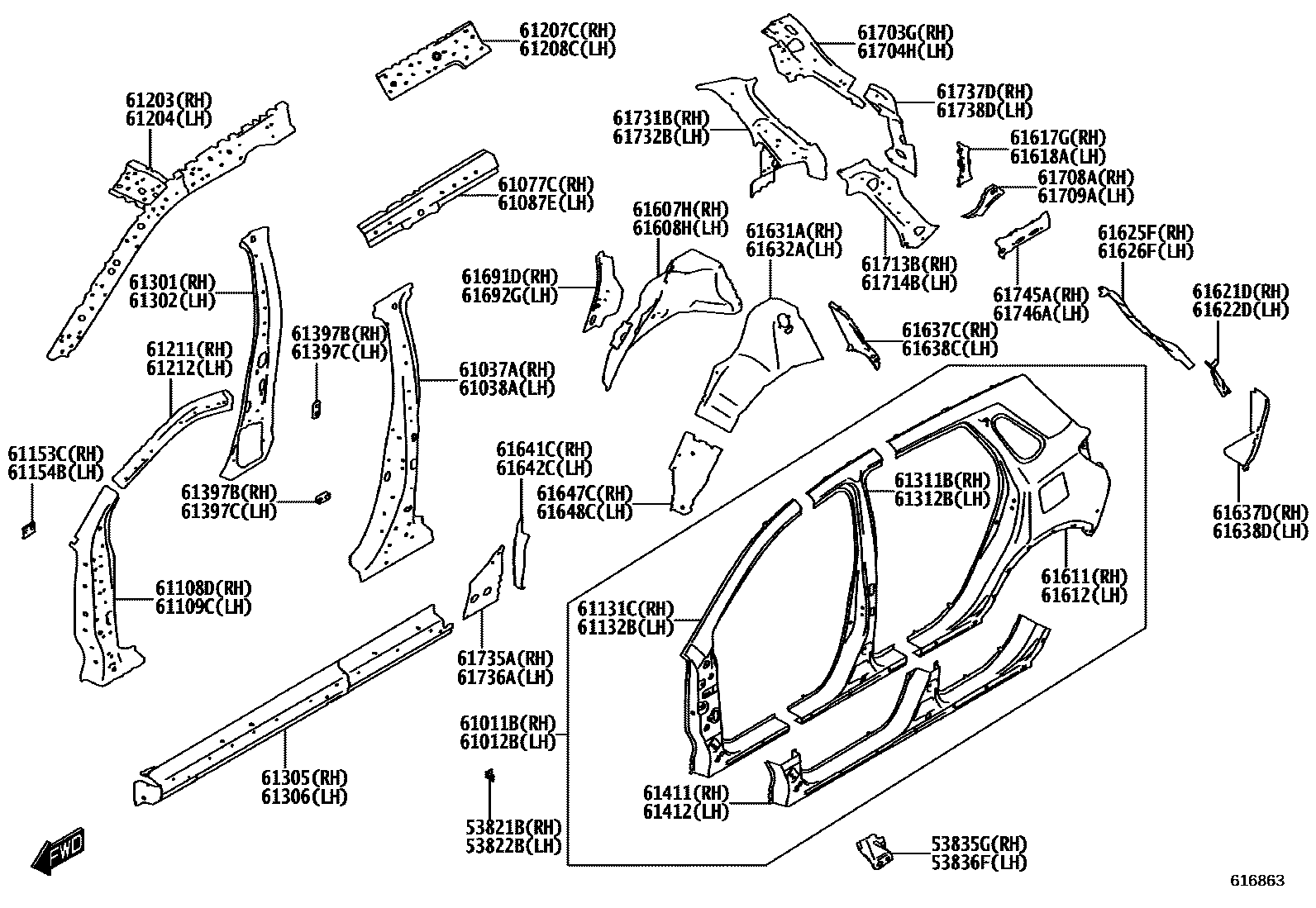

68 parts on this diagram · 2 diagrams in section
