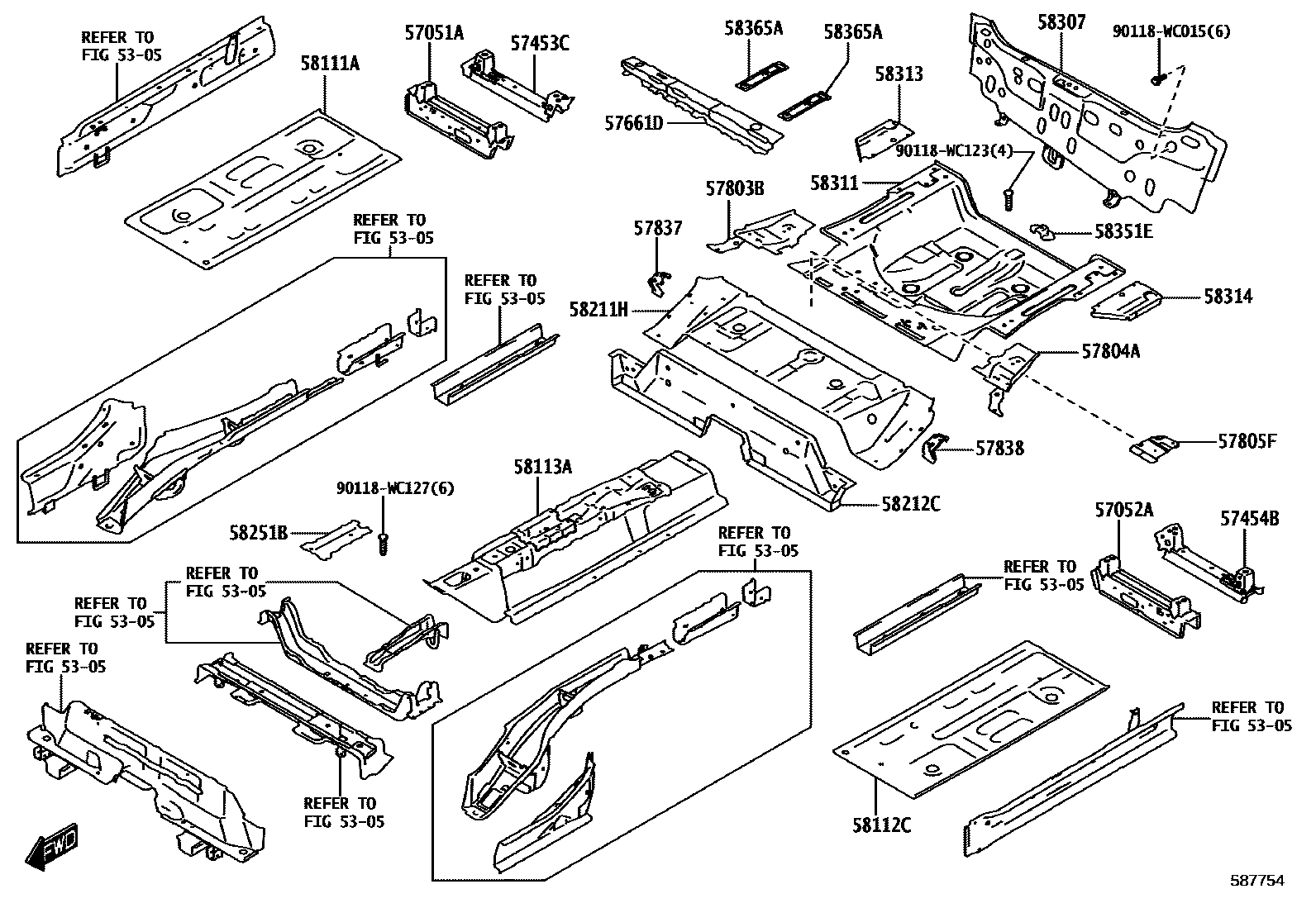

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-WC003iK15B202012

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-WC003iK15B202012

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-WC002iK15B202012

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-WC001iK15B202012

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-WC005iK15B202012

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-WC001iK15B202012

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-WC001iK15B202012

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-WC001iK15B202012

57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-WC001iK15B202012

57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-WC001iK15B202012

58111APAN, FRONT FLOOR, RH

main58111-WC003iK15B202012

58112CPAN, FRONT FLOOR, LH

main58112-WC004iK15B202012

58113APANEL, FRONT FLOOR, CENTER

main58113-WC005iK15B202012

58211HPAN, CENTER FLOOR

main58211-WC003iK15B202012

58212CPAN, CENTER FLOOR, FRONT

58251BBRACE, FLOOR PANEL, FRONT

main58251-WC001iK15B202012

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-WC004iK15B202012

58311PAN, REAR FLOOR

main58311-WC005iK15B202012

58313PANEL, REAR FLOOR SIDE, RH

main58313-WC001iK15B202012

58314PANEL, REAR FLOOR SIDE, LH

main58314-WC001iK15B202012

58351EBRACKET, SPARE WHEEL CLAMP

main58351-WC002iK15B202012

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-WC002iK15B202012

90118WC015

main90118-WC015

90118WC123

main90118-WC123

90118WC127

main90118-WC127

26 parts on this diagram · 2 diagrams in section
