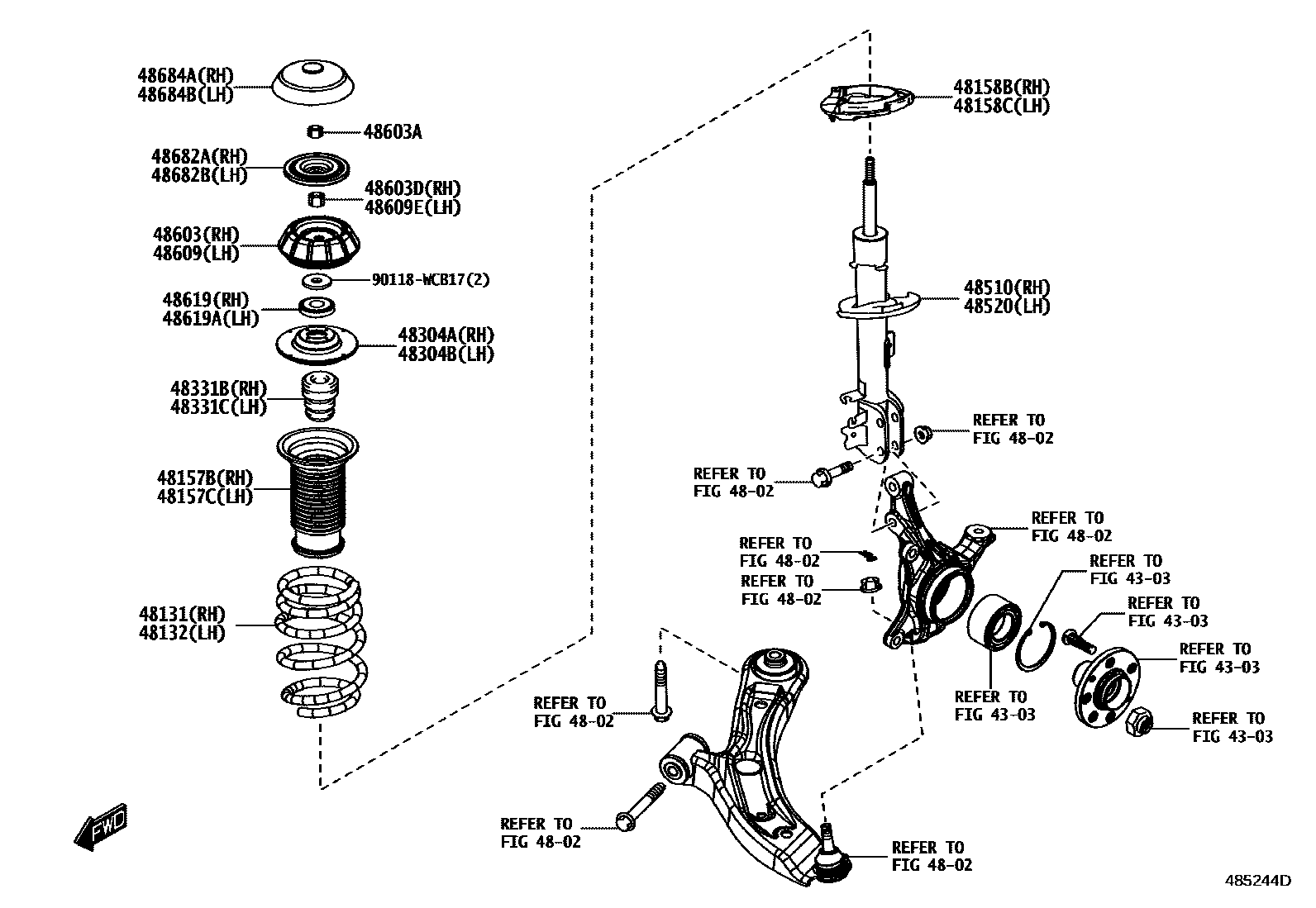

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4303

4802

48131SPRING, FRONT COIL, RH

main48131-WC022iK15B202012

48132SPRING, FRONT COIL, LH

main48131-WC022iK15B202012

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48559-WC003iK15B202012

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48559-WC003iK15B202012

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-WC002iK15B202012

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-WC002iK15B202012

48304ASEAT SUB-ASSY, BUMPER, RH

main48471-WC002iK15B202012

48304BSEAT SUB-ASSY, BUMPER, LH

main48471-WC002iK15B202012

48331BBUMPER, FRONT SPRING, RH

main48331-WC002iK15B202012

48331CBUMPER, FRONT SPRING, LH

main48331-WC002iK15B202012

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-WC003iK15B202012

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-WC003iK15B202012

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-WC002iK15B202012

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90118-WC075iK15B202012

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90118-WC873iK15B202012

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-WC002iK15B202012

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90118-WC873iK15B202012

48619BEARING, STRUT MOUNTING, RH

main48619-WC001iK15B202012

48619ABEARING, STRUT MOUNTING, LH

main48619-WC001iK15B202012

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-WC002iK15B202012

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-WC002iK15B202012

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-WC001iK15B202012

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-WC001iK15B202012

90118WCB17

main90118-WCB17

26 parts on this diagram · 2 diagrams in section
