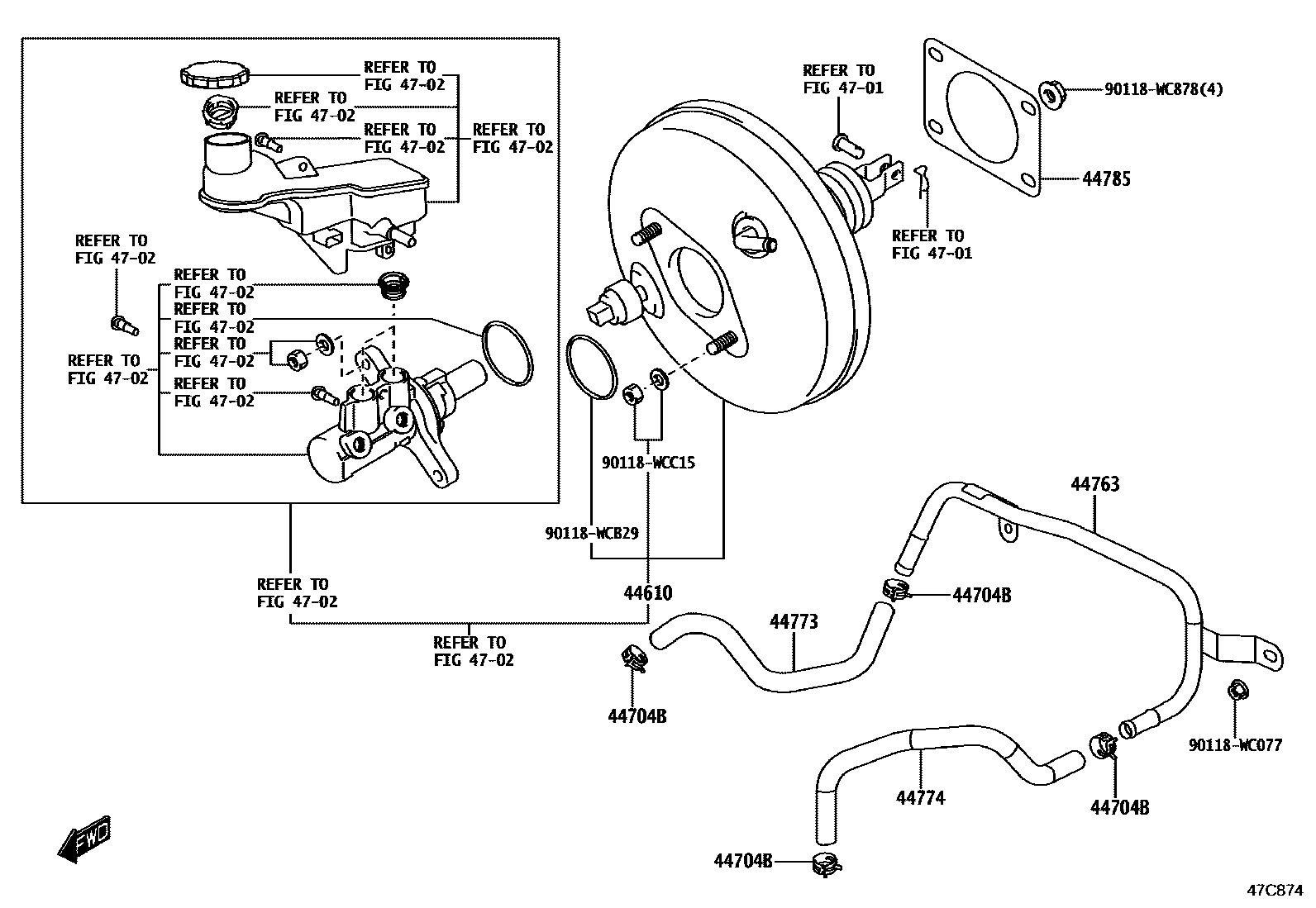

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-WC008

main44610-WC009

44704BCLIP(FOR HOSE)

main90118-WC237iK15B202012

44763TUBE, BOOSTER VACUUM

main44763-WC002iK15B202012

44773HOSE, VACUUM, NO.2

main44773-WC003iK15B202012

44774HOSE, UNION TO CONNECTOR TUBE

main44774-WC003iK15B202012

44785GASKET, BRAKE BOOSTER

main44785-WC002iK15B202012

4701

4702

90118WC077

main90118-WC077

90118WC878

main90118-WC878

90118WCB29

main90118-WCB29

90118WCC15

main90118-WCC15

12 parts on this diagram · 2 diagrams in section
