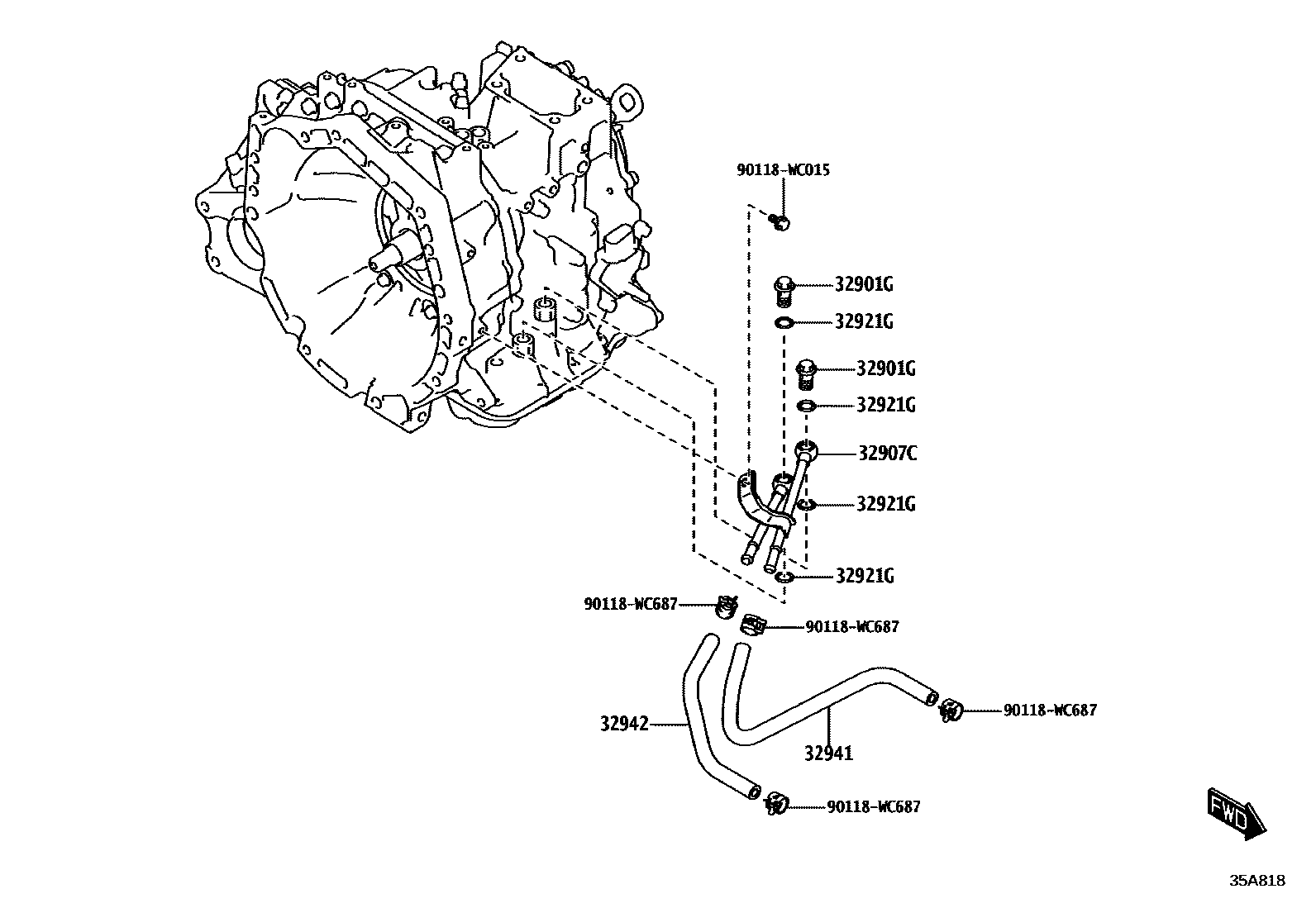

OIL COOLER & TUBE (ATM)

32901GBOLT, UNION(FOR OIL COOLER)

main90118-WC737iK15B..4FC..M202012

POS.4

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32904-WC001iK15B..4FC..M202012

POS.4

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90118-WC736iK15B..4FC..M202012

POS.4

32941HOSE, OIL COOLER INLET, NO.1

main32941-WC003iK15B..4FC..M202012

POS.4

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-WC003iK15B..4FC..M202012

POS.4

90118WC015

main90118-WC015

90118WC687

main90118-WC687

7 parts on this diagram · 1 diagram in section
