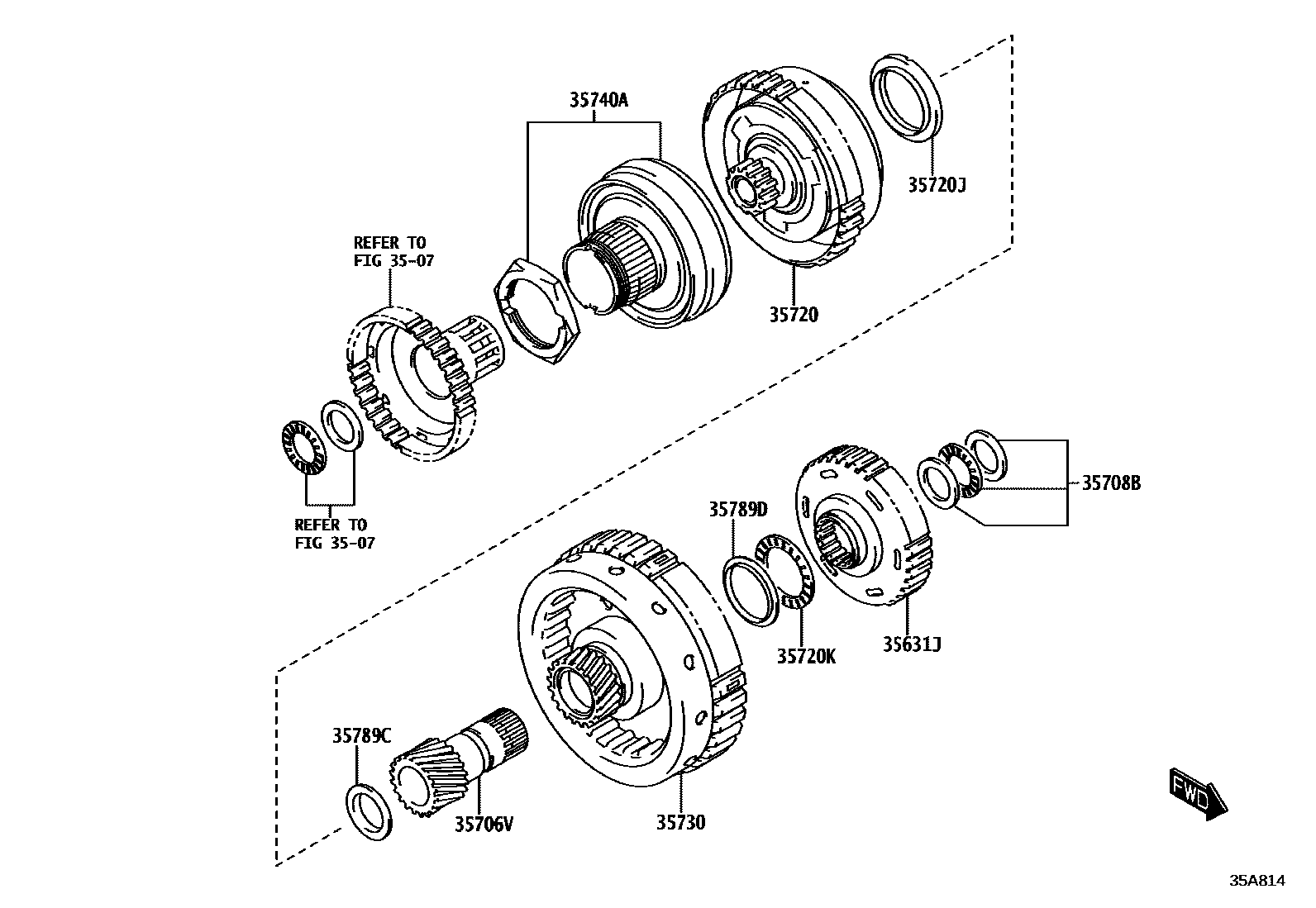

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

3507

35631JHUB, FORWARD CLUTCH, NO.1

35706VGEAR SUB ASSY, PLANETARY SUN

35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)

35720GEAR ASSY, FRONT PLANETARY

main35720-WC001

main90118-WC755

main90118-WC757

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

35730GEAR ASSY, REAR PLANETARY SUN

main35730-WC001

35740AGEAR ASSY,FRONT PLANETARY RING

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

11 parts on this diagram · 1 diagram in section
