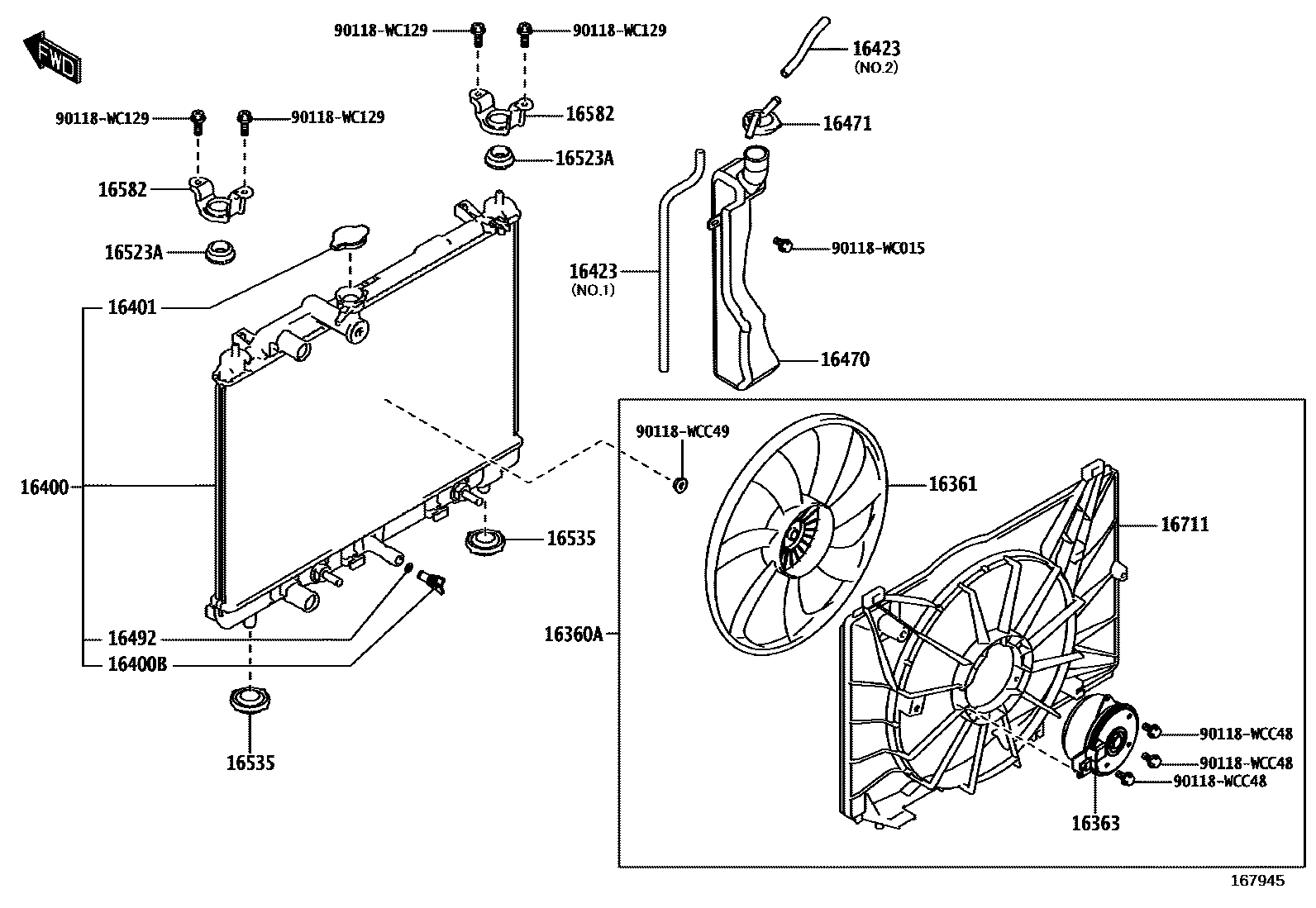

RADIATOR & WATER OUTLET

0001 1 0002 1

16360AFAN ASSY, W/MOTOR

main16360-WC002iK15B..K15B202012

16361FAN

main16361-WC002iK15B..K15B202012

16363MOTOR, COOLING FAN

main16363-WC003iK15B..K15B202012

16400RADIATOR ASSY

main16400-WC003iK15B..K15B..5F..P202012

POS.1

main16400-WC003iK15B..K15B..5F..P202012

POS.2

main16400-WC003iK15B..K15B..5F..P202012

POS.3

main16400-WC004iK15B..K15B..4FC..P202012

POS.4

main16400-WC004iK15B..K15B..4FC..P202012

POS.5

16400BPLUG, RADIATOR DRAIN COCK

main16417-WC001iK15B..K15B202012

16401CAP SUB-ASSY, RADIATOR

main16401-WC001iK15B..K15B202012

16423HOSE, RADIATOR TANK

main16377-WC002iK15B..K15B202012

NO.1

main90118-WCA13iK15B..K15B202012

NO.2

16470TANK ASSY, RADIATOR RESERVE

main16470-WC002iK15B..K15B202012

16471CAP SUB-ASSY, RESERVE TANK

main16471-WC001iK15B..K15B202012

16492RING, O(FOR RADIATOR RESERVE TANK COCK)

main16492-WC001iK15B..K15B202012

16523ACUSHION, RADIATOR SUPPORT

main16523-WC002iK15B..K15B202012

16535SUPPORT, RADIATOR, LOWER

main90118-WC349iK15B..K15B202012

16582BRACKET, RADIATOR, NO.1

main90118-WCA55iK15B..K15B202012

16711SHROUD, FAN

main16711-WC002iK15B..K15B202012

90118WC015

main90118-WC015

90118WC129

main90118-WC129

90118WCC48

main90118-WCC48

90118WCC49

main90118-WCC49

18 parts on this diagram · 2 diagrams in section
