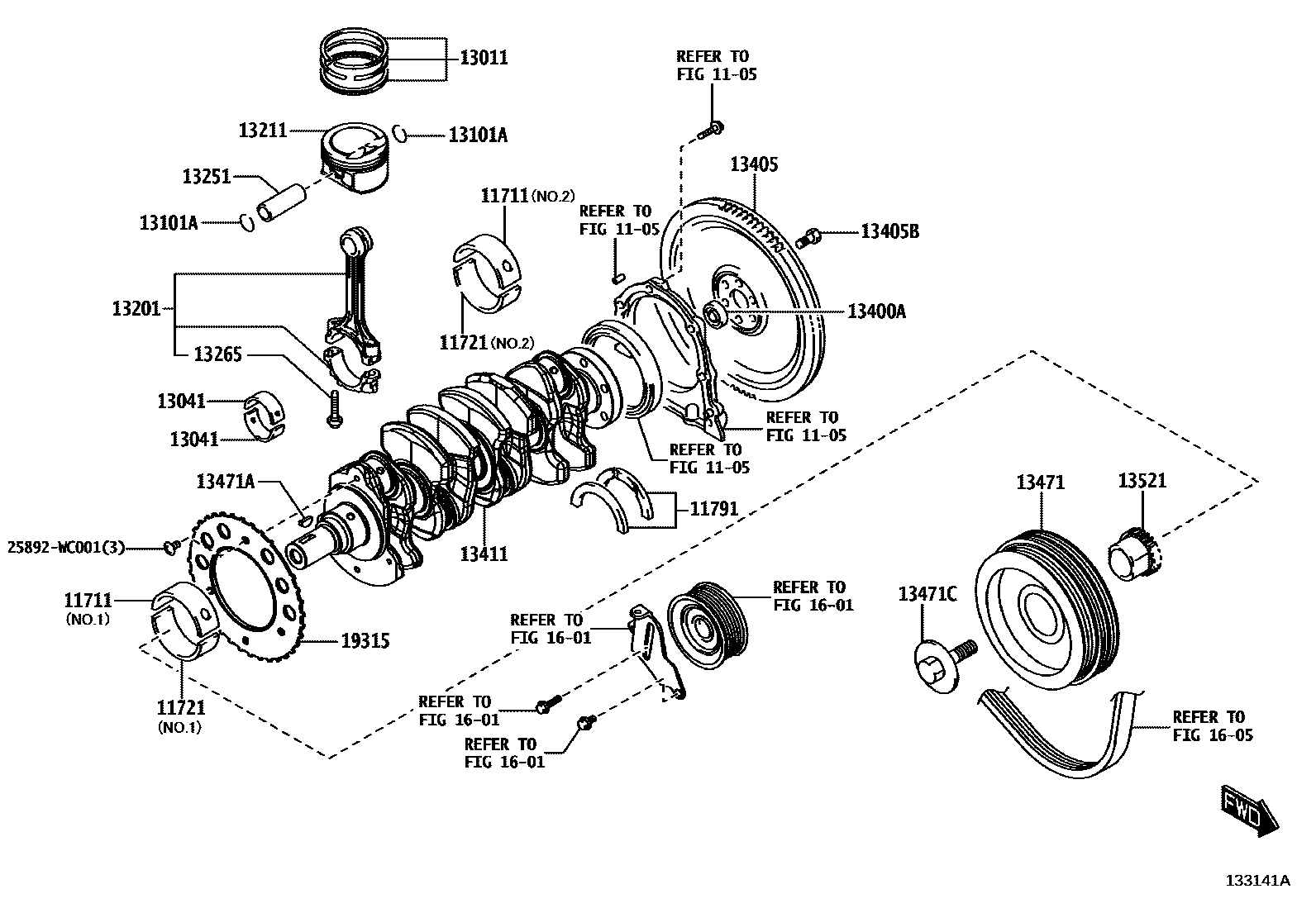

CRANKSHAFT & PISTON
1105
11711BEARING, CRANKSHAFT
NO.1,RED/PINK
NO.1,PINK
NO.1,RED/PURPLE
NO.1,PURPLE
NO.1,RED/BROWN
NO.1,BROWN
NO.1,RED/GREEN
NO.1,GREEN
NO.1,RED/BLACK
NO.1,BLACK
NO.2,RED/PINK
NO.2,PINK
NO.2,RED/PURPLE
NO.2,PURPLE
NO.2,RED/BROWN
NO.2,BROWN
NO.2,RED/GREEN
NO.2,GREEN
NO.2,RED/BLACK
NO.2,BLACK
11721BEARING, CRANKSHAFT, NO.2
NO.1,RED/PINK
NO.1,PINK
NO.1,RED/PURPLE
NO.1,PURPLE
NO.1,RED/BROWN
NO.1,BROWN
NO.1,RED/GREEN
NO.1,GREEN
NO.1,RED/BLACK
NO.1,BLACK
NO.2,RED/PINK
NO.2,PINK
NO.2,RED/PURPLE
NO.2,PURPLE
NO.2,RED/BROWN
NO.2,BROWN
NO.2,RED/GREEN
NO.2,GREEN
NO.2,RED/BLACK
NO.2,BLACK
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
U/S 0.125
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
GREEN
BLACK
NO PAINT
YELLOW
BLUE
RED
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13211PISTON
13251PIN, PISTON
13265BOLT, CONNECTING ROD
13400ABEARING(FOR CRANKSHAFT)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
1601
1605
19315PLATE, CRANK ANGLE SENSOR, NO.1
25892WC001
main25892-WC001
23 parts on this diagram · 1 diagram in section
