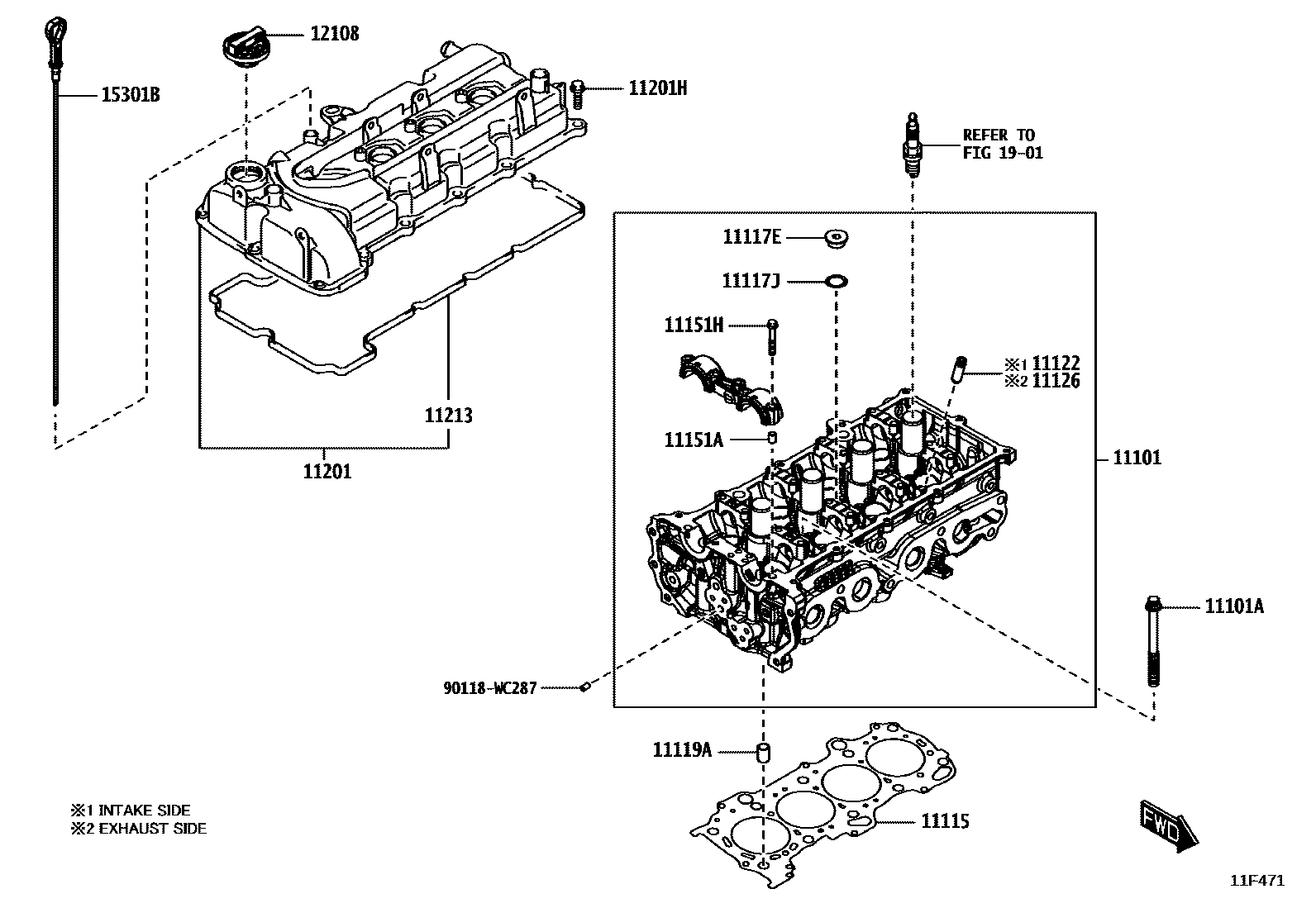

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-WC004iK15B..K15B202012

11101ABOLT(FOR CYLINDER HEAD SET)

main90118-WCA42iK15B..K15B202012

11115GASKET, CYLINDER HEAD

main11115-WC003iK15B..K15B202012

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90118-WC202iK15B..K15B202012

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90118-WC640iK15B..K15B202012

11119APIN, STRAIGHT, NO.1

main90118-WC067iK15B..K15B202012

11122BUSH, INTAKE VALVE GUIDE

main11122-WC002iK15B..K15B202012

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-WC002iK15B..K15B202012

STD

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90118-WC195iK15B..K15B202012

L=11,OD=8

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90118-WCA43iK15B..K15B202012

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-WC003iK15B..K15B202012

11201HBOLT(FOR CYLINDER HEAD COVER)

main90118-WC292iK15B..K15B202012

11213GASKET, CYLINDER HEAD COVER

main11213-WC003iK15B..K15B202012

12108CAP SUB-ASSY, OIL FILLER

main12180-WC001iK15B..K15B202012

15301BGAGE SUB-ASSY, OIL LEVEL

main15301-WC001iK15B..K15B202012

90118WC287

main90118-WC287

16 parts on this diagram · 2 diagrams in section
