ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0D440iNGK12;NGK15..X..AGT;NGK11,15..XLS,XS201209-201604

main86101-0D690iNGK12;NGK15..X..AGT;NGK11,15..XLS,XS201409-201604

main86101-0DB70iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D380iNGK1#201209-201604

main86101-0DB60iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

86300ANTENNA ASSY, W/HOLDER

main86300-0D210iNGK1#201209-201604

main86300-0D440iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D100iNGK1#201209-201604

main86309-0K090iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

86396NUT, ANTENNA

main86396-47010iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

9011906915

main90119-06915

9017905011

main90179-05011

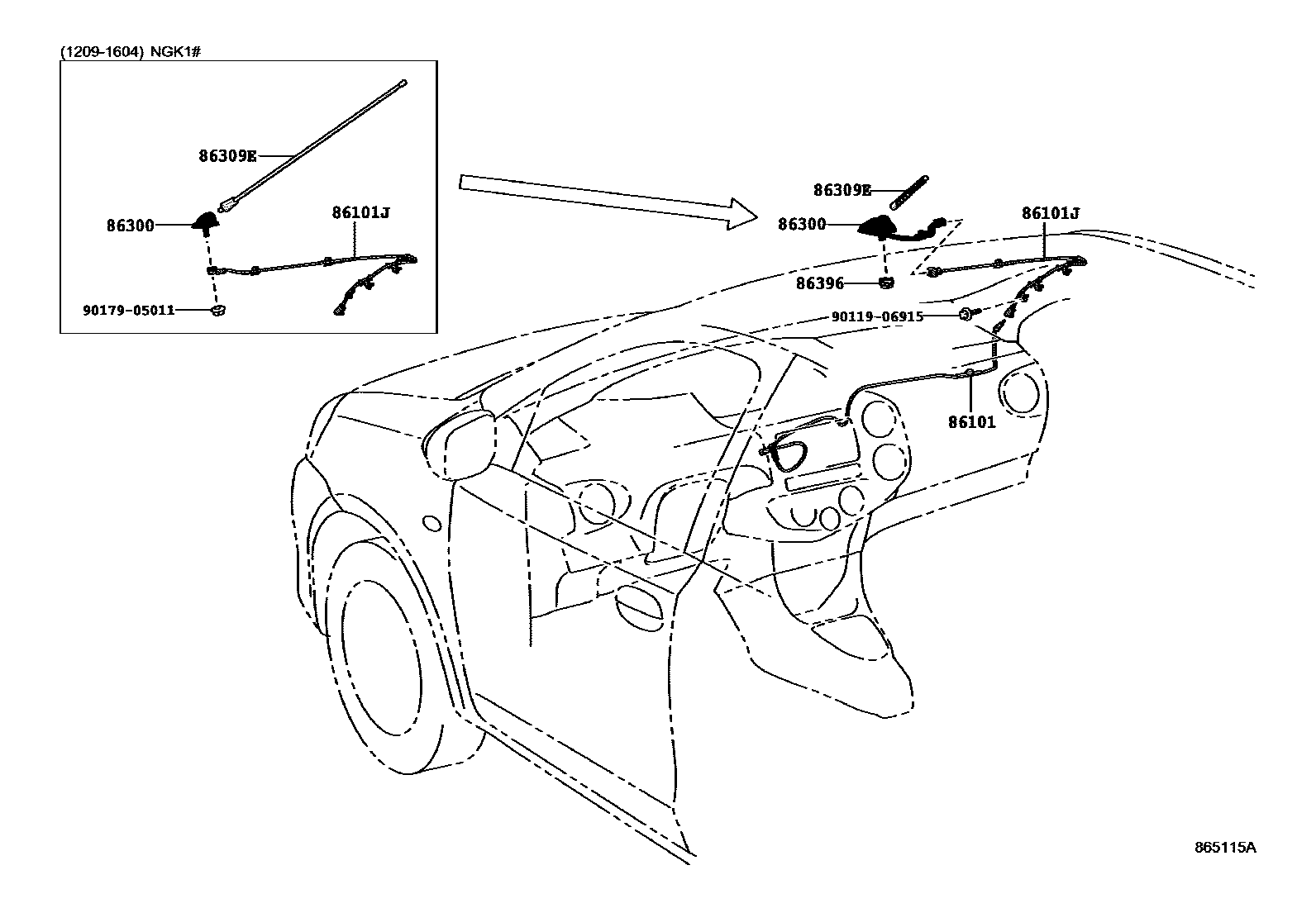

7 parts on this diagram · 1 diagram in section
