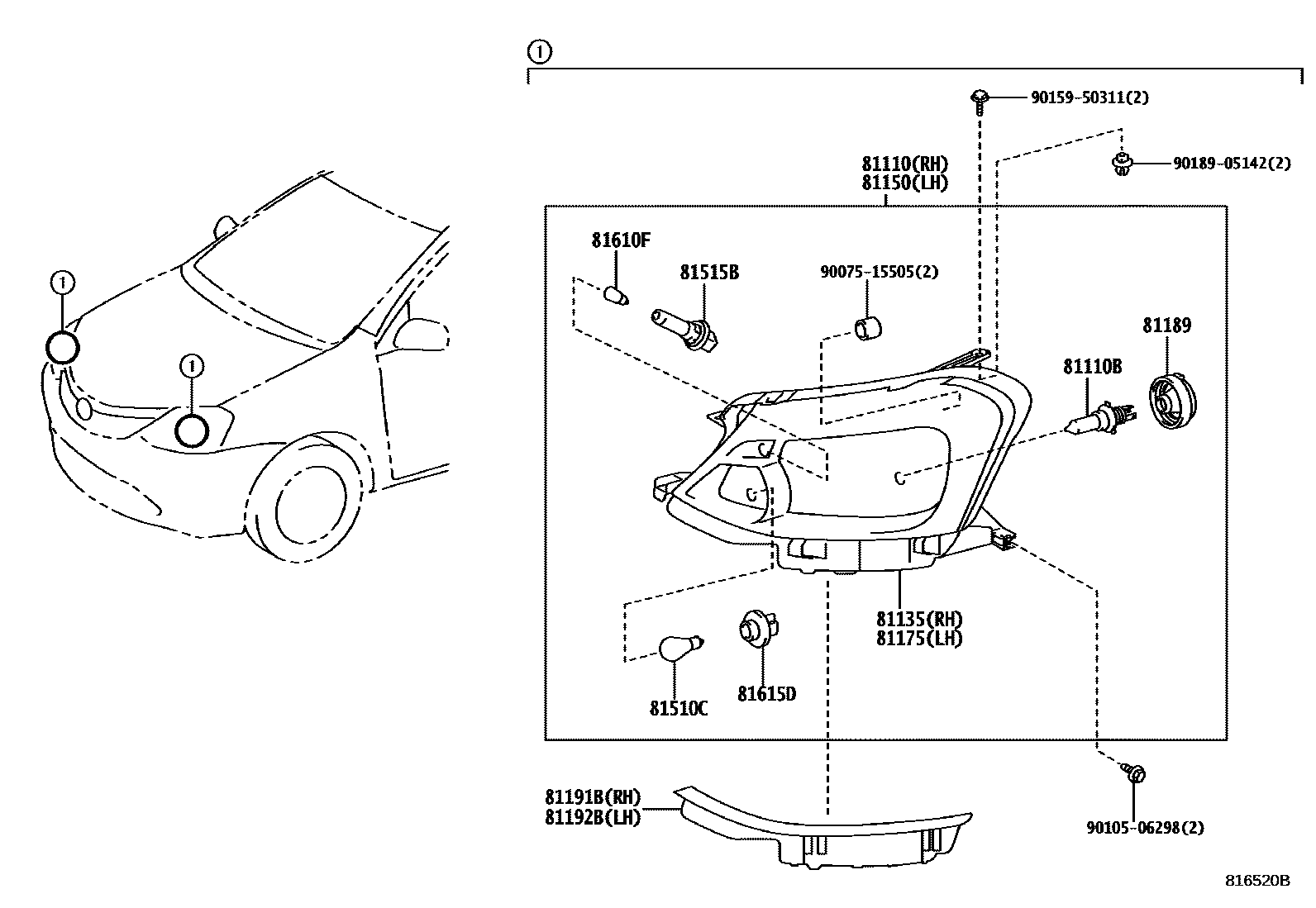

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-0D440iNGK1#201209-201309

main81110-0D441iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201309-202103

main81110-0D800iNGK12..CROSS201311-201802

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0D440iNGK1#201209-201309

main81130-0D441iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201309

main81130-0D800iNGK12..CROSS201311-201802

81150HEADLAMP ASSY, LH

main81150-0D440iNGK1#201209-201309

main81150-0D441iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201309

main81150-0D800iNGK12..CROSS201311-201802

81175UNIT ASSY, HEADLAMP, LH

main81170-0D440iNGK1#201209-201309

main81170-0D441iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201309-202103

main81170-0D800iNGK12..CROSS201311-201802

81189COVER, HEADLAMP

main90075-65002×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

81191BTAPE, HEADLAMP, RH

main81191-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201212-202103

81192BTAPE, HEADLAMP, LH

main81192-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201212-202103

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF005×2iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201209

12V 21W

main99132-12050iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201309

12V 5W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60077×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNGK12..CROSS201311-201802

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60069×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

9007515505

main90075-15505

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

16 parts on this diagram · 2 diagrams in section
