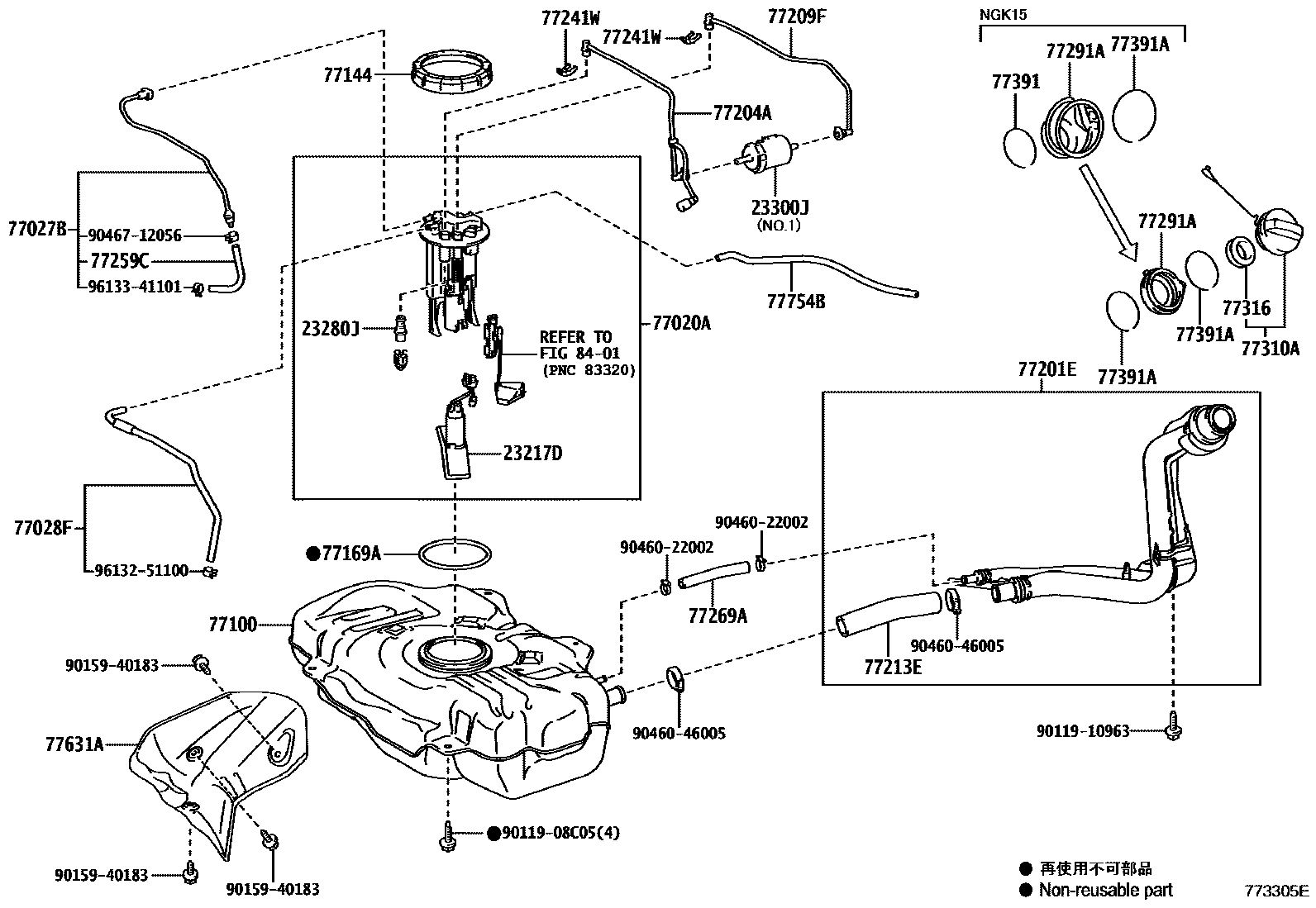

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1SUB TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0Y020i2NRFE..NGK12,15201309

main23217-47010i1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS201209-202103

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i2NRFE..NGK12,15201309

main23280-47010i2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS)201209-202103

23300JFILTER ASSY, FUEL

main23300-0D100i1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS201209-202103

NO.1

main23300-0Y010i1NRFBE,2NRFBE..NGK1#201209-201604

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D090iNGK12,15..AGT201309

main77020-0D140iNGK1#..BZ201209-201604

main77020-0D270iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-0D030iNGK1#..BZ201209-201604

77028FTUBE SUB-ASSY, FUEL EMISSION, NO.2

main77028-52060iNGK12,15..AGT201309

main77028-52070iNGK11..4FC,5F;NGK12,15..5F..BZ;NGK12..(4FC,6F)..(CROSS,XLS)..BZ201209-202103

77100TANK ASSY, FUEL

main77001-0D140iNGK12,15..AGT201309-202208

sub77001-0D141

main77001-0D141iNGK12,15..AGT202209

main77001-0D150iNGK11..4FC,5F;NGK12,15..5F..BZ;NGK12..(4FC,6F)..(CROSS,XLS)..BZ201209-202208

sub77001-0D151

main77001-0D151iNGK11..4FC;NGK12..XLS..BZ202209

77144RETAINER, FUEL PUMP GAUGE

main77144-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D060iNGK1#201209-202304

main77169-0D070iNGK1#202308

main77169-0D120iNGK1#202304-202308

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77210-0D170iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77204ATUBE, FUEL TANK RETURN

main77204-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D080iNGK12,15..AGT201309

main77209-0D090iNGK11..4FC,5F;NGK12,15..5F..BZ;NGK12..(4FC,6F)..(CROSS,XLS)..BZ201209-202103

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-52220iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77241WCLIP, TUBE JOINT

main77241-33011iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77259CHOSE, FUEL

main77259-52130iNGK1#..BZ201209-201604

77269AHOSE, FUEL TANK BREATHER

main77269-52110iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D110iNGK15..5F;NGK15..(4FC,6F)..AGT201209-202103

main77291-0D120iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

77310ACAP ASSY, FUEL TANK

main77300-52030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77316GASKET, FUEL TANK CAP

main77316-52040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77391RING, FUEL INLET BOX

main77391-02020iNGK15..(4FC,6F)..BZ201209-202103

77391ARING, FUEL INLET BOX

main77391-42010iNGK15..(4FC,6F)..BZ201209-202103

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-52070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

8401

9011908C05

main90119-08C05

9011910963

main90119-10963

9015940183

main90159-40183

9046022002

main90460-22002

9046046005

main90460-46005

9046712056

main90467-12056

9613251100

main96132-51100

9613341101

main96133-41101

32 parts on this diagram · 6 diagrams in section
