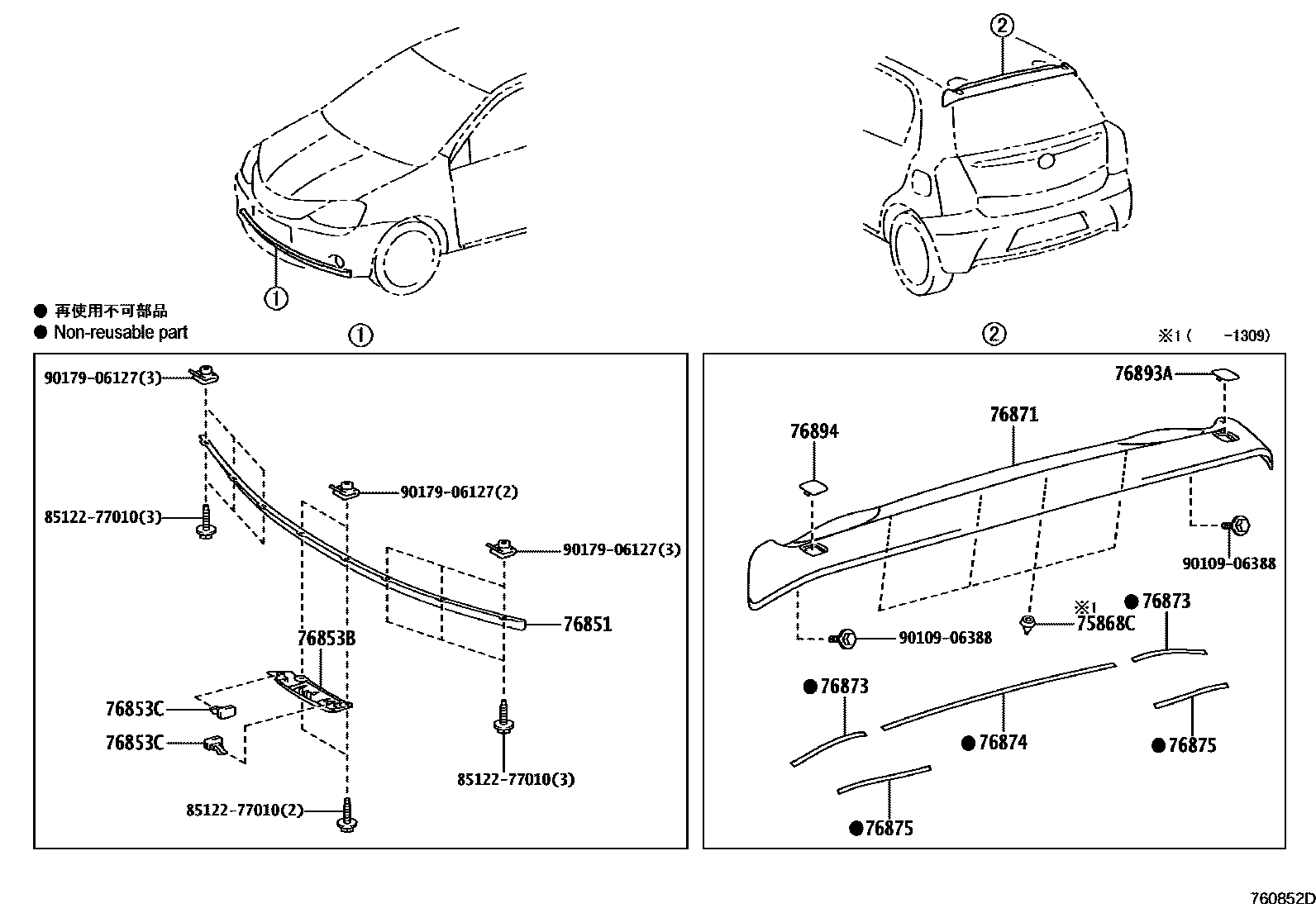

MUDGUARD & SPOILER

0001 1 0002 1

75868CCLIP, REAR SPOILER, NO.2

main75868-60020iNGK11,12..X,XLS,XS201209-201309

76851COVER, FRONT SPOILER

main76851-0D110iNGK12..X,XS;NGK11,15..X,XLS,XS;NGK12..5F..(CROSS,XLS)..AGT;NGK12..(4FC,6F)..(CROSS,XLS)201209

main76851-0D120iNGK12..(CROSS,XLS)..BZ201209-201604

76853BCOVER, FRONT SPOILER, CENTER

main76853-0D010iNGK1#..X,XLS,XS201209

76853CRETAINER, FRONT SPOILER, NO.1

main75392-35200iNGK1#..X,XLS,XS201209

76871SPOILER, REAR

main76871-0D908iNGK11,12..X,XLS,XS201209-201309

PAINT REQ.

sub76871-0D916

main76871-0D910iNGK12..CROSS201311-201802

PAINT REQ.

main76871-0D916iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201309-202103

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0D030iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202110

main76873-0D040iNGK12..CROSS201311-201802

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0D020iNGK12..6F..XS..AGT;NGK12..5F..(X,XLS,XS);NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(X,XLS)201209-202110

main76874-0D030iNGK12..CROSS201311-201802

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0D030iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202110

main76875-0D040iNGK12..CROSS201311-201802

76893ACOVER, REAR SPOILER, RH

main76893-0D904iNGK12..5F;NGK12..6F..XS..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

76894COVER, REAR SPOILER, LH

main76894-0D904iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

8512277010PLATE, WINDSHIELD WIPER MOTOR CAM

main85122-77010

9010906388

main90109-06388

9017906127

main90179-06127

13 parts on this diagram · 2 diagrams in section
