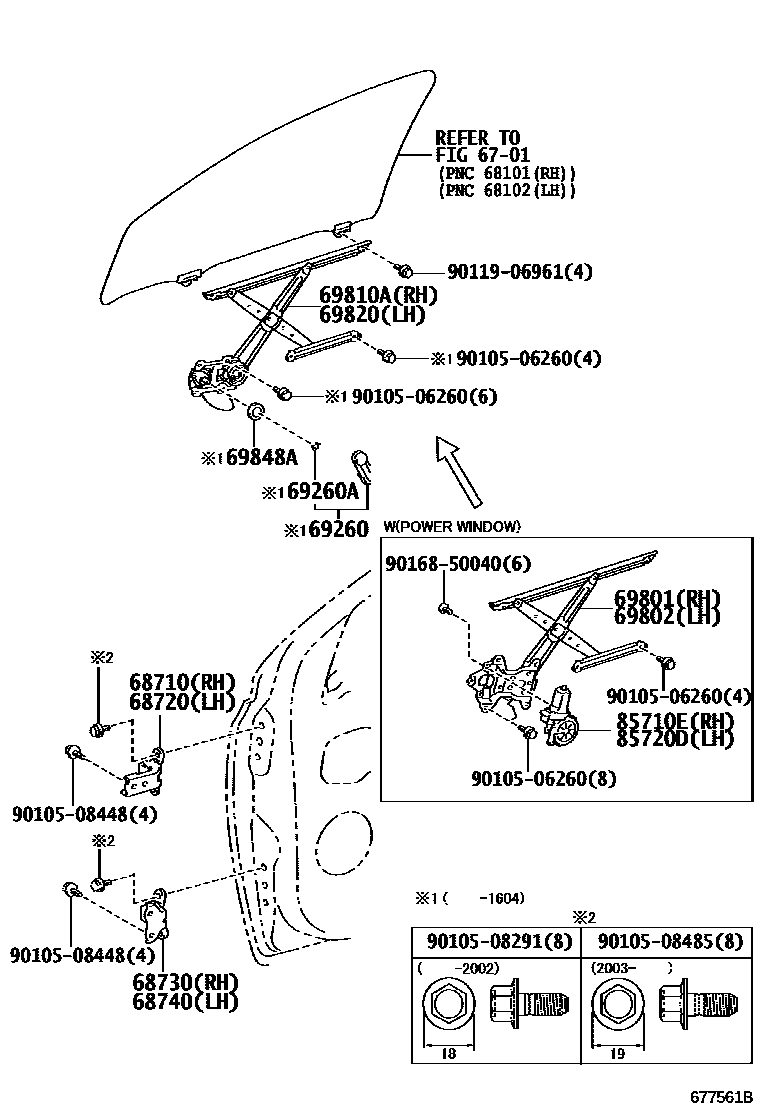

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0D030-B0iNGK11,15..STD,X201209-201309

GRAY,TRIM1#

main69260-0D030-B0iNGK11,15..STD,X201209-201309

W(*ERCDM),GRAY,TRIM1#

main69260-0D030-C0iNGK1#..STD,X201309-201604

BLACK,TRIM2#

main69260-0D030-C0iNGK1#..STD,X201309-201604

W(*ERCDM),BLACK,TRIM2#

69260ASPRING(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90524-15006iNGK1#..STD,X201209-201604

W(*ERCDM)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D150iNGK11..X201309-201604

W(*ERCDM)

main69801-0D150iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D160iNGK11..X201309-201604

W(*ERCDM)

main69802-0D160iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D270iNGK1#..STD,X201209-201604

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D280iNGK1#..STD,X201209-201604

69848ASEAL, WINDOW REGULATOR HOLE(FOR FRONT DOOR)

main69848-0D010iNGK1#..STD,X201209-201604

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D170iNGK11..X201309-201604

W(*ERCDM)

main85710-0D170iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D130iNGK11..X201309-201604

W(*ERCDM)

main85720-0D130iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

20 parts on this diagram · 1 diagram in section
