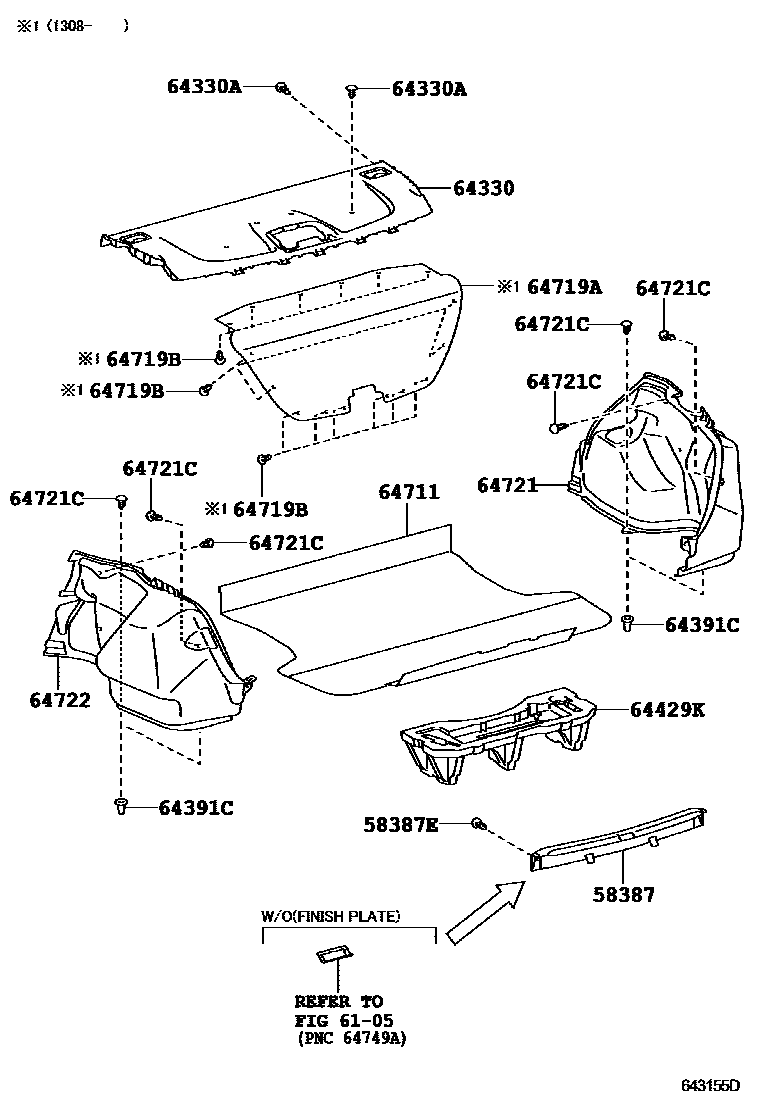

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-0D060-C0iNGK15201209-201604

BLACK,TRIM1#,2#

main58387-0D060-C0iNGK15..BZ201604-202103

BLACK,TRIM2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iNGK15201209-201610

BLACK

sub90467-08186

main90467-08186-C3iNGK15..BZ201610-202103

BLACK

sub90467-08186

6105

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D210-C0iNGK15201209-201305

BLACK,TRIM1#,2#

sub64330-0D211

main64330-0D211-C0iNGK15201306-201604

BLACK,TRIM2#

main64330-0D212-C0iNGK15..BZ201604-202103

BLACK,TRIM2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-C0iNGK15201209-202103

BLACK

sub90467-06020

64391CCAP

main67772-0D040iNGK15..(4FC,6F)..BZ201209-202103

64429KBOX, LUGGAGE ROOM

main64429-0D030iNGK15..(4FC,6F)..BZ201209-202103

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D050-C0iNGK15201209-201604

BLACK,TRIM1#,2#

main64711-0D050-C0iNGK15..BZ201604-202103

BLACK,TRIM2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D130-C0iNGK15..(4FC,6F)..BZ201308-202103

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iNGK15201308-201610

BLACK

sub90467-08186

main90467-08186-C3iNGK15..BZ201610-202103

BLACK

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-0D080-C0iNGK15201209-201305

BLACK,TRIM1#,2#

sub64721-0D081

main64721-0D081-C0iNGK15..(4FC,6F)..BZ201306-202103

BLACK,TRIM2#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iNGK15201209-201610

BLACK

sub90467-08186

main90467-08186-C3iNGK15..BZ201610-202103

BLACK

sub90467-08186

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-0D080-C0iNGK15201209-201305

BLACK,TRIM1#,2#

sub64722-0D081

main64722-0D081-C0iNGK15..(4FC,6F)..BZ201306-202103

BLACK,TRIM2#

13 parts on this diagram · 1 diagram in section
