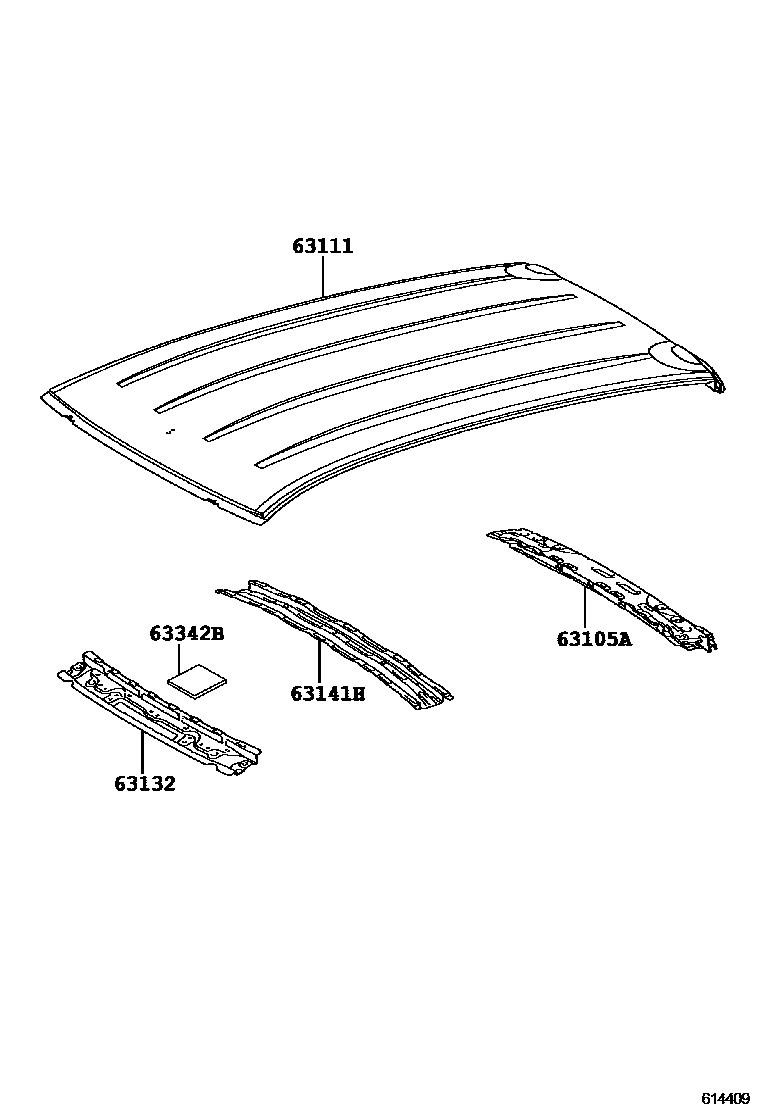

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1ROOF LACK

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0D020iNGK11,12201209-201604

main63105-0D150iNGK11..6F;NGK12..XS..BZ201604-202103

63111PANEL, ROOF

main63111-0D100iNGK15201209-201604

main63111-0D130iNGK11,12..STD,X,XLS,XS201209-201604

main63111-0D160iNGK12..CROSS201311-201604

main63111-0D300iNGK15..AGT201604

main63111-0D310iNGK11..6F;NGK12..XS..BZ201604-202103

main63111-0D320iNGK12..CROSS201604-201802

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

63342BPAD, ROOF SILENCER, NO.2

main63341-0D080iNGK1#201209-201307

main63341-0D081iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201307-202103

5 parts on this diagram · 3 diagrams in section
